4-47

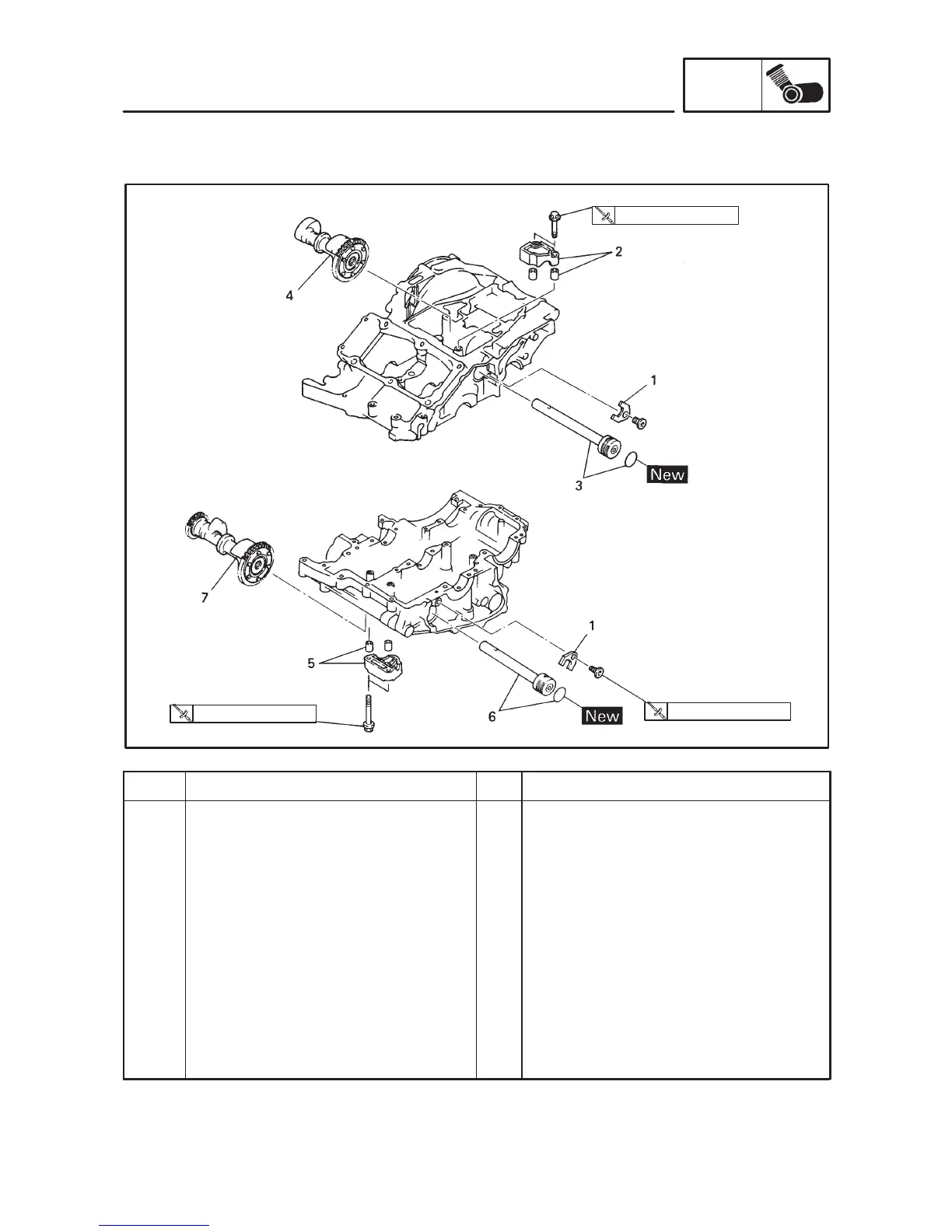

OIL PAN

ENG

Order

Job name/Part name Q’ty Remarks

Balancer weight removal

Engine oil

Engine

Piston

Shift shaft

A.C. magneto

Oil pump assembly

Oil tank

Oil pan

Plate

Rear balancer holder/Dowel pin

Rear balancer shaft/O-ring

1/2

1/1

Remove the parts in the order below.

Refer to “ENGINE OIL REPLACE-

MENT” in CHAPTER 3.

Refer to “ENGINE ASSEMBLY”.

Refer to “CYLINDER AND PISTON”.

Refer to “SHIFT SHAFT”.

Refer to “A.C. MAGNETO AND

STARTER WHEEL GEAR”.

Refer to “OIL PUMP”.

Refer to “OIL TANK”.

Refer to “OIL PAN”.

Refer to “INSTALLATION”.

10 Nm (1.0 mkg)

12 Nm (1.2 mkg)

BALANCER
