1-3

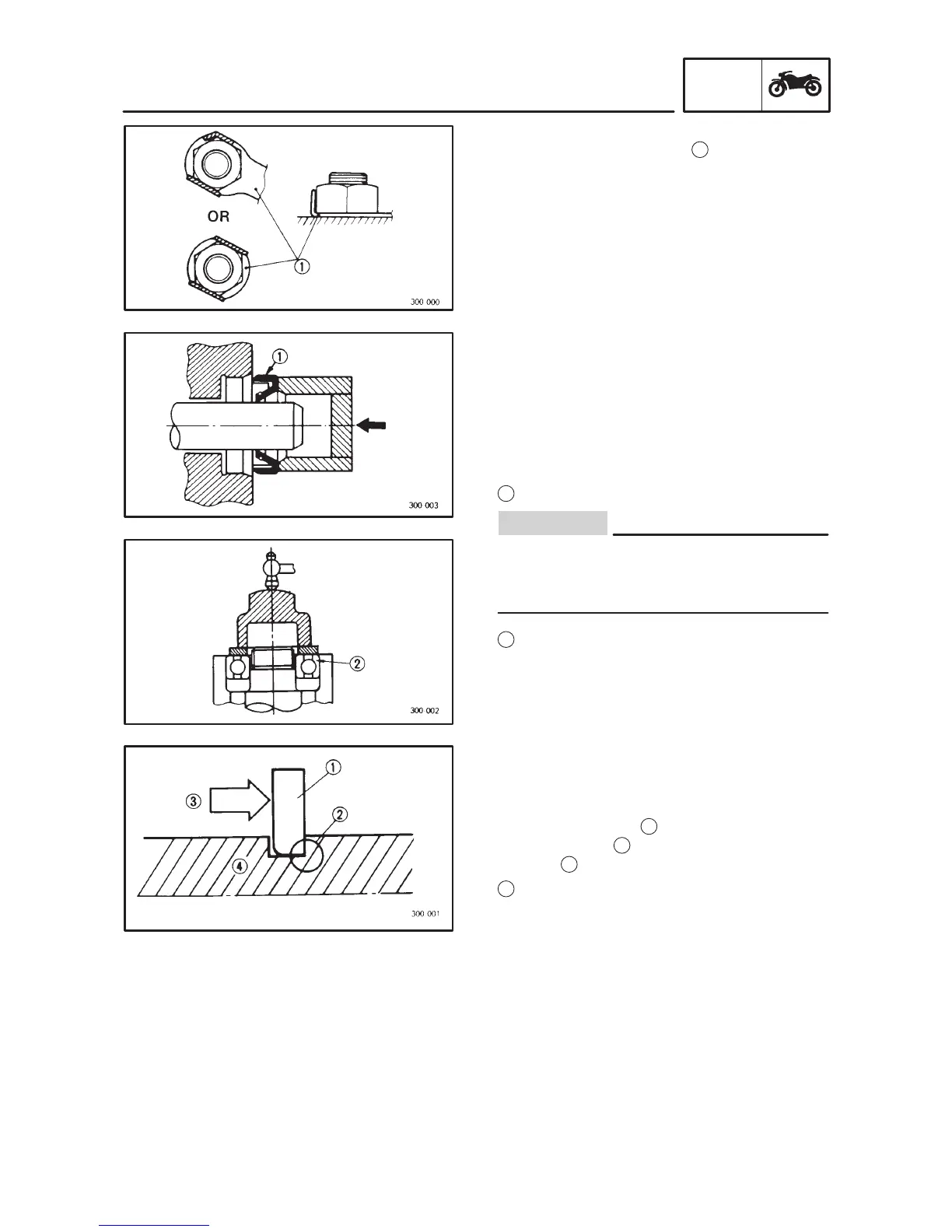

IMPORTANT INFORMATION

GEN

INFO

CAUTION:

LOCK WASHERS/PLATES AND COTTER PINS

1. All lock washers/plates

1 and cotter pins

must be replaced when they are removed.

Lock tab(s) should be bent along the bolt or nut

flat(s) after the bolt or nut has been properly

tightened.

BEARINGS AND OIL SEALS

1. Install the bearing(s) and oil seal(s) with their

manufacturer’s marks or numbers facing out-

ward. (In other word, the stamped letters must

be on the side exposed to view.) When instal-

ling oil seal(s), apply a light coating of light-

weight lithium base grease to the seal lip(s). Oil

the bearings liberally when installing.

Oil seal

Do not use compressed air to spin the bear-

ings dry. This causes damage to the bearing

surfaces.

Bearing

CIRCLIPS

1. All circlips should be inspected carefully before

reassembly. Always replace piston pin clips af-

ter one use. Replace distorted circlips. When

installing a circlips

1 , make sure that the sharp

edged corner

2 is positioned opposite to the

thrust

3 it receives. See the sectional view.

Shaft
