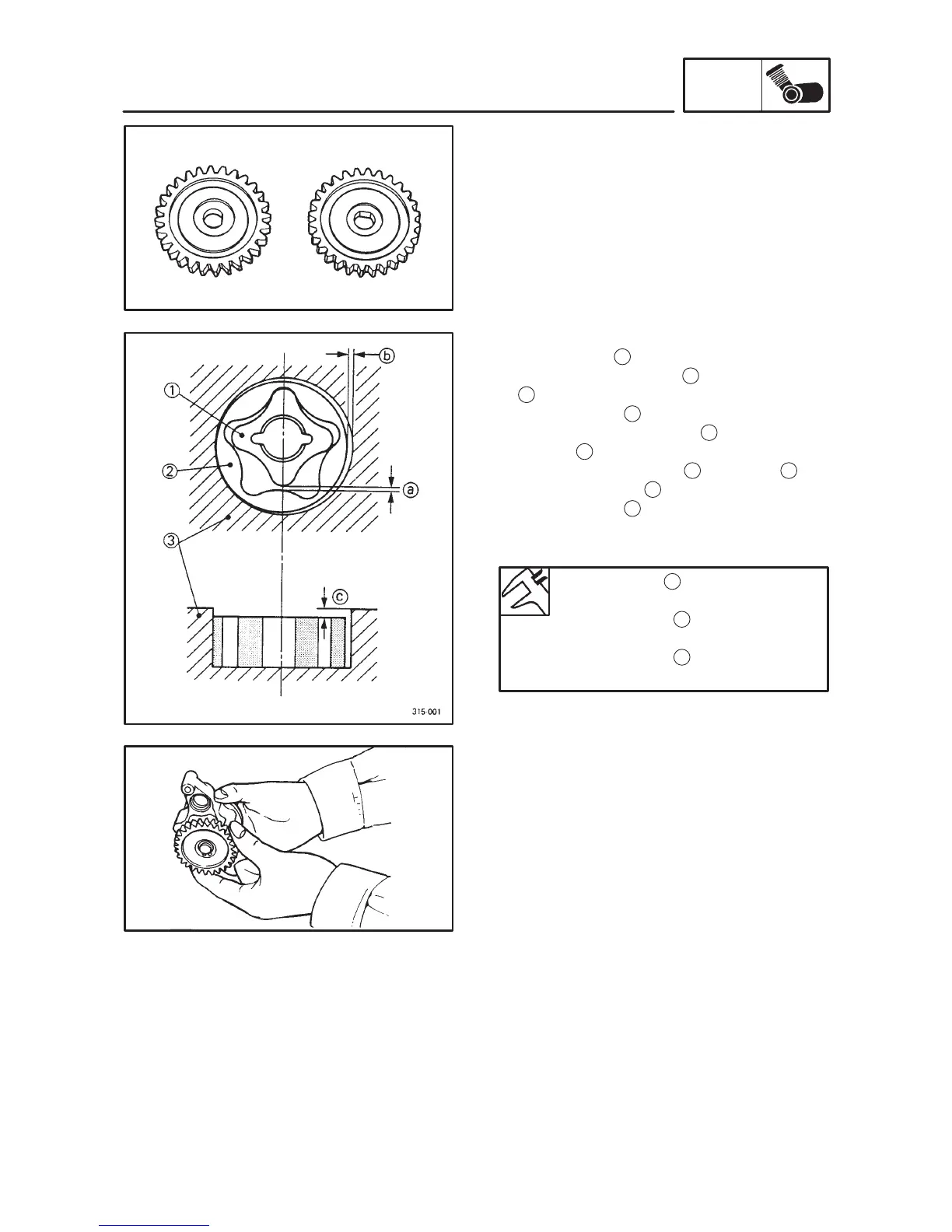

OIL PUMP
ENG
INSPECTION
1. Inspect:
 Oil pump driven gears
Wear/Cracks/Damage  Replace.
2. Measure:
 Tip clearance
a
(between the inner rotor
1 and the outer rotor
2)
 Side clearance
b
(between the outer rotor
2 and the pump
housing
3)
(between the inner rotor
1 /outer rotor 2 and
the pump housing
3)
 Side clearance
c
Out of specification  Replace the oil pump as-
sembly.
Tip clearance
a
:
0  0.12 mm
Side clearance
b :
0.03  0.08 mm
Side clearance
c
:
0.03  0.08 mm
3. Check:
 Oil pump operation
Unsmooth  Repeat steps 1 and 2 or replace
defective parts.
