Yamaha TDM850 1996 User Manual

4-23

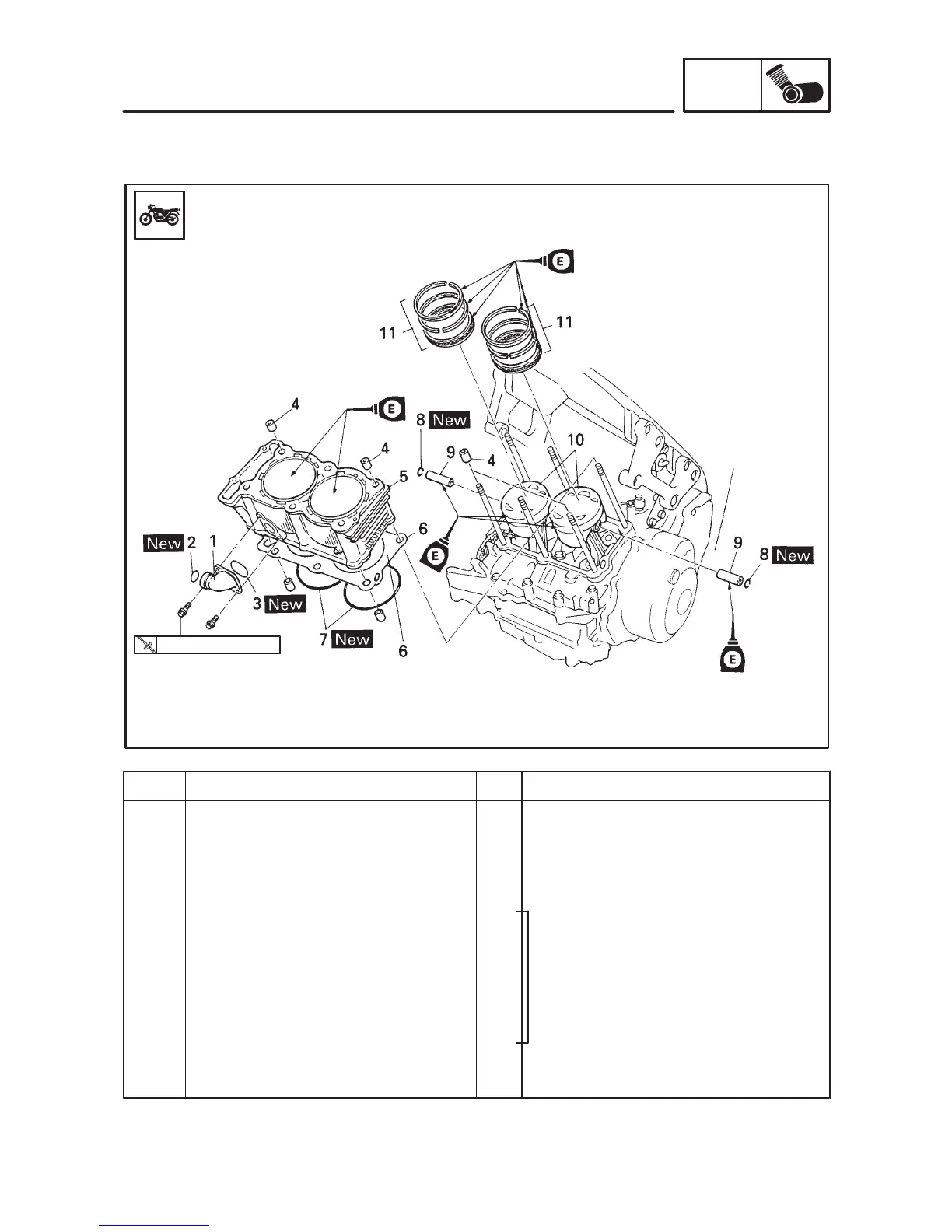

CYLINDER AND PISTON
ENG
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
Cylinder and piston removal
Cylinder head
Joint
O-ring
O-ring
Dowel pin
Cylinder
Cylinder gasket
O-ring
Circlip
Piston pin
Piston
Piston ring set
1
1
1
4
1
1
2
4
2
2
2
Remove the parts in the order below.
Refer to “CYLINDER HEAD”.
For installation, reverse the removal
procedure.
Refer to “REMOVAL”, and
“INSTALLATION”.
10 Nm (1.0 mkg)
CYLINDER AND PISTON

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
