Yamaha TDM850 1996 User Manual

7-5
FRONT WHEEL AND BRAKE DISCS
CHAS
NOTE:
58 Nm (5.8 mkg)
NOTE:
19 Nm (1.9 mkg)
40 Nm (4.0 mkg)
ASSEMBLY
Reverse the “DISASSEMBLY” procedure.
Note the following points.
1. Lubricate:
 Bearings
 Oil seals (lips)
Recommended lubricant:
Lithium soap base grease
INSTALLATION
Reverse the “REMOVAL” procedure.
Note the following points.
1. Lubricate:
 Front wheel axle
 Drive/Driven gear (speedometer)
Recommended lubricant:
Lithium soap base grease

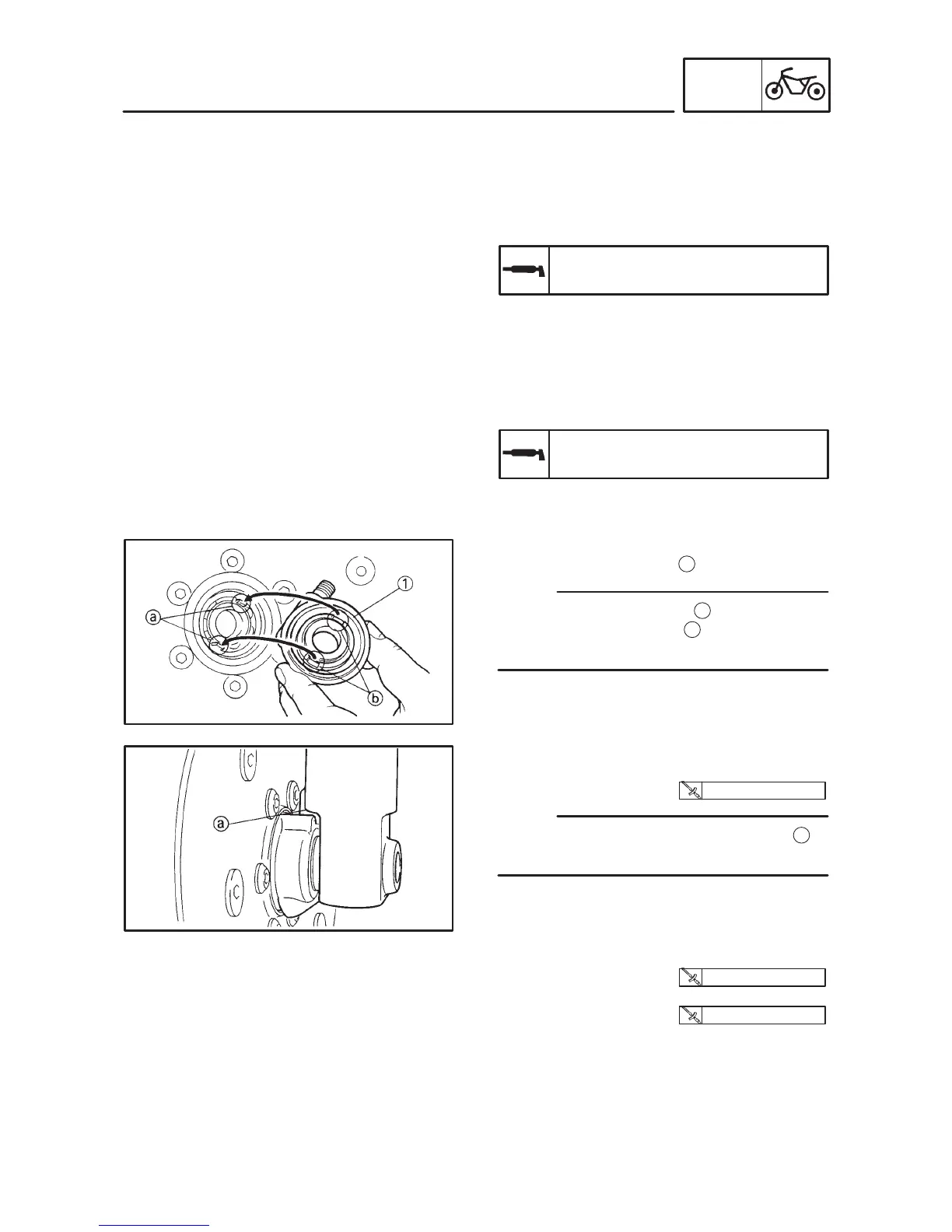

2. Install:
 Speedometer gear unit
1
Be sure that two projections
a
inside the wheel
hub mesh with the two slots
b in the gear unit as-
sembly.
3. Install:
 Front wheel
 Front wheel axle
Be sure that the projection (torque stopper)
a
of
the gear unit housing is positioned correctly.
4. Install:
 Pinch bolt
 Brake caliper (left/right) and cable guide

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
