Yamaha TDM850 1996 User Manual

7-41

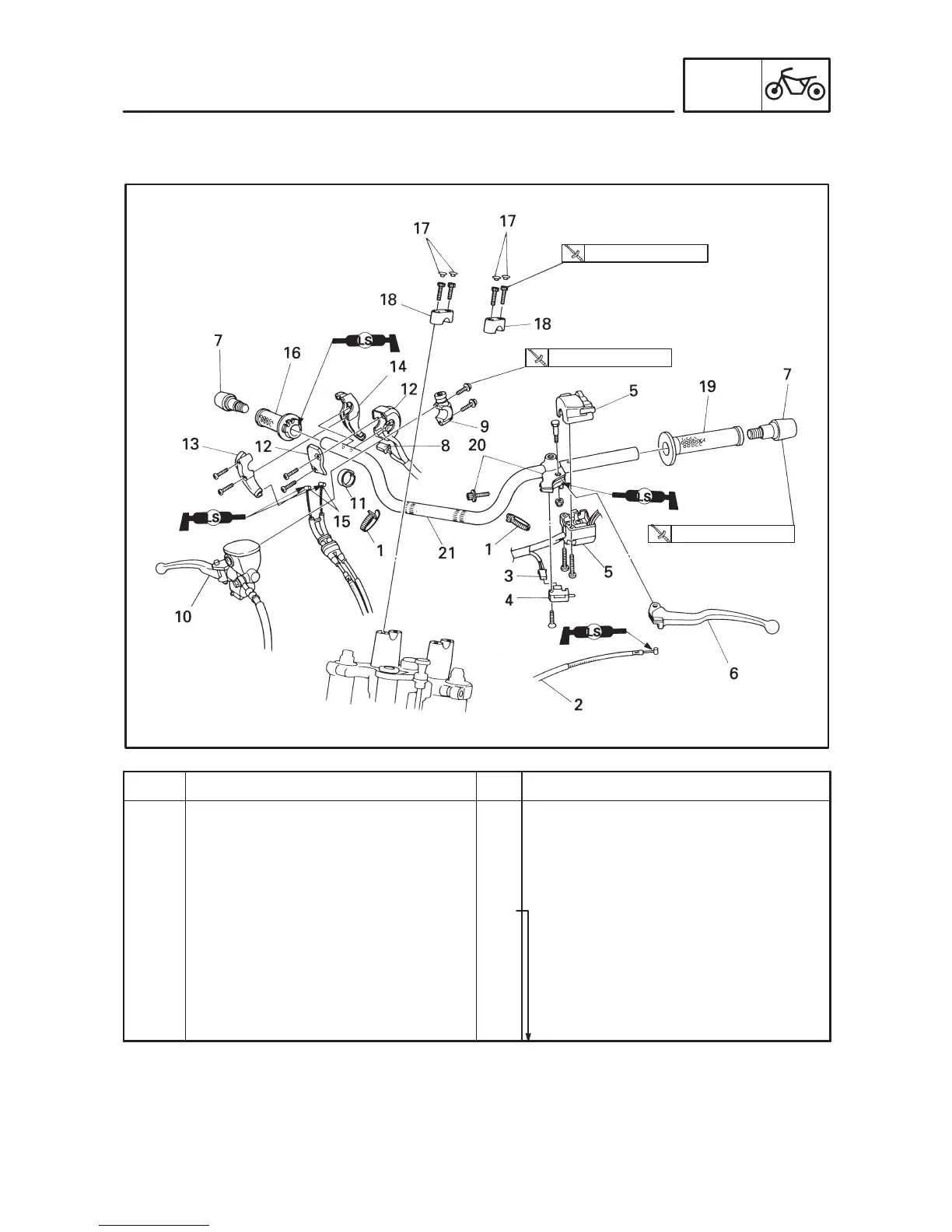

HANDLEBAR
CHAS
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
Handlebar removal
Band
Clutch cable
Clutch switch lead coupler
Clutch switch
Left handlebar switch
Clutch lever
Grip end
Front brake switch lead coupler
Master cylinder bracket
Master cylinder assembly
Collar
2
1
1
1
1
1
2
1
1
1
1
Remove the parts in the order below.
Disconnect
Disconnect
Refer to “INSTALLATION”.
23 Nm (2.3 mkg)
9 Nm (0.9 mkg)
26 Nm (2.6 mkg)
HANDLEBAR

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
