7-14
FRONT AND REAR BRAKE
CHAS
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7

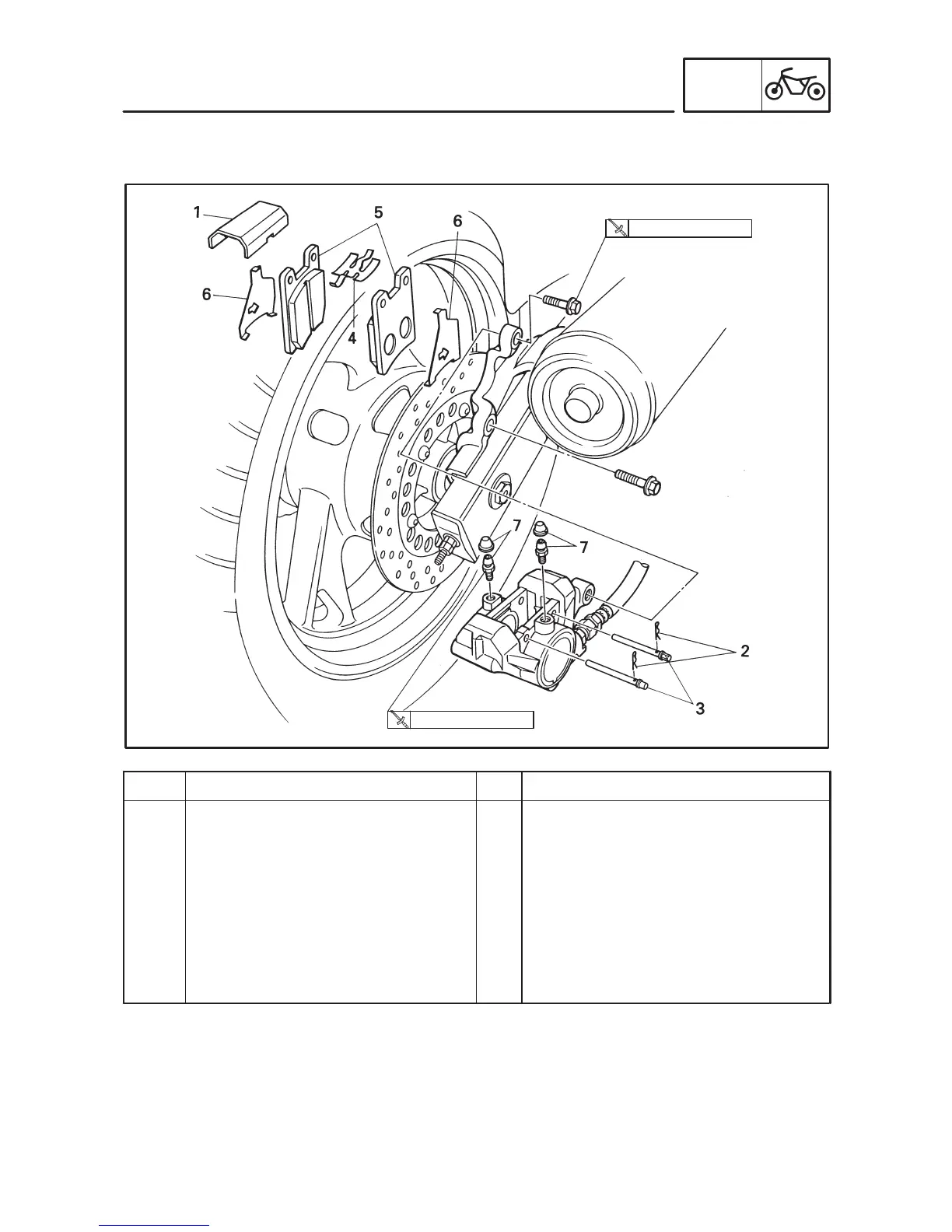

Rear brake pad removal
Pad cover
Retaining clip
Retaining pin
Pad spring
Brake pad
Pad shim (left/right)
Bleed screw
1
2
2
1
2
1/1
2
Remove the parts in the order below.
For installation, reverse the removal
procedure.
40 Nm (4.0 mkg)
6 Nm (0.6 mkg)
REAR BRAKE PAD

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
