8-2

SWITCH INSPECTION

ELEC

NOTE:

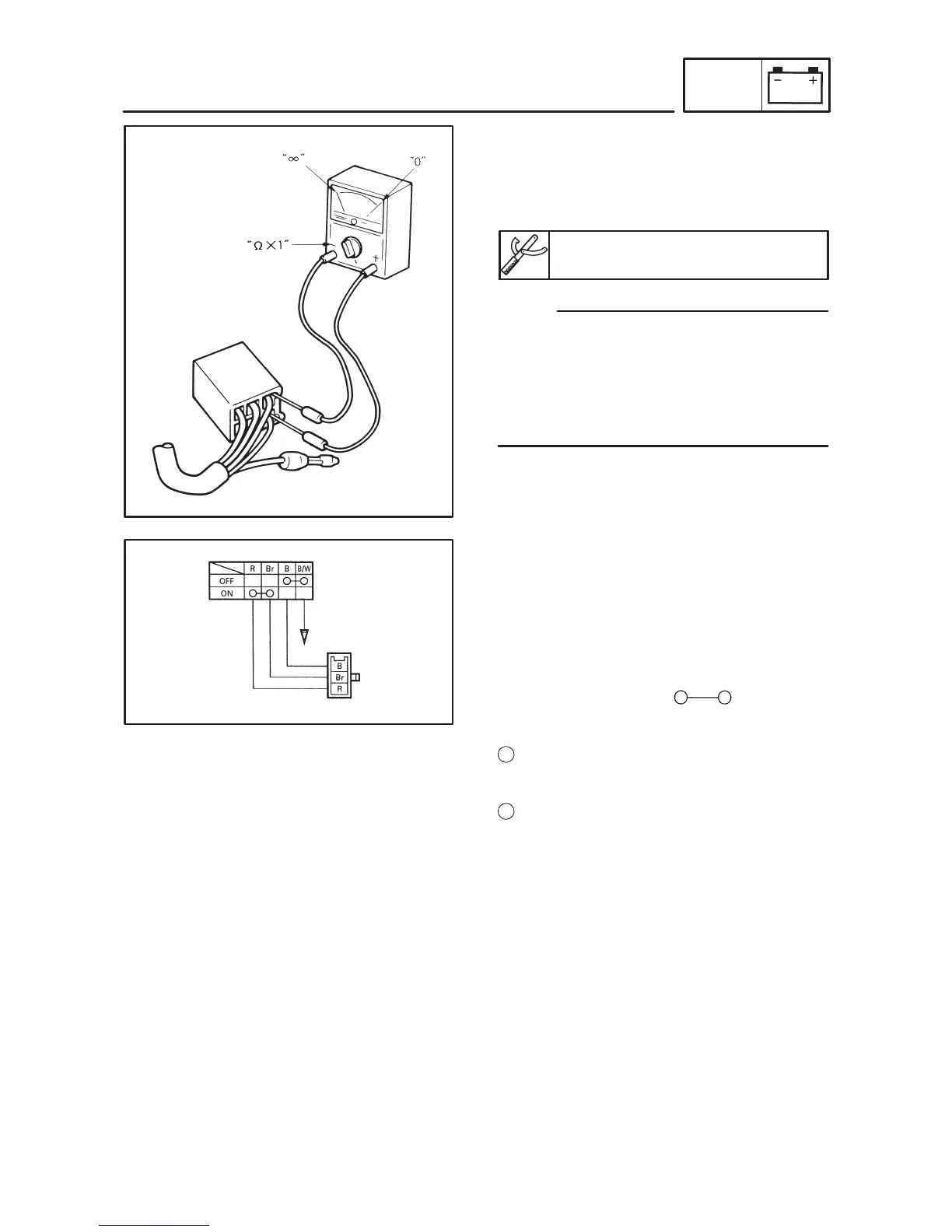

SWITCH INSPECTION

Use a pocket tester to check the terminals for con-

tinuity. If the continuity is faulty as any point, re-

place the switch.

Pocket tester:

90890-03112

 Set the pocket tester to “0” before starting the

test.

 The pocket tester should be set to the “ 1” Ω

range when testing the switch for continuity.

 Turn the switch on and off a few times when

checking it.

INSPECTING A SWITCH SHOWN IN

THE MANUAL

The terminal connections for switches (main

switch, handlebar switch, engine stop switch, light

switch, etc.) are shown in a chart similar to the one

on the left.

This chart shows the switch positions in the col-

umn and the switch lead colors in the top row.

For each switch position, “

” indicates the

terminals with continuity.

The example chart shows that:

1 There is continuity between the “Black and

Black/White” leads when the switch is set to

“OFF”.

2 There is continuity between the “Red and

Brown” leads when the switch is set to “ON”.
