Yamaha TDM850 1996 User Manual

4-5

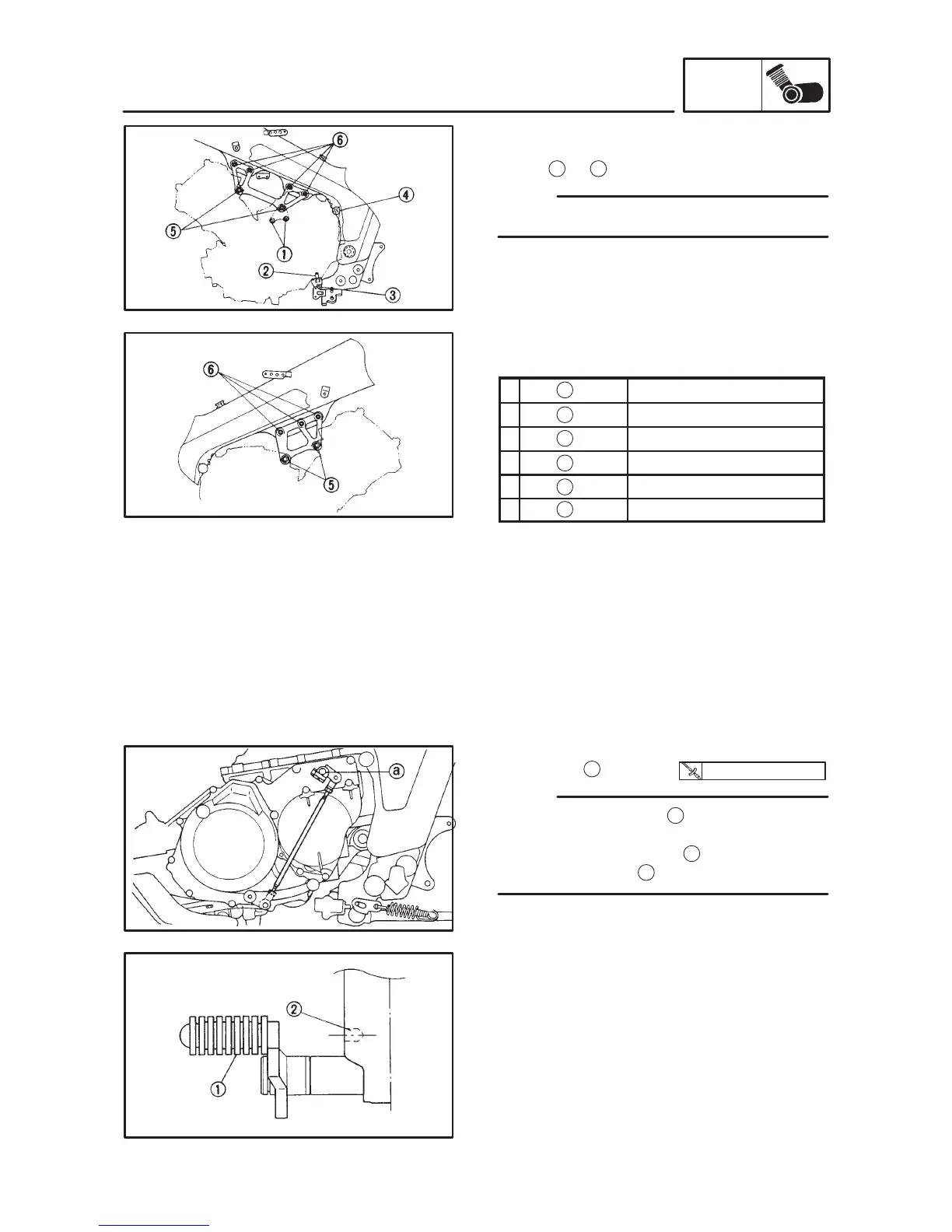

ENGINE ASSEMBLY
ENG
NOTE:
1
2
3
4
5
6
12 Nm (1.2 mkg)
NOTE:
INSTALLATION
1. Install:
 Bolt
1 X 6
Do not fully tighten.
2. Tighten:
 Tighten the bolts in the order below.
1 Bolt 30 Nm (3.0 mkg)
2 Bolt 30 Nm (3.0 mkg)
3 Bolt 64 Nm (6.4 mkg)
4 Bolt 89 Nm (8.9 mkg)
5 Bolt 60 Nm (6.0 mkg)
6 Bolt 30 Nm (3.0 mkg)
3. Install:
 Shift arm
1
 Align the punched mark
a
on the shift shaft with
the slot on the shift arm.
 The top of the shift pedal
1 should be aligned
with the crankcase
2.
