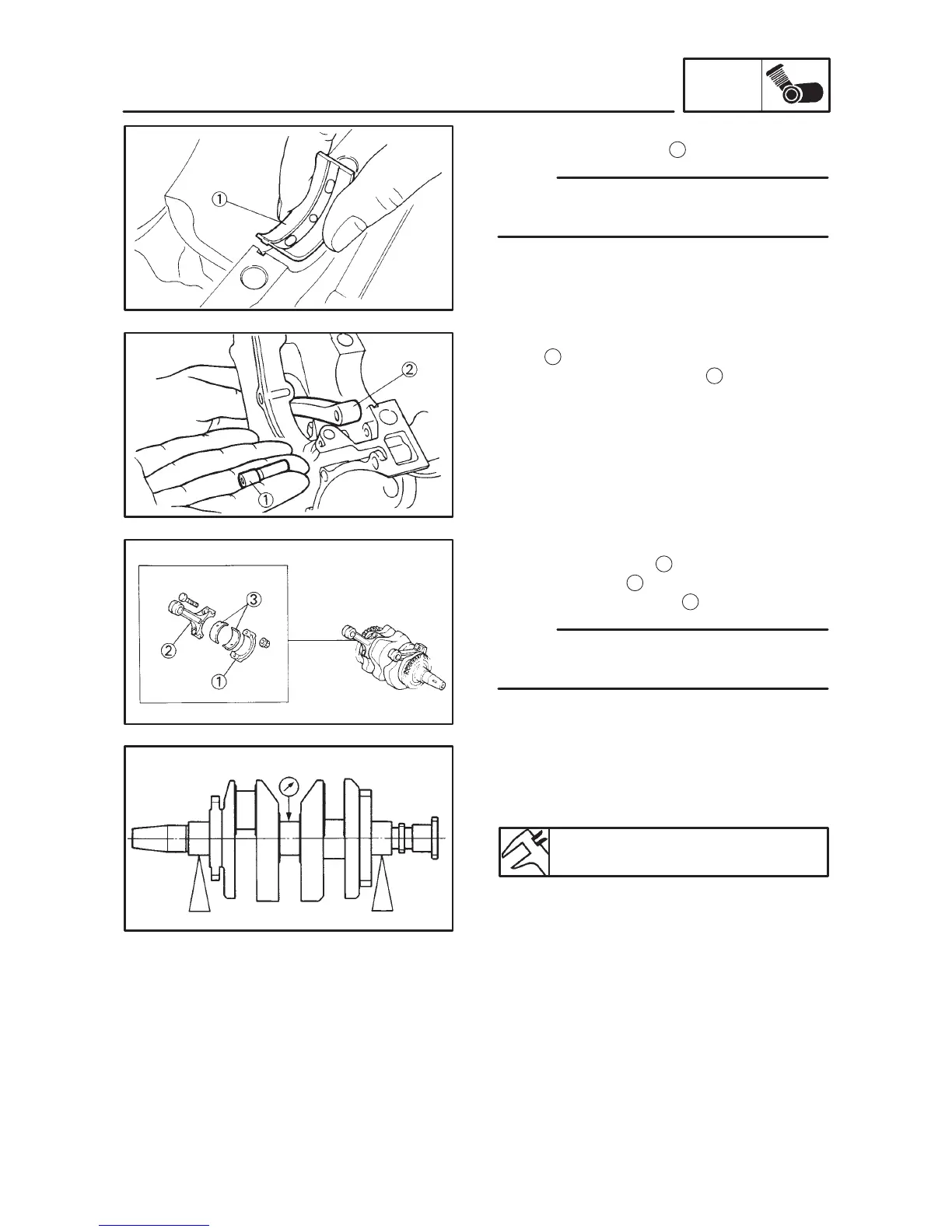

CRANKSHAFT

ENG

NOTE:

4. Remove:

 Main journal bearings

Identify each plain bearing position very carefully

so that it can be reinstalled in its original place.

5. Remove:

 Pin

 Timing chain guide (intake)

6. Remove:

 Connecting rod cap

 Connecting rod

 Connecting rod bearing

Identify each bearing position very careful so that

it can be reinstalled in its original place.

INSPECTION

1. Measure:

 Runout (crankshaft)

Out of specification  Replace.

Runout:

Less than 0.035 mm

2. Inspect:

 Main journal surfaces

 Crank pin surfaces

 Bearing surfaces

Wear/Scratches  Replace.
