Yamaha TDM850 1996 User Manual

7-37

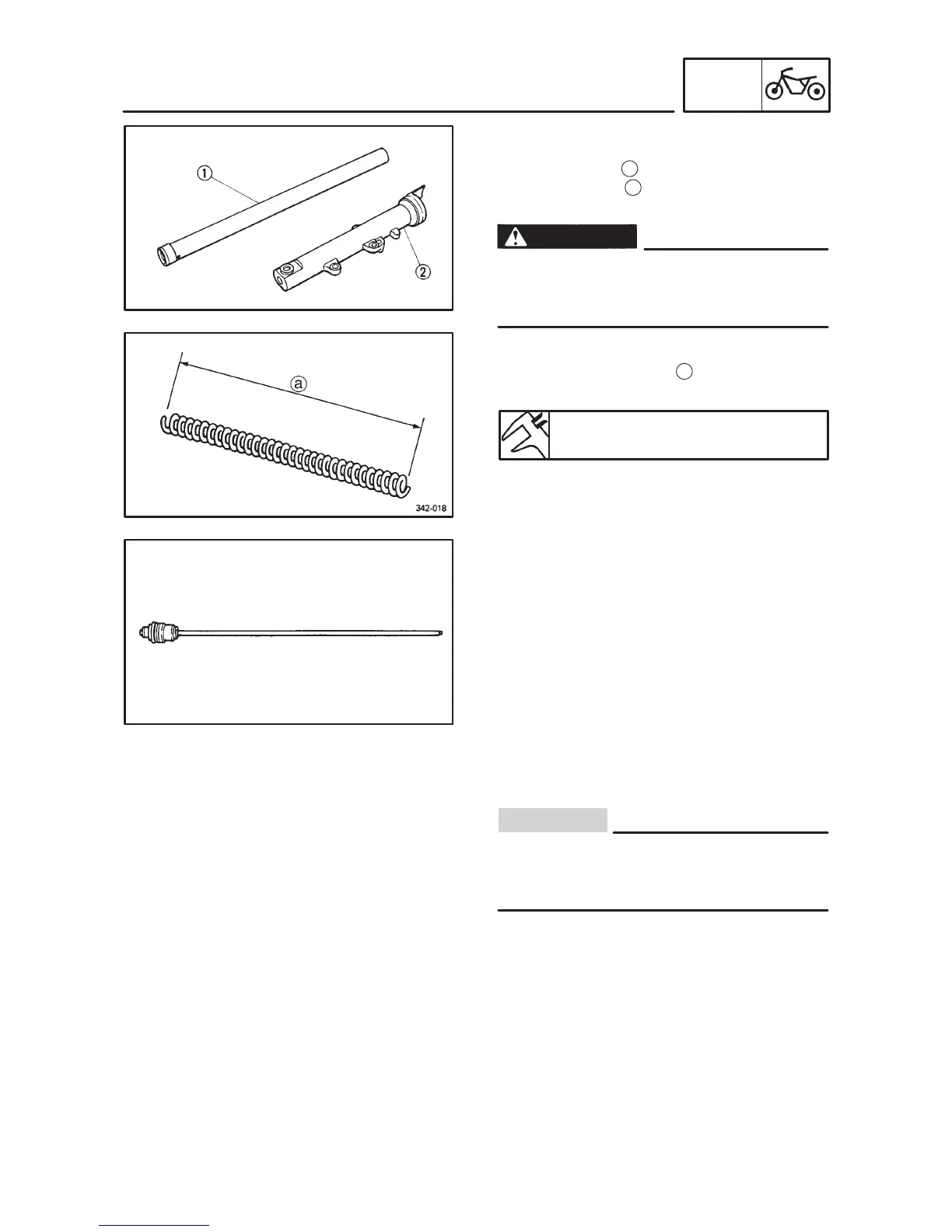

FRONT FORK
CHAS
WARNING
CAUTION:
INSPECTION
1. Inspect:
 Inner fork tube
1
 Outer fork tube
2
Scratches/Bends/Damage  Replace.
Do not attempt to straighten a bent inner fork
tube as this may dangerously weaken the
tube.
2. Measure:
 Fork spring free length
a
Over specified limit  Replace.
Fork spring free length (limit):
500 mm
3. Inspect:
 Cap bolt
Bend/Damage  Replace.
ASSEMBLY
1. Install:
 Damper rod
Allow the damper rod to slide slowly down the
inner tube until it protrudes from the bottom,
being careful not to damage the inner tube.

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
