3-4

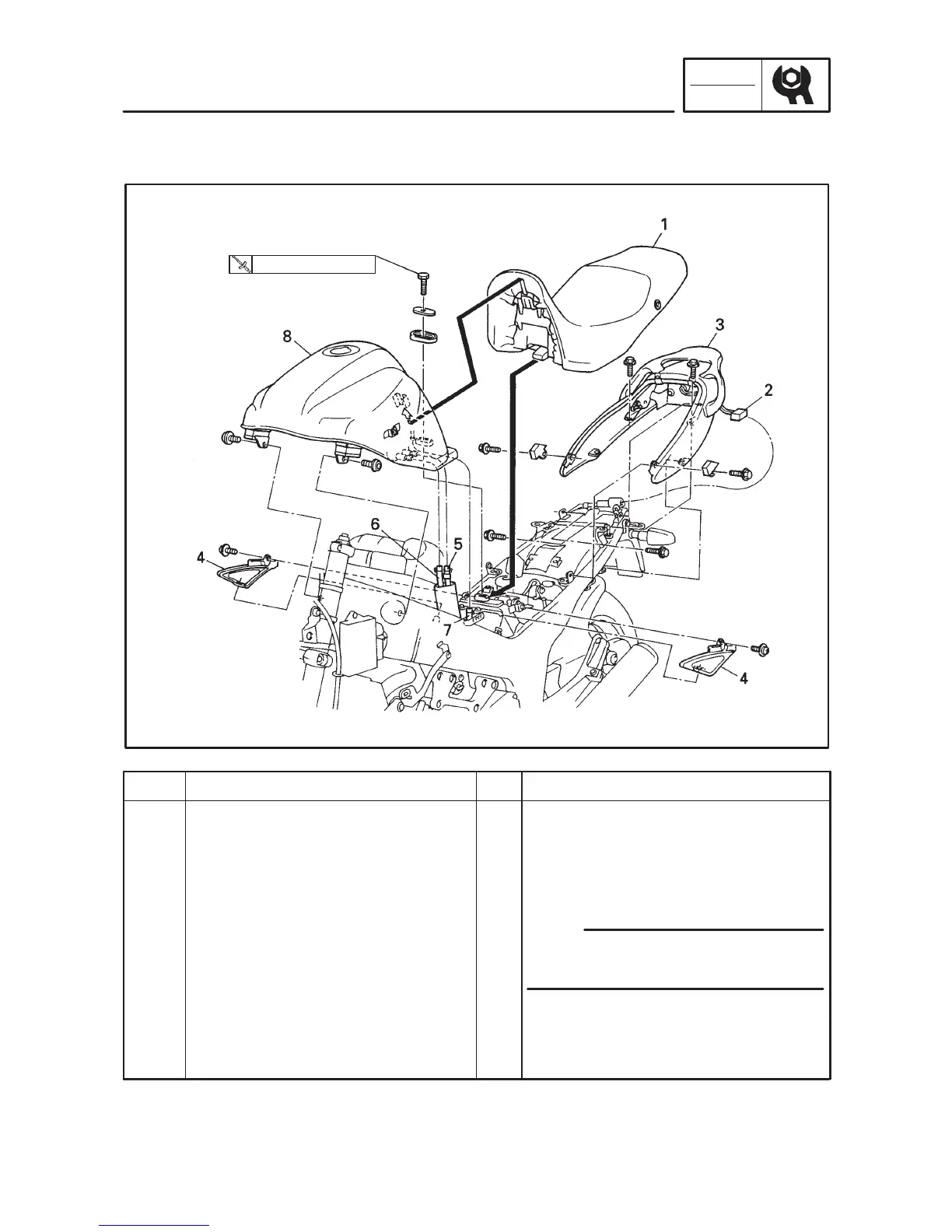

COWLINGS, SEAT, TAIL COVER AND FUEL TANK

INSP

ADJ

Order

Job name/Part name Q’ty Remarks

Seat, tail cover and fuel tank removal

Side cowling

Seat

Taillight lead coupler

Tail cover

Side cover

Fuel hose (RES)

Fuel hose (ON)

Fuel tank breather hose

Fuel tank

Remove the parts in the order below.

Refer to “COWLINGS”.

Disconnect

Set the fuel cock (fuel tank side) to “OFF”

before disconnecting the fuel hoses.

For installation, reverse the removal

procedure.

NOTE:

16 Nm (1.6 mkg)

SEAT, TAIL COVER AND FUEL TANK
