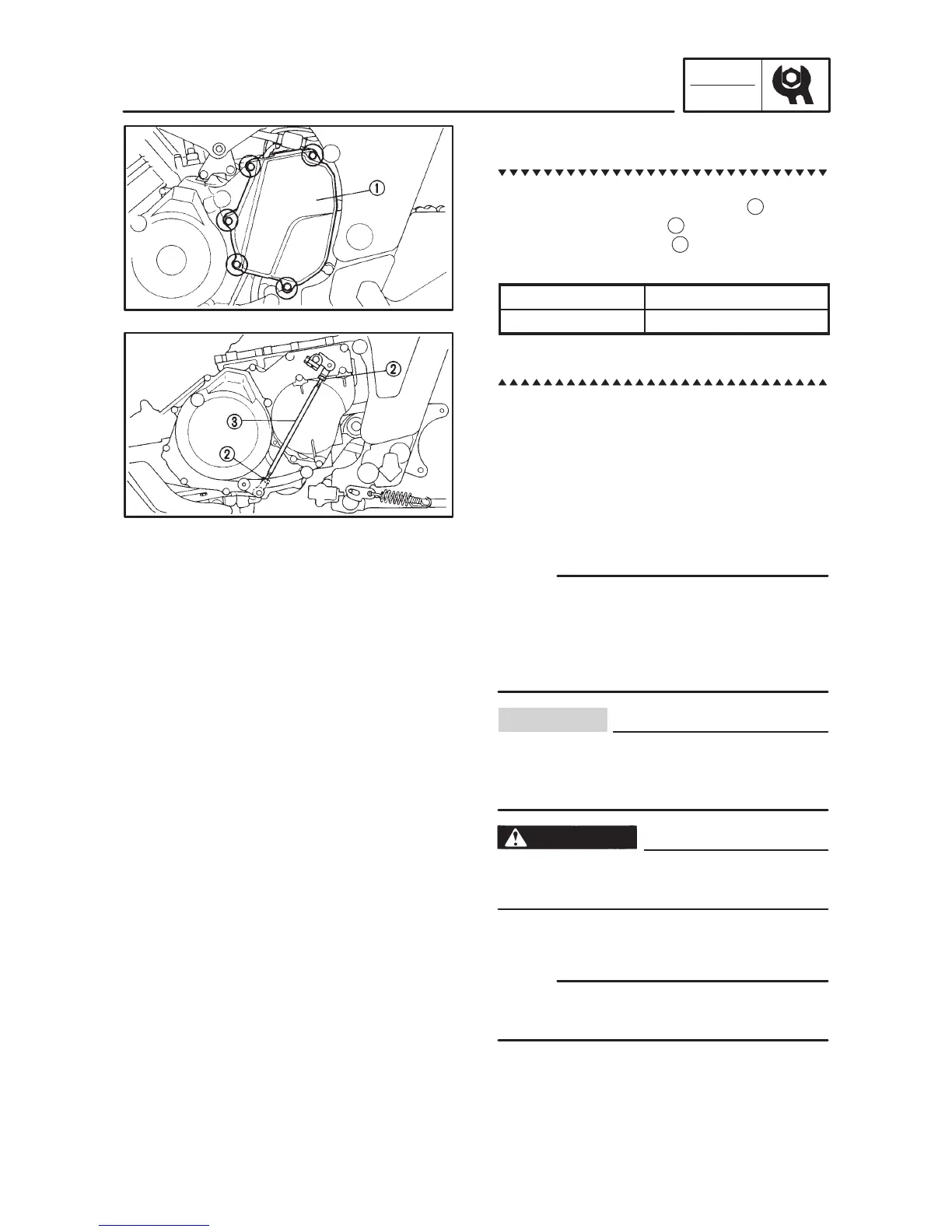

3-39

SHIFT PEDAL ADJUSTMENT/

DRIVE CHAIN SLACK ADJUSTMENT

INSP

ADJ

NOTE:

CAUTION:

WARNING

NOTE:

2. Adjust:

 Change pedal position

Adjustment steps:

 Remove the drive sprocket cover

 Loosen both locknuts

 Turn the shift pedal link

3 in or out to obtain the

correct pedal position.

Turnning in: Shift pedal is raised.

Turnning out: Shift pedal is lowered.

 Tighten both locknuts.

 Install the drive sprocket cover.

DRIVE CHAIN SLACK ADJUSTMENT

Before checking and/or adjusting, rotate the rear

wheel several revolutions and check slack at sev-

eral points to find the tightest point. Check and/or

adjust the chain slack with the rear wheel is in this

“tightest” position.

Too little chain slack will overload the engine

and other vital parts; keep the slack within the

specified limits.

Securely support the motorcycle so there is

no danger of it falling over.

1. Place the motorcycle on a level place, and hold

it in an upright position.

Both wheels should be on the ground without a rid-

er on the motorcycle.
