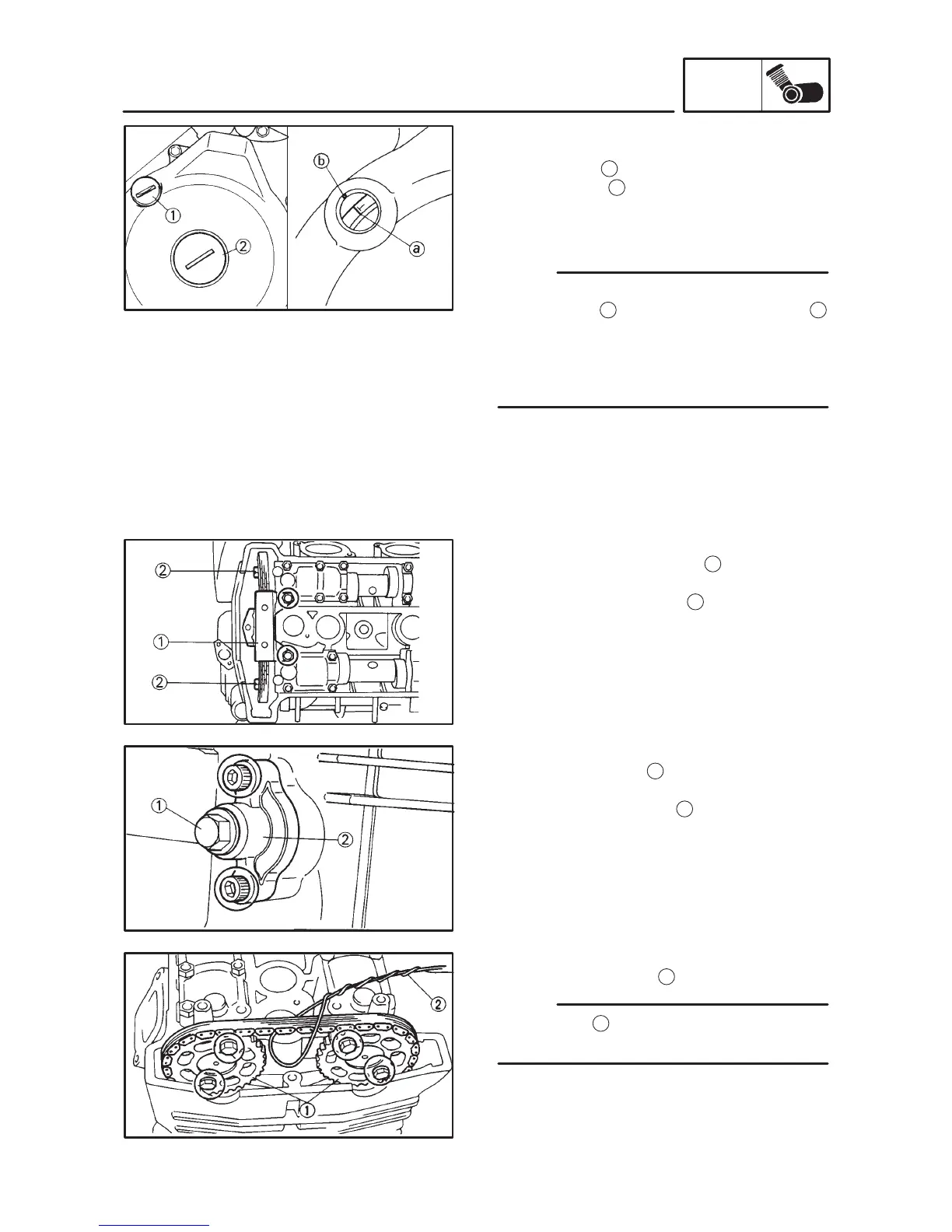

4-8
CAMSHAFT
ENG
NOTE:
NOTE:
REMOVAL
1. Remove:
 Timing plug
1
 Straight plug
2
2. Align:
 “T” mark
(with stationary pointer)
 Turn the crankshaft counterclockwise and align
the “T” mark
a
with the stationary pointer
b
when #1 piston is at TDC on compression stroke.
 The #1 piston is in compression stroke TDC
when the cam lobes are turned away from each
other.
3. Remove:
 Timing chain guide (upper)
1
4. Loosen:
 Camshaft sprocket bolts
2
5. Loosen:
 Tensioner cap bolt
1
6. Remove:
 Timing chain tensioner
2
7. Remove:
 Camshaft sprockets
1
Attach a wire
2 to the timing chain to prevent it
from falling into the crankcase.

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
