3-38

AIR BLEEDING (HYDRAULIC BRAKE SYSTEM)/

SHIFT PEDAL ADJUSTMENT

INSP

ADJ

NOTE:

WARNING

d. Place the other end of the hose into a contain-

er.

e. Slowly apply the brake lever or pedal several

times.

f. Pull the lever in or push down on the pedal.

Hold the lever or pedal in position.

g. Loosen the bleed screw and allow the lever or

pedal to travel towards its limit.

h. Tighten the bleed screw when the lever or ped-

al limit has been reached, then release the le-

ver or pedal.

i. Repeat steps (e) to (h) until all air bubbles have

disappeared from the fluid.

j. Tighten the bleed screw.

Bleed screw:

6 Nm (0.6 mkg)

If bleeding is difficult, it may be necessary to let the

brake fluid settle for a few hours.

Repeat the bleeding procedure when the tiny

bubbles in the system have disappeared.

k. Add brake fluid to proper level.

Refer to “BRAKE FLUID LEVEL INSPEC-

TION”.

Check the operation of the brake after bleed-

ing the brake system.

EB304080

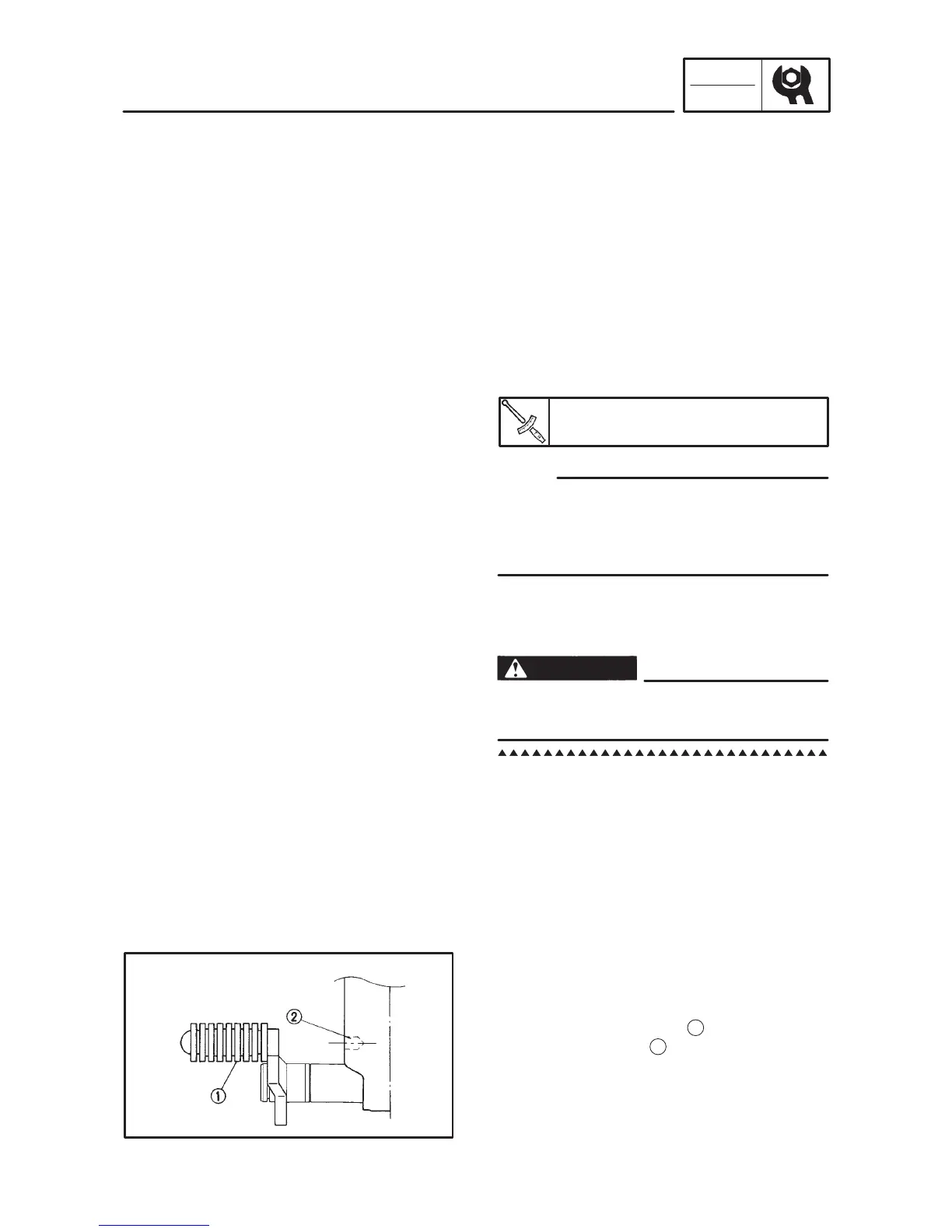

SHIFT PEDAL ADJUSTMENT

1. Check:

 Shift pedal position

The top of the shift pedal

1 should be aligned

with the crankcase
