Yamaha TDM850 1996 User Manual

4-42

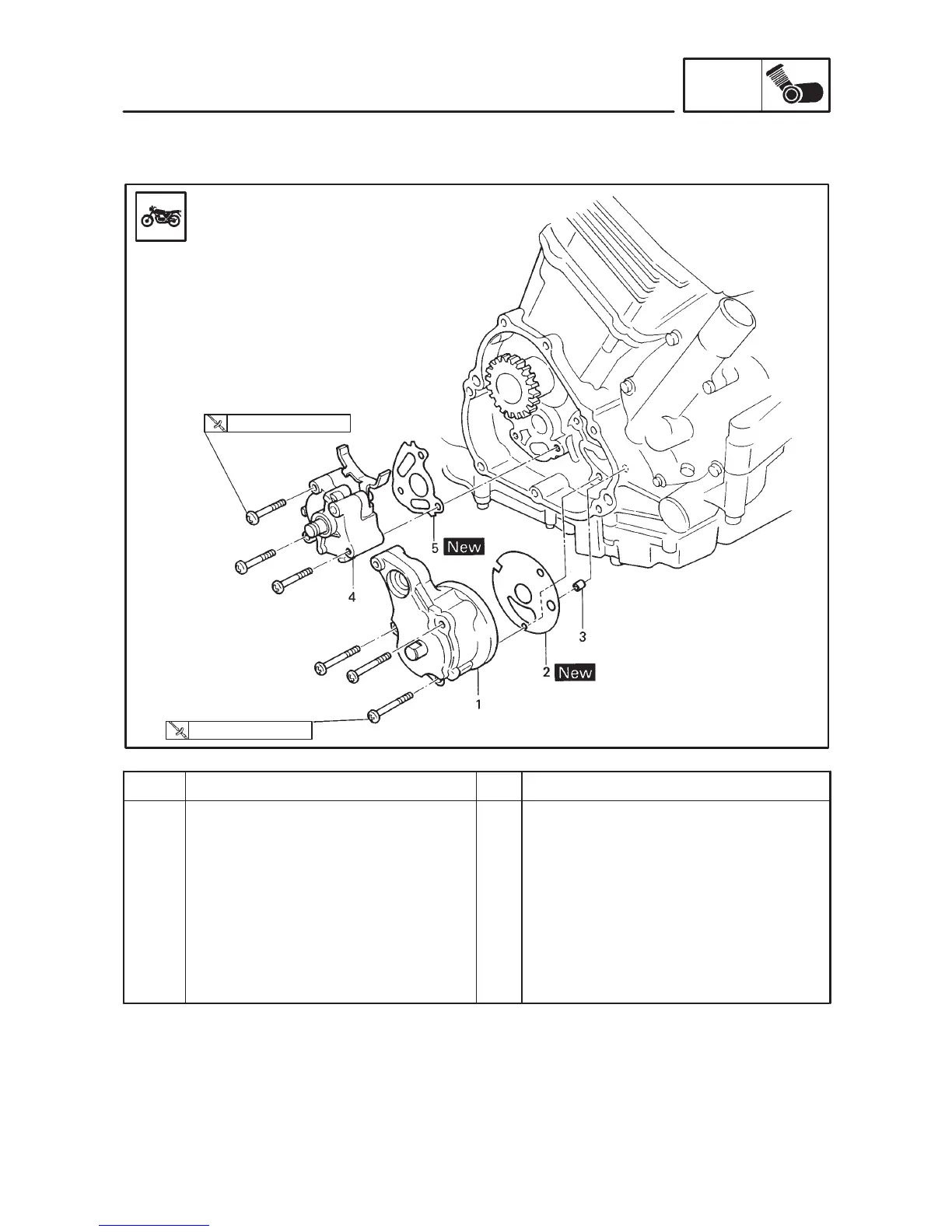

OIL PUMP
ENG
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
Oil pump removal
Oil pump assembly 1
(For pumping oil to the oil tank)
Gasket
Dowel pin
Oil pump assembly 2
(For lubricating the engine parts)
Gasket
1
1
1
1
1
Remove the parts in the order below.
For installation, reverse the removal
procedure.
6 Nm (0.6 mkg)
6 Nm (0.6 mkg)
OIL PUMP

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
