Yamaha TDM850 1996 User Manual

4-52

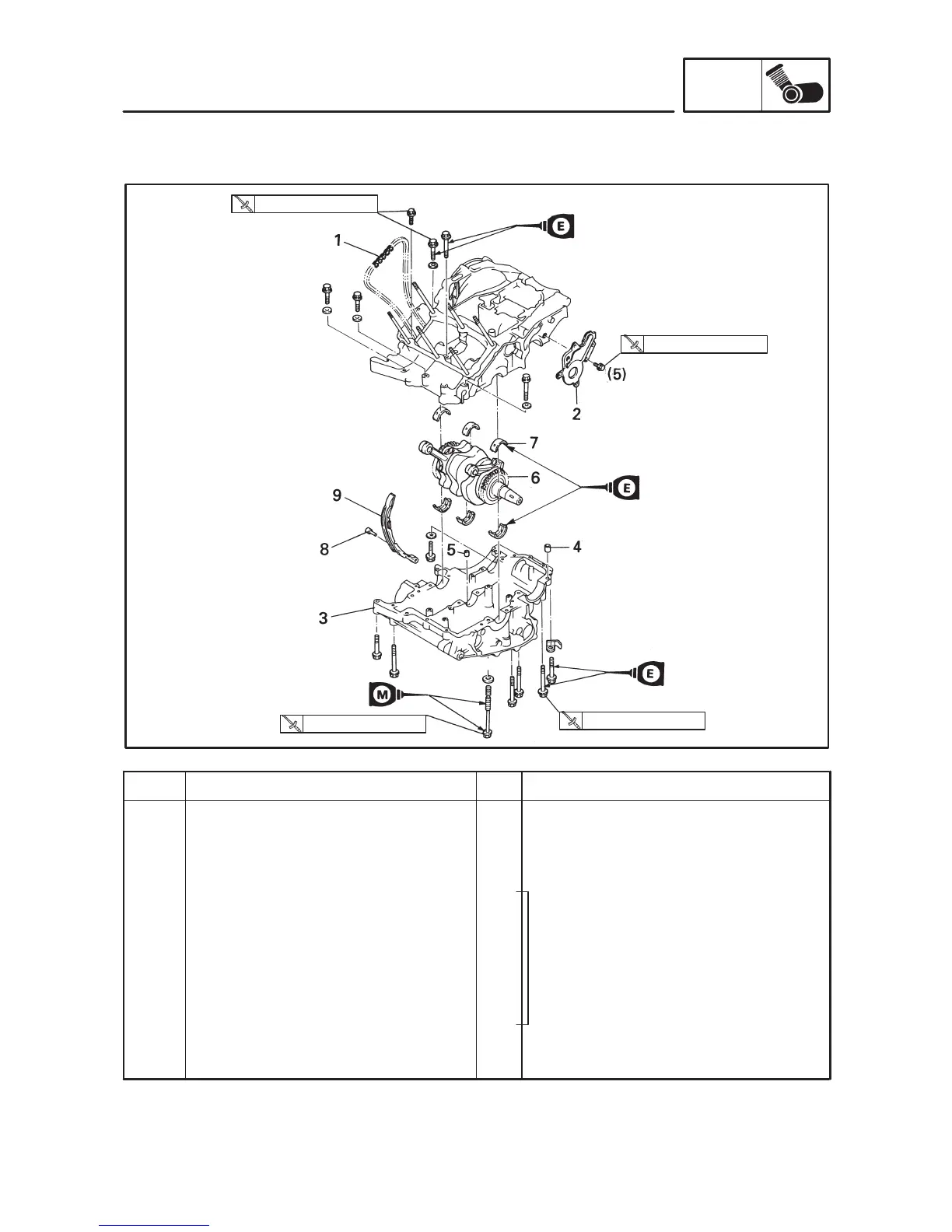

CRANKSHAFT
ENG
(M6)
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
Crankshaft removal
Balancer weight
Water pump
Timing chain
Cover plate
Lower crankcase
Dowel pin
Nozzle
Crankshaft assembly
Main journal bearing
Pin
Timing chain guide (intake)
1
1
1
1
1
1
6
1
1
Remove the parts in the order below.
Refer to “BALANCER”.
Refer to “WATER PUMP” in CHAPTER 5.
For installation, reverse the removal proce-
dure.
Refer to “REMOVAL”, and
“INSTALLATION”.
12 Nm (1.2 mkg)
10 Nm (1.0 mkg)
40 Nm (4.0 mkg)
24 Nm (2.4 mkg)
CRANKSHAFT
CRANKSHAFT ASSEMBLY

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
