4-15

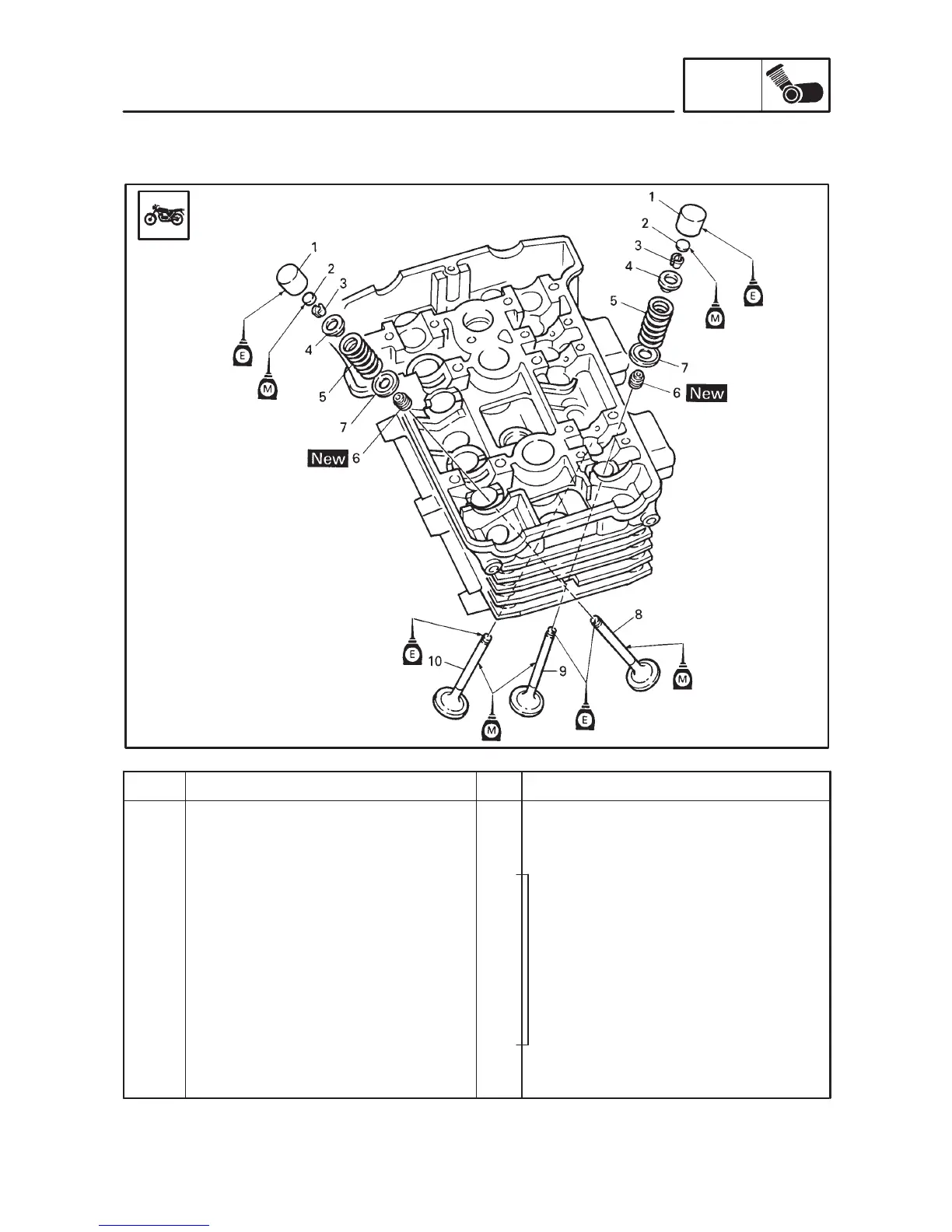

VALVE AND VALVE SPRING

ENG

Order

Job name/Part name Q’ty Remarks

Valve and valve spring removal

Cylinder head cover

Cylinder head

Valve lifter

Adjusting pad

Valve cotter

Valve retainer

Valve spring

Stem seal

Valve spring seat

Exhaust valve

Intake valve (center)

Intake valve (left and right)

Remove the parts in the order below.

Refer to “CYLINDER HEAD COVER”.

Refer to “CYLINDER HEAD”.

For installation, reverse the removal pro-

cedure.

Refer to “REMOVAL”, and

“INSTALLATION”.

VALVE AND VALVE SPRING
