1-4

CHECKING OF CONNECTIONS

GEN

INFO

NOTE:

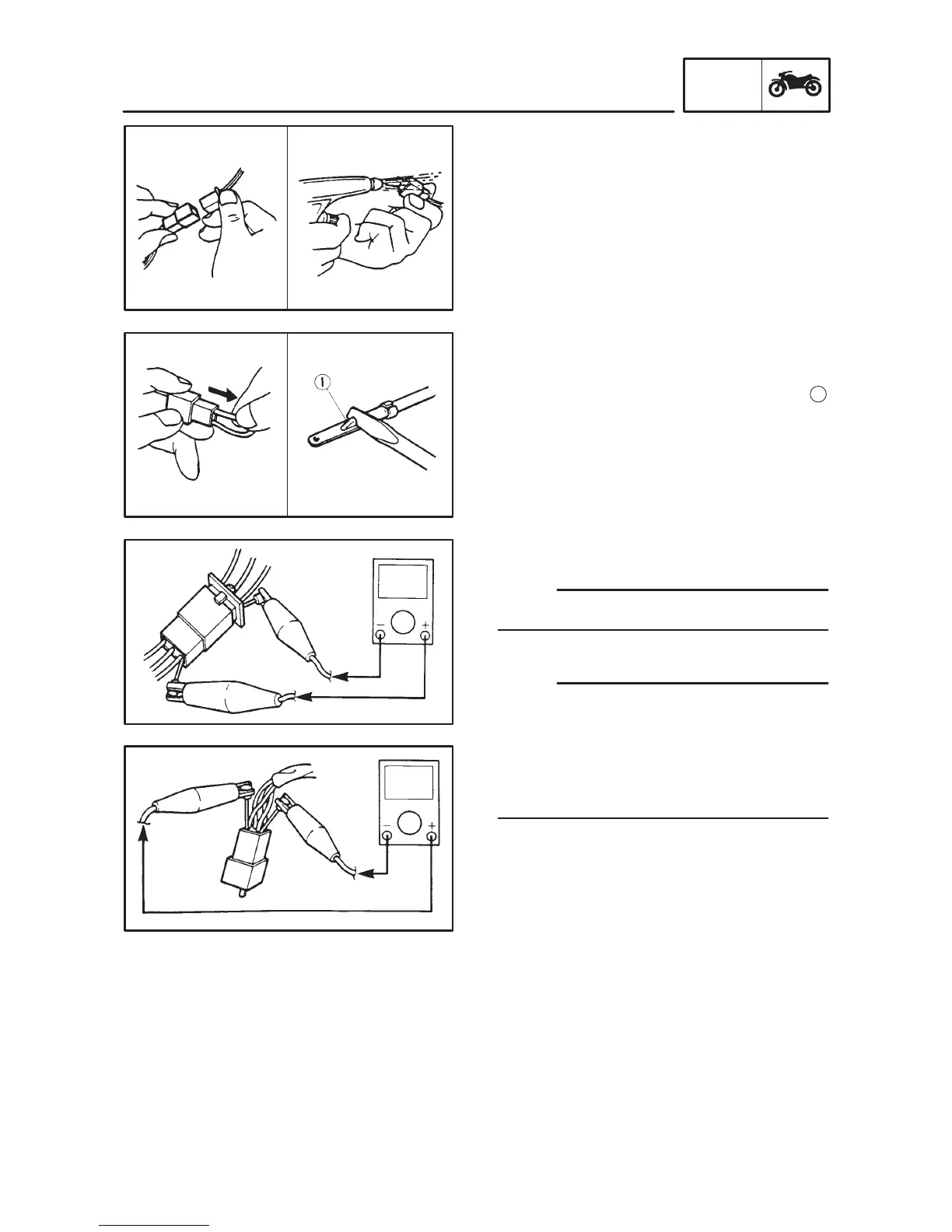

CHECKING OF CONNECTIONS

Dealing with stains, rust, moisture, etc. on the con-

nector.

1. Disconnect:

 Connector

2. Dry each terminal with an air blower.

3. Connect and disconnect the connector two or

three times.

4. Pull the lead to check that it will not come off.

5. If the terminal comes off, bend up the pin

and reinsert the terminal into the connector.

6. Connect:

 Connector

The two connectors “click” together.

7. Check for continuity with a tester.

 If there is no continuity, clean the terminals.

 Be sure to perform the steps 1 to 7 listed above

when checking the wireharness.

 For a field remedy, use a contact revitalizer avail-

able on the market.

 Use the tester on the connector as shown.
