FRONT AND REAR BRAKE
CHAS
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7

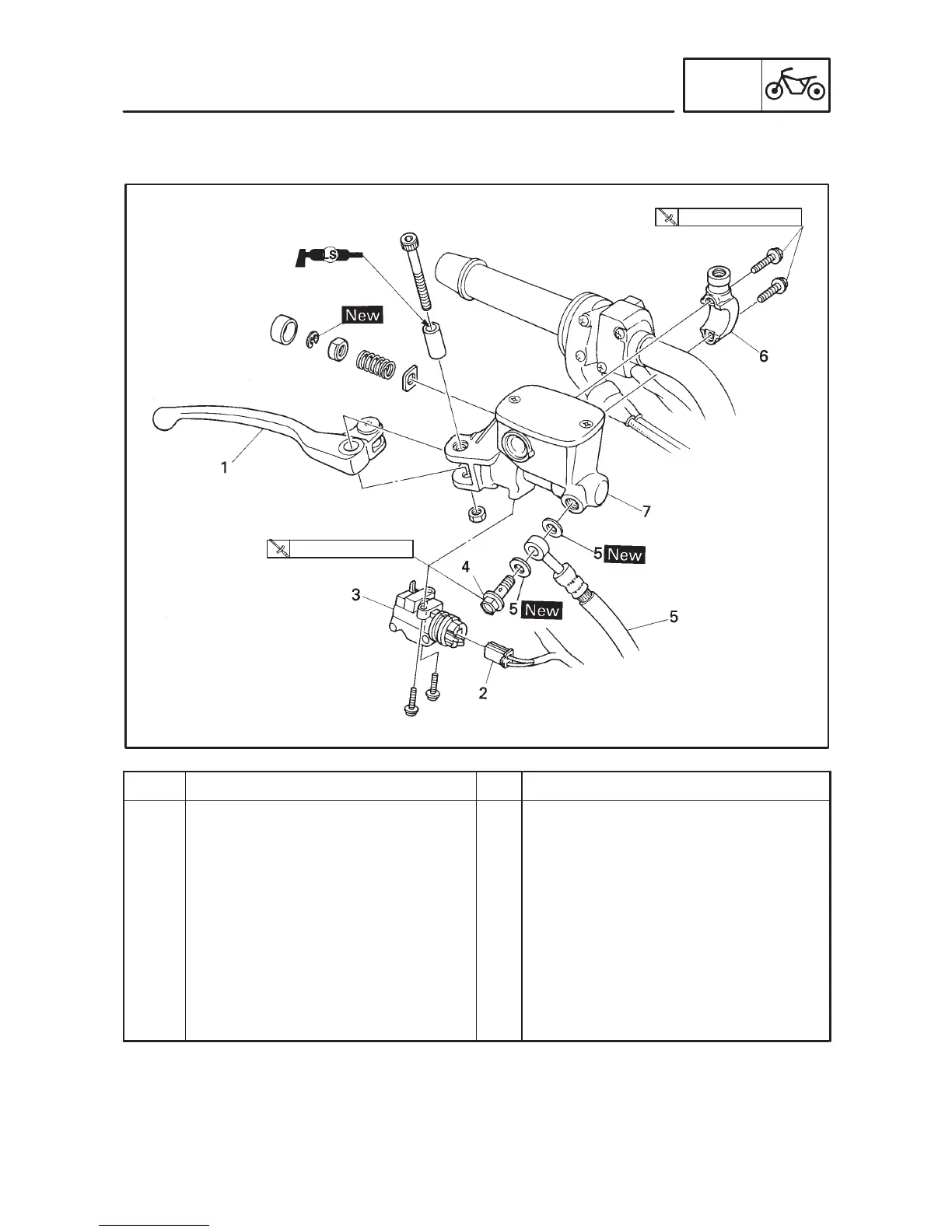

Front brake master cylinder removal
Brake fluid
Brake lever
Front brake switch lead coupler
Front brake switch
Union bolt
Copper washer/Brake hose
Master cylinder bracket
Master cylinder assembly
1
1
1
1
2/1
1
1
Remove the parts in the order below.
Drain
Disconnect
Refer to “MASTER CYLINDER
ASSEMBLY”.
For installation, reverse the removal
procedure.
9 Nm (0.9 mkg)
30 Nm (3.0 mkg)
FRONT BRAKE MASTER CYLINDER

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
