4-64

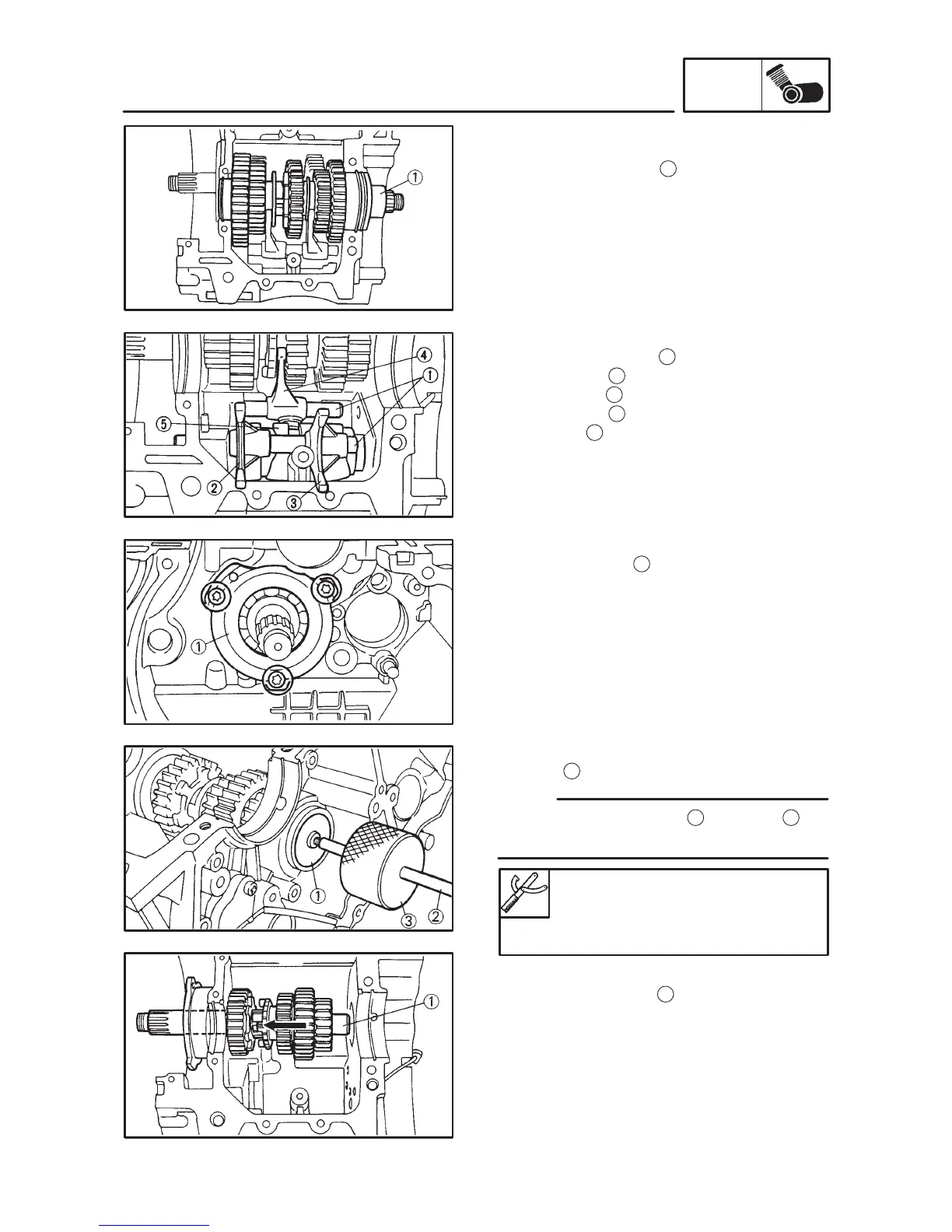

TRANSMISSION, SHIFT CAM AND SHIFT FORK
ENG
NOTE:
REMOVAL
1. Remove:
 Drive axle assembly
1
2. Remove:
 Shift fork guide bars
1
 Shift fork “R”
2
 Shift fork “L”
3
 Shift fork “C”
4
 Shift cam
5
3. Remove:
 Bearing housing
1
(use the torx wrench)
4. Remove:
 Cover
1
Attach the slide hammer bolt
2 and weight 3 into
the cover, then remove the cover by pulling.
Slide hammer bolt:
90890-01083
Weight:
90890-01084
5. Remove:
 Main axle assembly
1
(Push out of clutch side)

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
