4-41
OIL PUMP
ENG
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9

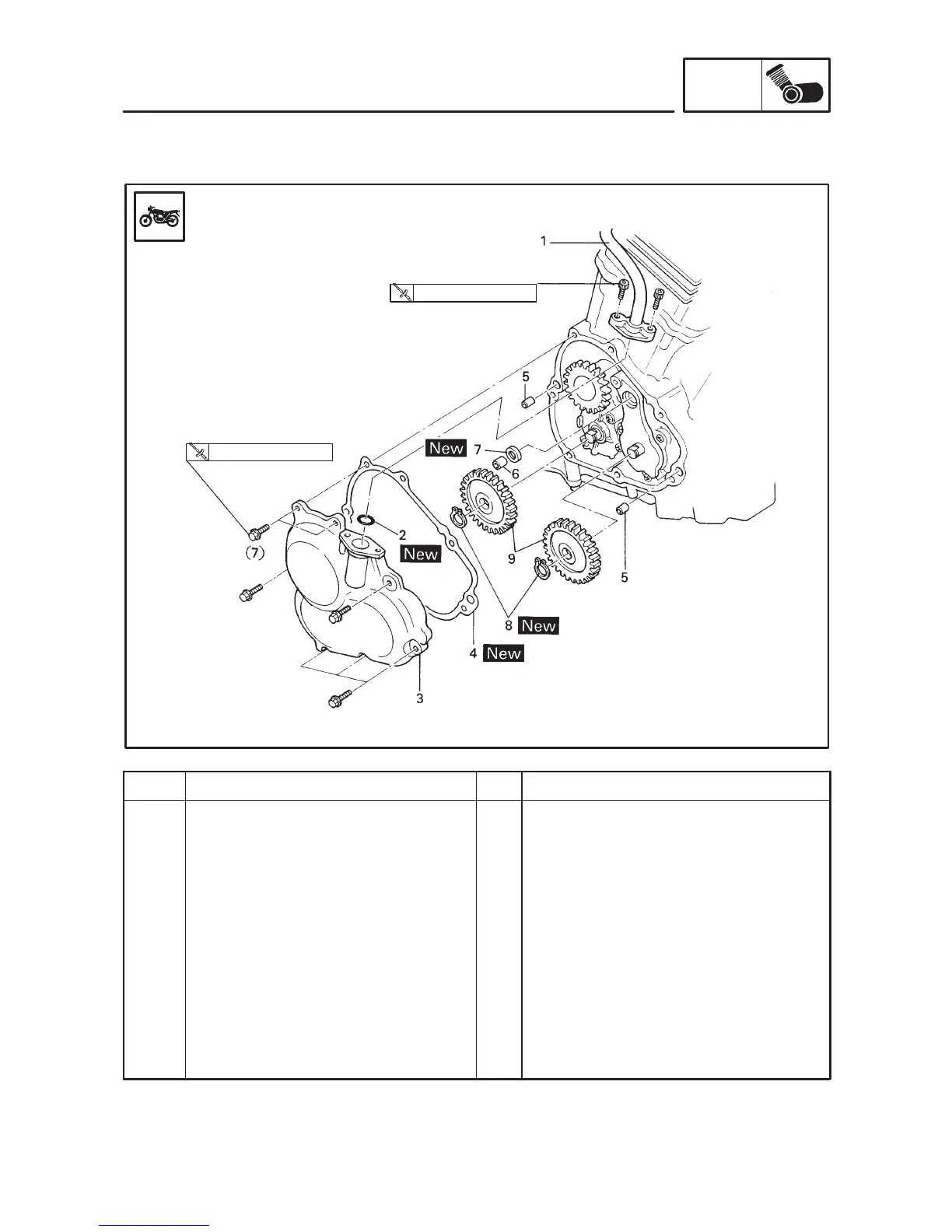

Oil pump cover and oil pump driven
gear removal
Engine oil
Oil pipe
O-ring
Oil pump cover
Gasket
Dowel pin
Collar
Gasket
Circlip
Oil pump driven gear
1
1
1
1
2
1
1
2
2
Remove the parts in the order below.
Refer to “ENGINE OIL REPLACE-
MENT” in CHAPTER 3.
For installation, reverse the removal
procedure.
10 Nm (1.0 mkg)
10 Nm (1.0 mkg)
OIL PUMP
OIL PUMP COVER AND OIL PUMP DRIVEN GEARS
