7-32
FRONT AND REAR BRAKE
CHAS
New
30 Nm (3.0 mkg)
CAUTION:
NOTE:
40 Nm (4.0 mkg)
14 Nm (1.4 mkg)
WARNING
40 Nm (4.0 mkg)

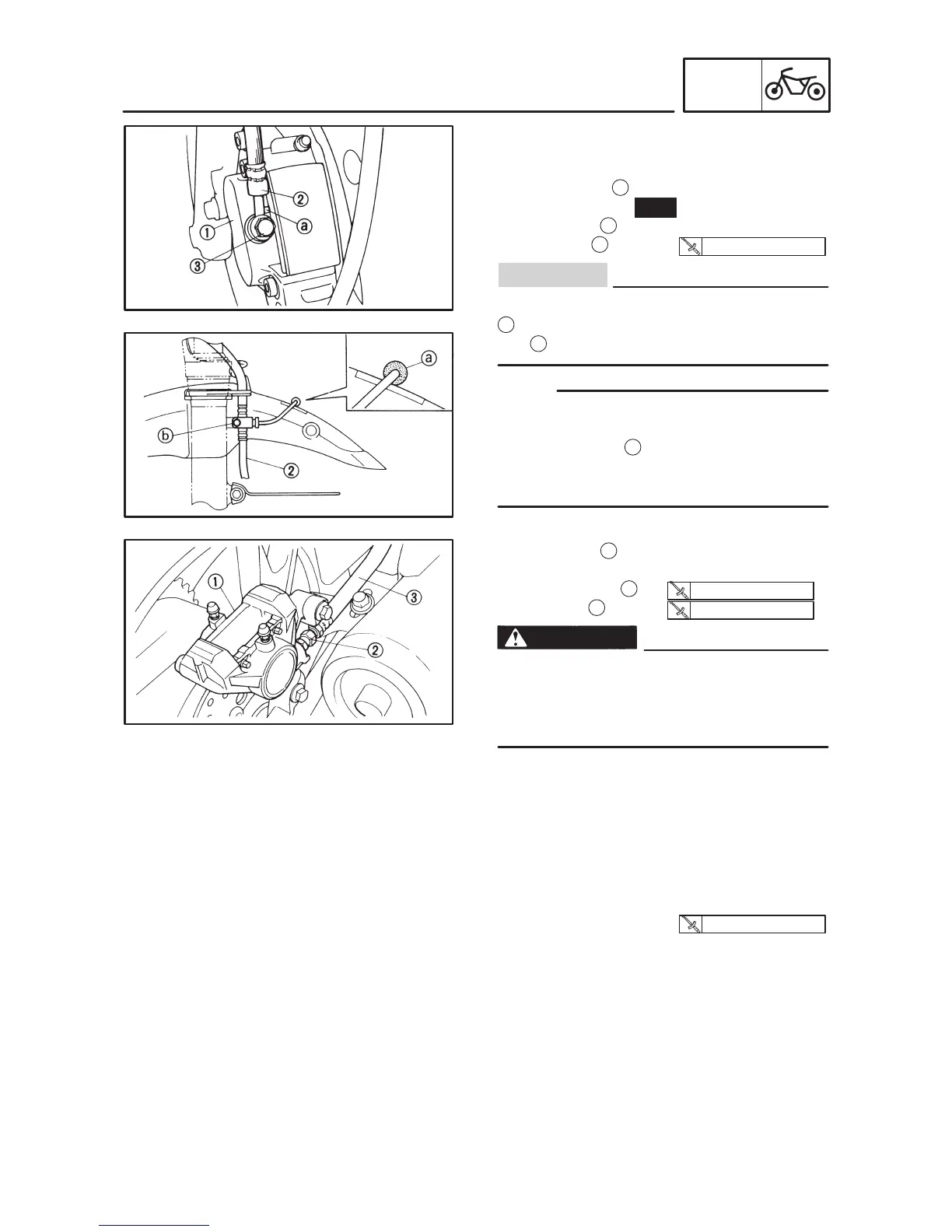

CALIPER INSTALLATION
1. Install:
 Front brake
 Brake caliper
1 (temporarily)
 Copper washers
 Brake hose
2
 Union bolt
3
When installing the brake hose on the caliper
1 , take care that the pipe touches the projec-
tion
a
on the brake caliper.
Make sure that the damper of the brake pipe is in
contact with the front fender. If it’s not in contact,
loosen holding bolt
B (left and right) and move the
brake pipe so that the damper contacts the fender.
Then tighten the holding bolt.
Rear brake
 Brake caliper
1 (temporarily)
 Copper washer
 Brake hose joint
2
 Brake hose
3
 Proper hose routing is essential to insure
safe motorcycle operation. Rear to “CABLE
ROUTING”.
 Always use new copper washers.
2. Install:
 Pad shims
(onto brake pads)
 Brake pads
 Pad spring
 Retaining pins
 Retaining clips
 Pad cover
 Brake caliper
Refer to “BRAKE PAD REPLACEMENT”.
3. Fill:
 Brake reservoir
Refer to “MASTER CYLINDER ASSEMBLY –
Front brake”.
