Yamaha TDM850 1996 User Manual

3-3
COWLINGS, SEAT, TAIL COVER AND FUEL TANK
INSP
ADJ
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11

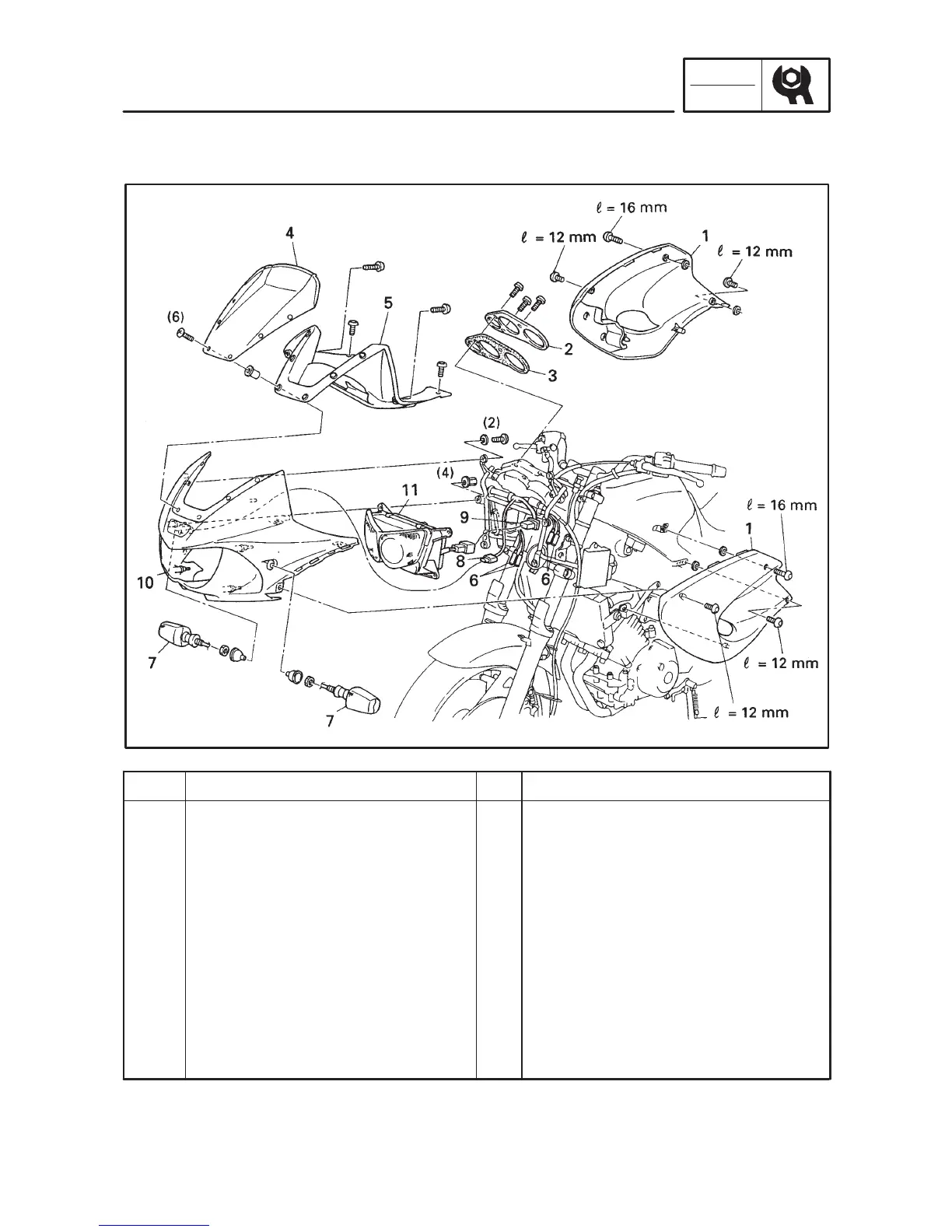

Cowlings removal
Side cowling (left and right)
Meter panel
Damper
Wind shield
Inner panel
Front flasher light lead
Front flasher light (left and right)
Auxiliary light lead coupler
Headlight lead coupler
Front cowling
Headlight unit
2
1
1
1
1
4
2
1
1
1
1
Remove the parts in the order below.
Disconnect
Disconnect
Disconnect
For installation, reverse the removal
procedure.
COWLINGS, SEAT, TAIL COVER AND FUEL TANK
COWLINGS

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
