Yamaha TDM850 1996 User Manual

8-44
Revolution
(10
3
r/min)
Tachometer display
Engine speed
time
(seconds)
TPS (THROTTLE POSITION SENSOR) SELF DIAGNOSIS
ELEC
1
2
3
NOTE:
TPS (THROTTLE POSITION SENSOR) SELF DIAGNOSIS

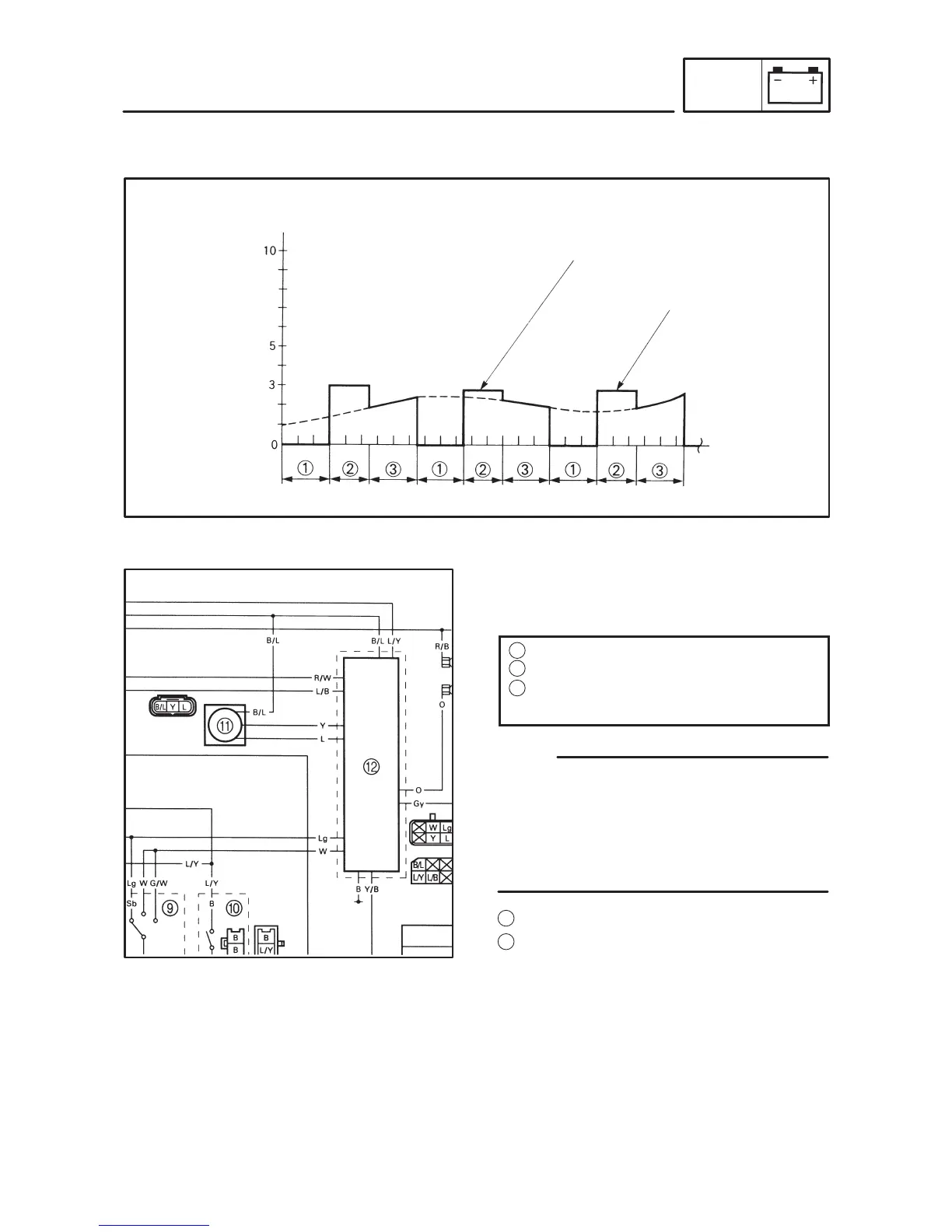

CIRCUIT DIAGRAM If the needle of the tachometer shows the follow-
ing pattern while the engine is running, the throttle
position sensor circuit is broken, shorted, or the
TPS (throttle position sensor) is locked. In that
case, it would be best to inspect it.
0 rpm – 3 seconds
3,000 rpm – 2.5 seconds
present engine revolutions – 3 seconds
The above pattern is repeated.
 The needle of the tachometer keeps pointing to
“0” rpm for 6 seconds when the engine is not run-
ning.
 If any trouble occurs in the TPS, the ignition tim-
ing signal transmitted from the TPS to the ignitor
unit is limited to the full-open state signal.
11
TPS (throttle position sensor)
12
Ignitor unit

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
