8-3
Rear brake switch
Fuse
Engine stop switch
Start switch
Front brake switch
Main switch
Clutch switch
Horn switch
Lights switch
Dimmer switch
Pass switch
Turn switch
Sidestand switch
Gear position switch
1
2
3
4
5
6
7
8
9
10
11
12
13
14

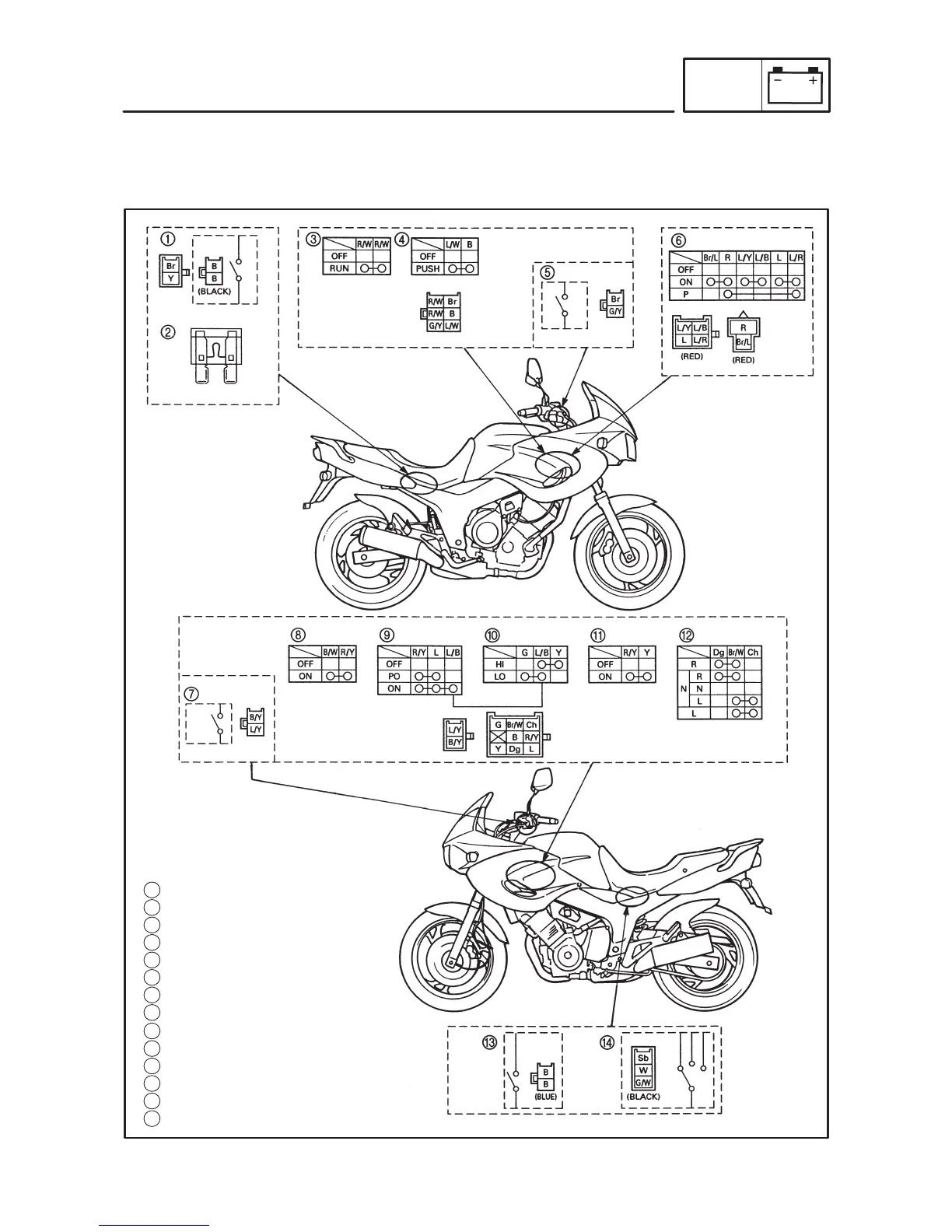

SWITCH INSPECTION
ELEC
SWITCH CONTINUITY INSPECTION
Refer to “SWITCH INSPECTION” and check for continuity between lead terminals.
Poor connection, no continuity  Correct or replace.
* The coupler locations are circled.

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
