Yamaha TDM850 1996 User Manual

4-6
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5

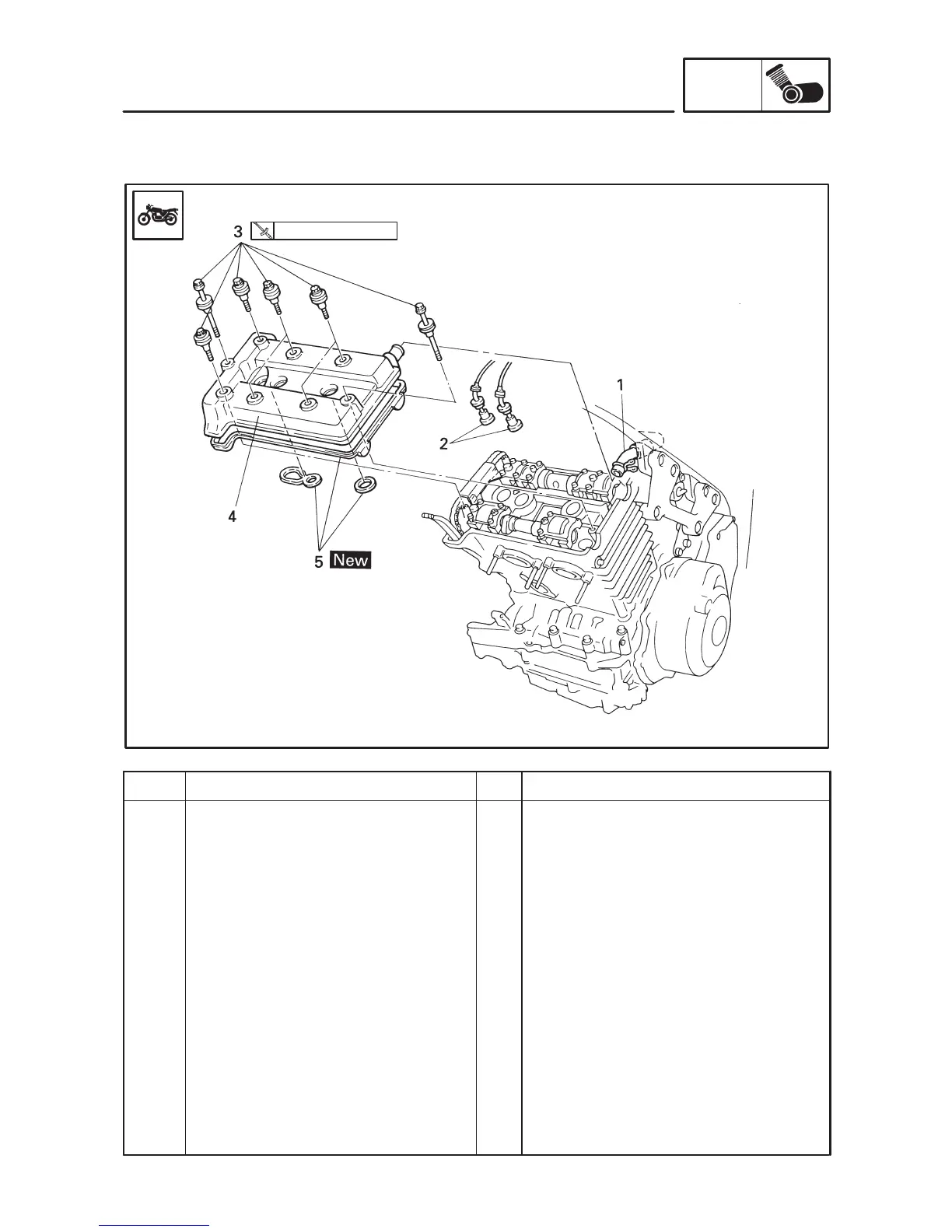

Cylinder head cover removal
Side cowling, seat, side cover and fuel
tank
Air filter case
Coolant
Radiator
Carburetor assembly
Thermostatic assembly
Breather hose
Spark plug cap
Bolt
Cylinder head cover
Cylinder head cover gasket
1
2
1/6/1
1
3
Remove the parts in the order below.
Refer to “COWLINGS, SEAT, TAIL
COVER AND FUEL TANK” in CHAPTER 3.
Refer to “AIR FILTER CASE” in
CHAPTER 3.
Refer to “COOLANT REPLACEMENT”
in CHAPTER 3.
Refer to “RADIATOR” in CHAPTER 5.
Refer to “CARBURETOR” in CHAPTER 6.
Refer to “THERMOSTATIC VALVE” in
CHAPTER 5.
 = 68/27/58 mm
For installation, reverse the removal
procedure.
10 Nm (1.0 mkg)
CAMSHAFT
ENG
CAMSHAFT
CYLINDER HEAD COVER
