Yamaha TDM850 1996 User Manual

4-7
CAMSHAFT
ENG
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

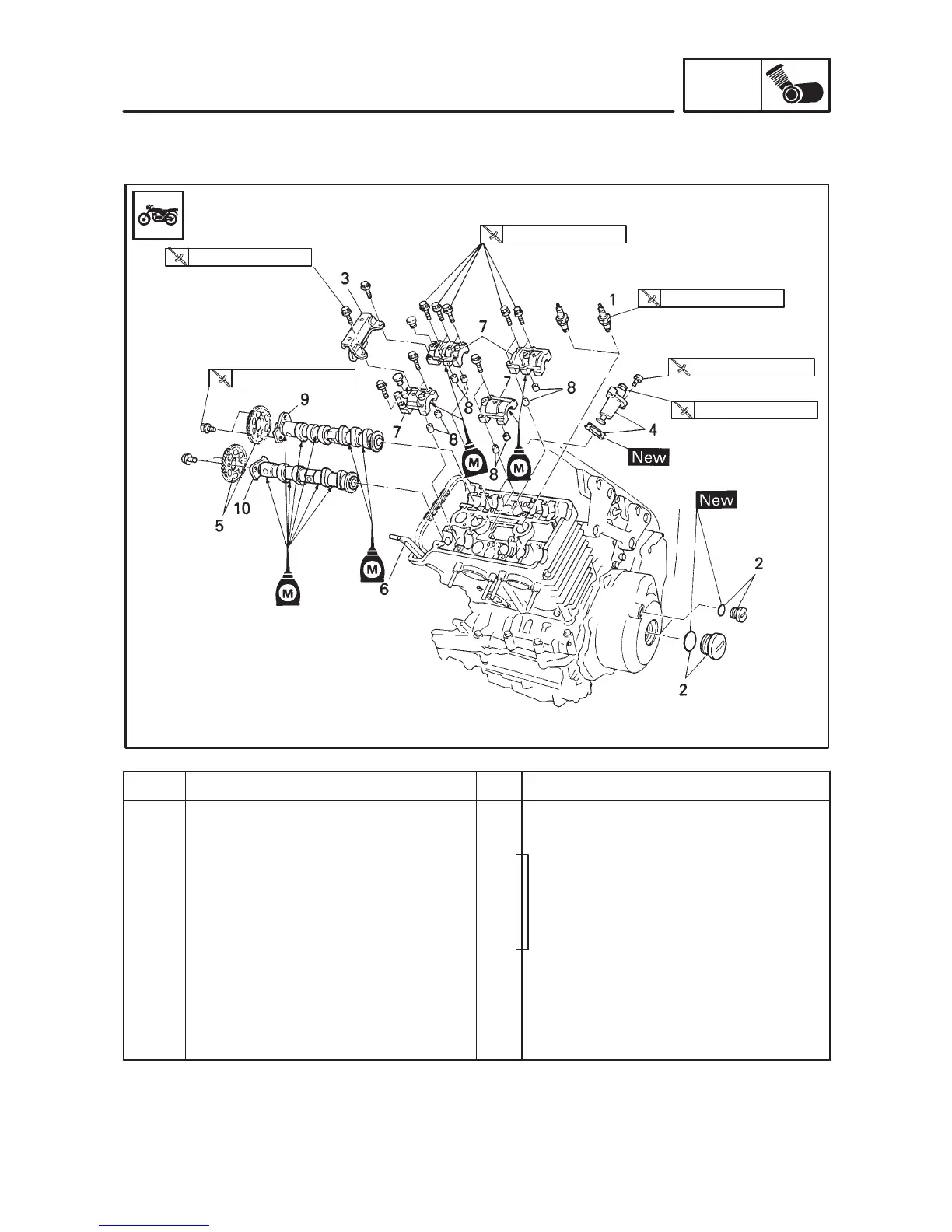

Camshaft removal
Spark plug
Plug/O-ring
Timing chain guide (upper)
Timing chain tensioner/Gasket
Camshaft sprocket
Timing chain guide (exhaust)
Camshaft cap
Dowel pin
Intake camshaft
Exhaust camshaft
2
2/2
1
1/1
2
1
4
8
1
1
Remove the parts in the order below.
For installation, reverse the removal
procedure.
Refer to “REMOVAL”, and
“INSTALLATION”.
24 Nm (2.4 mkg)
10 Nm (1.0 mkg)
10 Nm (1.0 mkg)
18 Nm (1.8 mkg)
10 Nm (1.0 mkg)
20 Nm (2.0 mkg)
CAMSHAFT

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
