4-34
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7

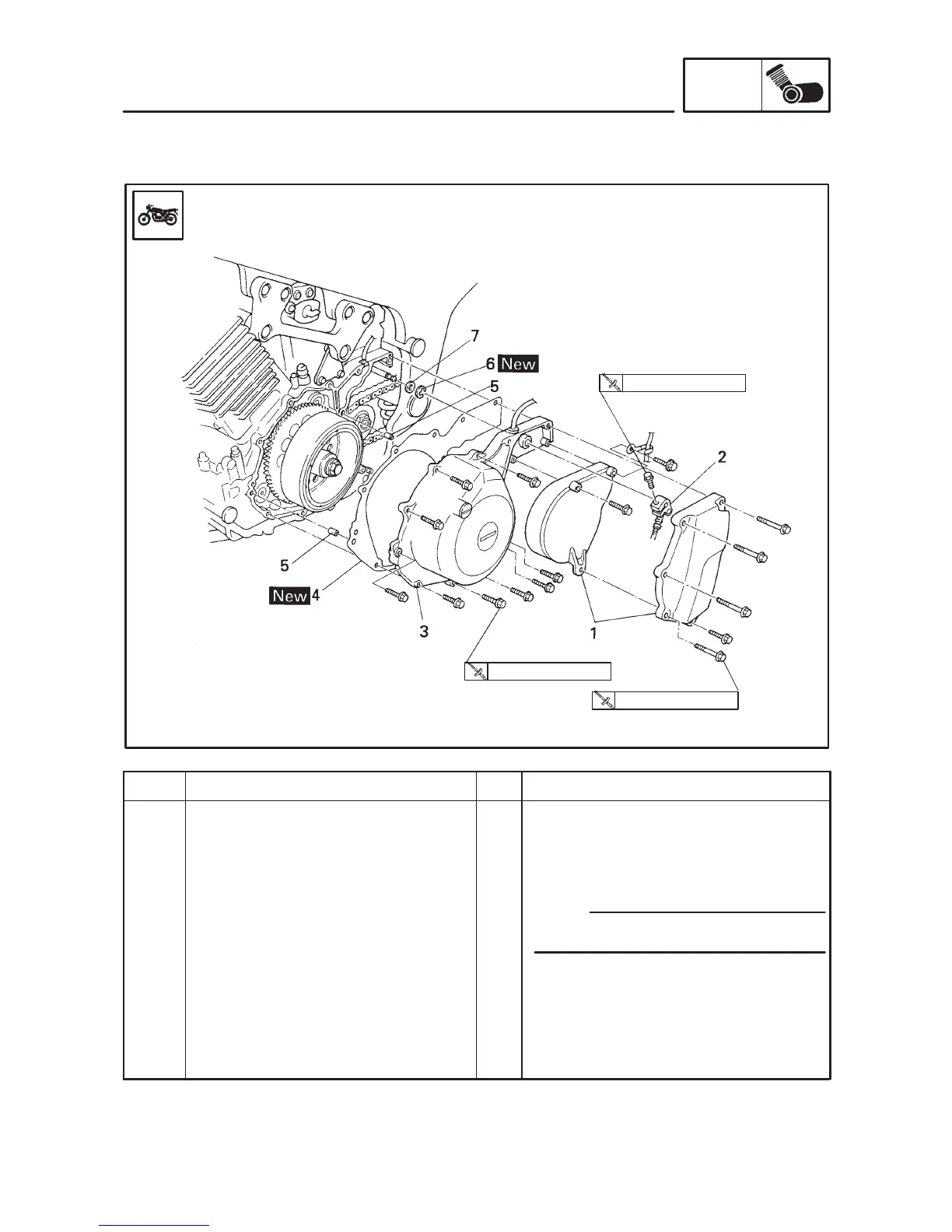

Crankcase cover (left) removal
Engine oil
Drive sprocket cover 1/2
Shift arm
Crankcase cover (left)
Gasket
Dowel pin
Circlip
Plain washer
1/1
1
1
1
2
1
1
Remove the parts in the order below.
Refer to “ENGINE OIL REPLACE-
MENT” in CHAPTER 3.
For installation, reverse the removal
procedure.
Loosen the bolts in a crisscross pattern.
NOTE:
12 Nm (1.2 mkg)
10 Nm (1.0 mkg)
5 Nm (0.5 mkg)
CRANKCASE COVER (LEFT)
ENG
CRANKCASE COVER (LEFT)

Yamaha TDM850 1996 Specifications

General

Displacement	849 cc
Bore x Stroke	89.5 mm x 67.5 mm
Compression Ratio	10.5:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Suspension	Monoshock
Front Brakes	Dual disc
Rear Brakes	Single disc
Rear Tire	150/70-17
Fuel Capacity	20 liters
Seat Height	825 mm
Width	800 mm
Engine Type	4-stroke, parallel-twin
Ignition	Digital
