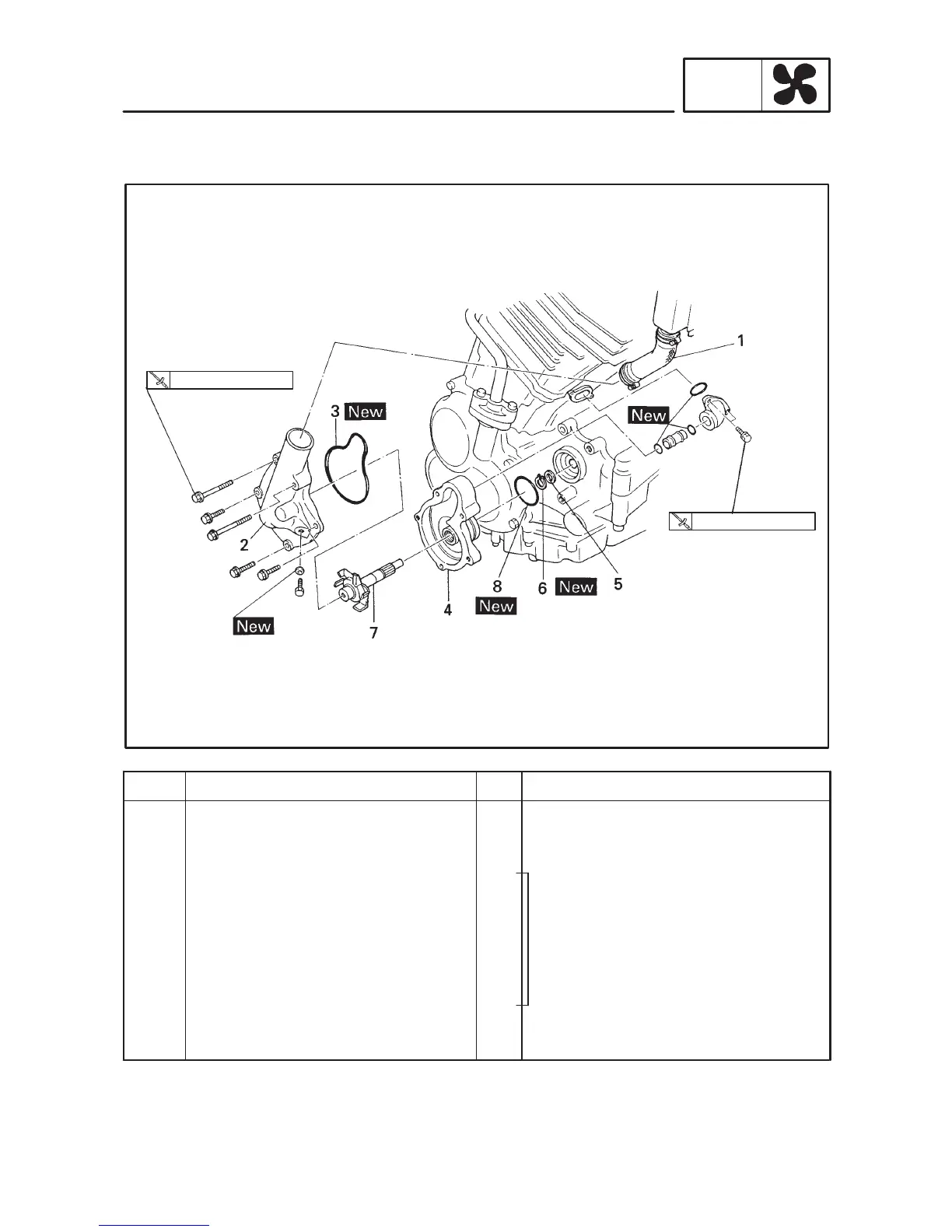

WATER PUMP
COOL
Order
Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
Water pump removal
Coolant
Coolant hose 3
Water pump cover
O-ring
Water pump housing
Washer
Circlip
Impeller
O-ring
1
1
1
1
1
1
1
1
Remove the parts in the order below.
Refer to “COOLANT REPLACEMENT” in
CHAPTER 3.
For installation, reverse the removal
procedure.
Refer to “INSTALLATION”.
10 Nm (1.0 mkg)
10 Nm (1.0 mkg)
WATER PUMP
WATER PUMP
