Domino A-SERIES User Manual

REFERENCE
27080 Issue 1 August 98 5--41

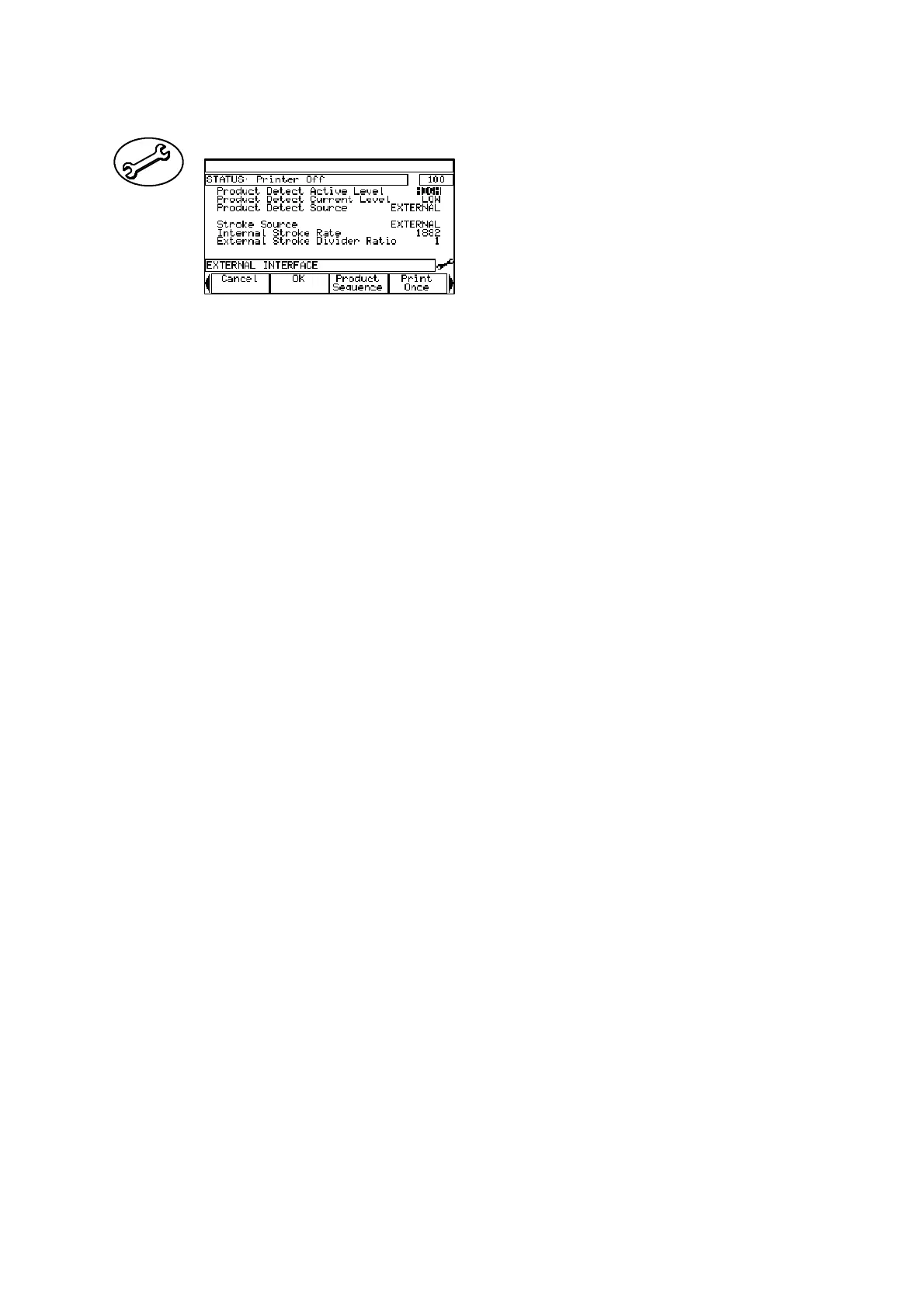

External I/F
Permits control of the external
interface (product detection and
stroke control). Stroke control is
directly selectable as internal or
external (external is normally a
shaft encoder). Internal product
detection is selected through the
Product Sequence function key
option.
Product Detect Active Level: Select High/Low, -- external product
detector signal level initiating Print Go.
Product Detect Current Level: Status: High/Low, -- current external
product detector signal level.
Product Detect Source: Status: Internal/External. Internal will only
be shown when Product Sequence
Simulation (see pg. 5--44) is providing
internal product detection.
Stroke Source: Select Internal/External -- external for shaft
encoder.
Internal Stoke Rate: Range: 0--25600 Hz max. -- limited by print
width maximum value.
External Stroke Divider Ratio: Enter 1--32, to divide down the external
input stroke rate into reduced rate for
printing.
Function key options:
Cancel Discards changes and returns display to
previous screen.
OK Accepts changes and returns display to
previous screen.
Product Sequence (See Product Sequence Simulation pg. 5--44).
Print Once Simulates a single product detection.
Start Product Simulates the start of a product being
detected.
End Product Simulates the end of a product being
detected.
