STATIONARY STAND
A stationary stand or bench mounting stand (see page 10--14) must be
fitted to the printer if there is no suitable surface to which printer can
be bolted.
This stand provides a secure support for the printer, placing it at a
convenient height for theoperator and making provision for astorage
cabinetbelow. Theairdryercan alsobe mountedonto thestand, tothe
rear support panel.
The stand is made of stainless steel with a finish similar to the printer
cabinet. Four adjustable feet provide levelling on uneven floors.
Assemble the stand as follows:
(1) SecuretheuprightbarstothebaseusingfourM6x10screws(inkit).
(2) Fit the rear support panel using four M6x10 screws (in kit).
(3) Fit the top cover using four M6x10 screws (in kit).
(4) TheprinterisfittedtothetopofthestandusingfourM6x20screws
fitted from the underside, with the spacers fitted beneath the
printer.

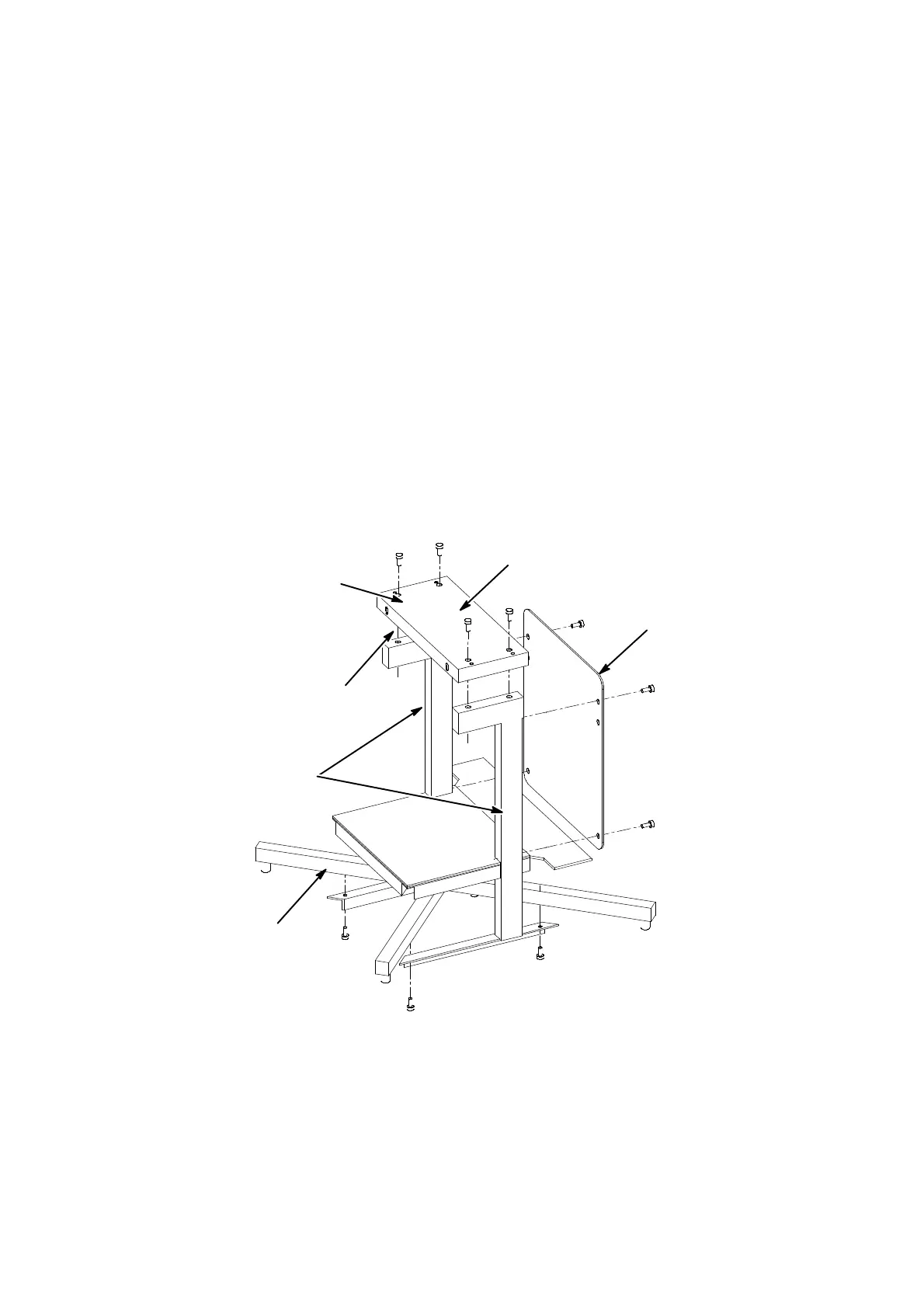

Stand
Base
Top
MG170_1
Rear
Support
Panel
Printer is secured
from beneath
Upright
Bars
Printer stands
here
Spares List --Stationary Stand (Stainless Steel) -- 37767
Stationary Stand (Painted) -- 37769
Option for Stationary Stand : Mobility Kit (Stainless Steel) -- 37703
Mobility Kit (Painted)-- 37704
Stainless Steel Service Tray -- 37770
40mm Clamp Kit -- 37765
