INTRODUCTION
27080 Issue 1 August 98 2--9

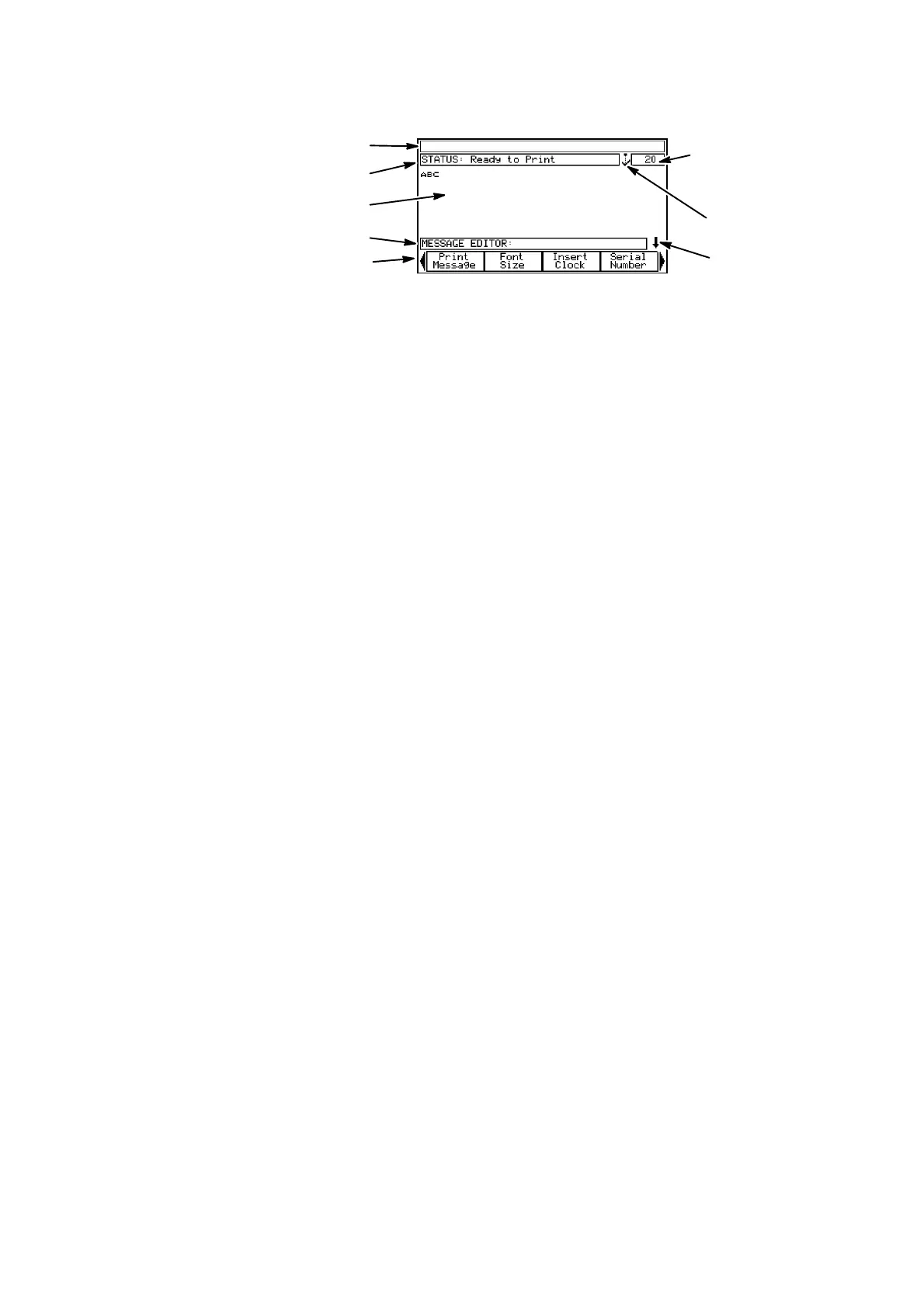

Alert Bar
Key Option Bar
Information Bar
Working Area
Status Bar
Screen Number
Scroll Arrow
Print Symbol
simultaneously, the highest priority alert is displayed. An
unacknowledged alert is always at a higher priority than any other
acknowledged alert. Screen messages are detailed in Part 4.
Status bar shows status and other non--alert information.
Working area provides a general presentation area for the function in
use.
Information barusually showswhichlevelis currentlyselected, butis
also used for general information.
Key option bar shows up to four key options at any one time,
presentingthemaslabelsforthefourfunctionkeysimmediatelybelow
the screen. The options are scrolled left and right in groupsof four by
the keys on each side of the function keys, which appear when there is
morethanfourkeyoptions. Scrollingresultsinthekeylabelschanging,
with the functions of the keys also changing to correspond with the
labelling.
Screen number provides a numerical identity for each screen.
Scroll arrow shows that the screen detail extends off the display. The
up-- and down--cursor keys must be used to show the hidden detail.
Print symbol shows printing as each Print Go signal is received. At
very slow print rates the symbol will appear to flash, but typical print
rates will give the appearance of a continuous symbol.
Jet On/Off Switching
TheJet On/Offswitchispressedtoswitchonthejet and pressed again
to switch off the jet. It is necessary to press the switchfor two seconds
as a precaution against accidental use. The switch also carries the
following indicators:
Power On Indicator shows when the power is switched on at the
switch on the side of the cabinet.
Red Alert Indicator shows the printer has a fault which prevents
printing. The indicatorflasheswhilethe alert is unacknowledgedand
