OPTIONS
10--20 27080 Issue 1 Sept 98
SHAFT ENCODER
Theshaftencoderisfittedtotheproductionlineanditsrotationfollows
the line movement. Exact details of both the shaft encoder and its
installation depend upon the line.
Connection into the printer is to either of the Shaft Encoder/Product
Detector connectors on the side of the cabinet. The printer provides a
12V dc supply for use by the shaft encoder and a 12V NPN
open--collector input for signals from the encoder.
Spares List: Plug IP68 6 way Cable Mounting (external) -- 13503
Fivepin AXRtoIP68PlugAdaptor(forusewithexisting
shaft encoders/photocells) -- 37771

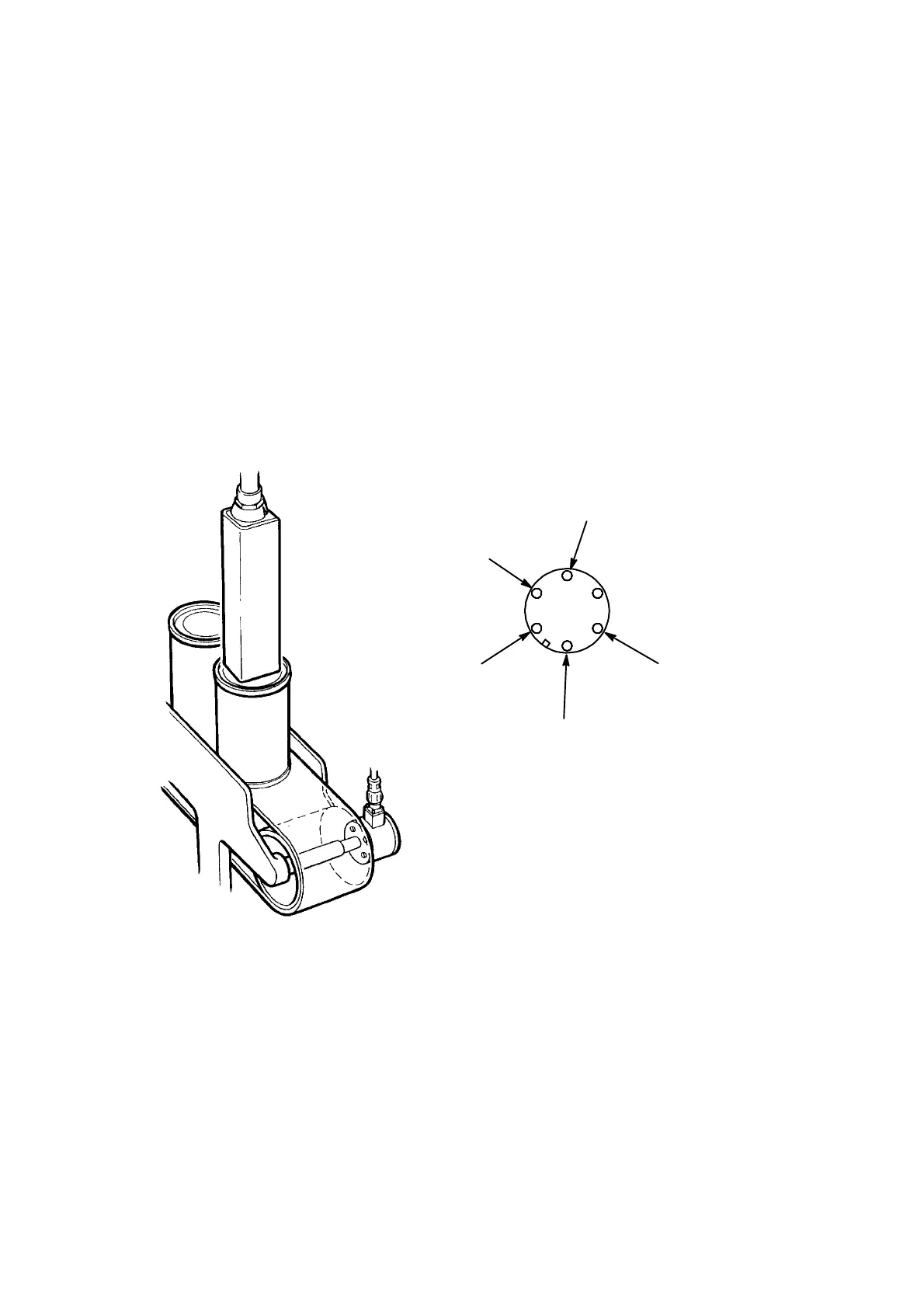

Shaft Encoder
Pin 1 = 0V
(Pin 3 = Product
Detector)
Pin 5 = Screen
Pin 4 = +12V
Cabinet Connectors (Ex-
ternal View)
Pin 2 =
Encoder
TP6020--1
MG164_1
To Next Page
