OPTIONS
10--24 27080 Issue 1 Sept 98
INDUCTIVE SENSOR
Two types of detector are available:
D Inductive Sensor (18mm range), or
D Inductive Sensor (30mm range).
Theproximityswitchdetectsmetalproducts. Itismountedclosetothe
products on the line and provides a signal to the printer when the
product comes within its detection range. The distances between the
switch and the productvary depending upon thematerial from which
the product is made and the application. Domino can provide further
information and advice.

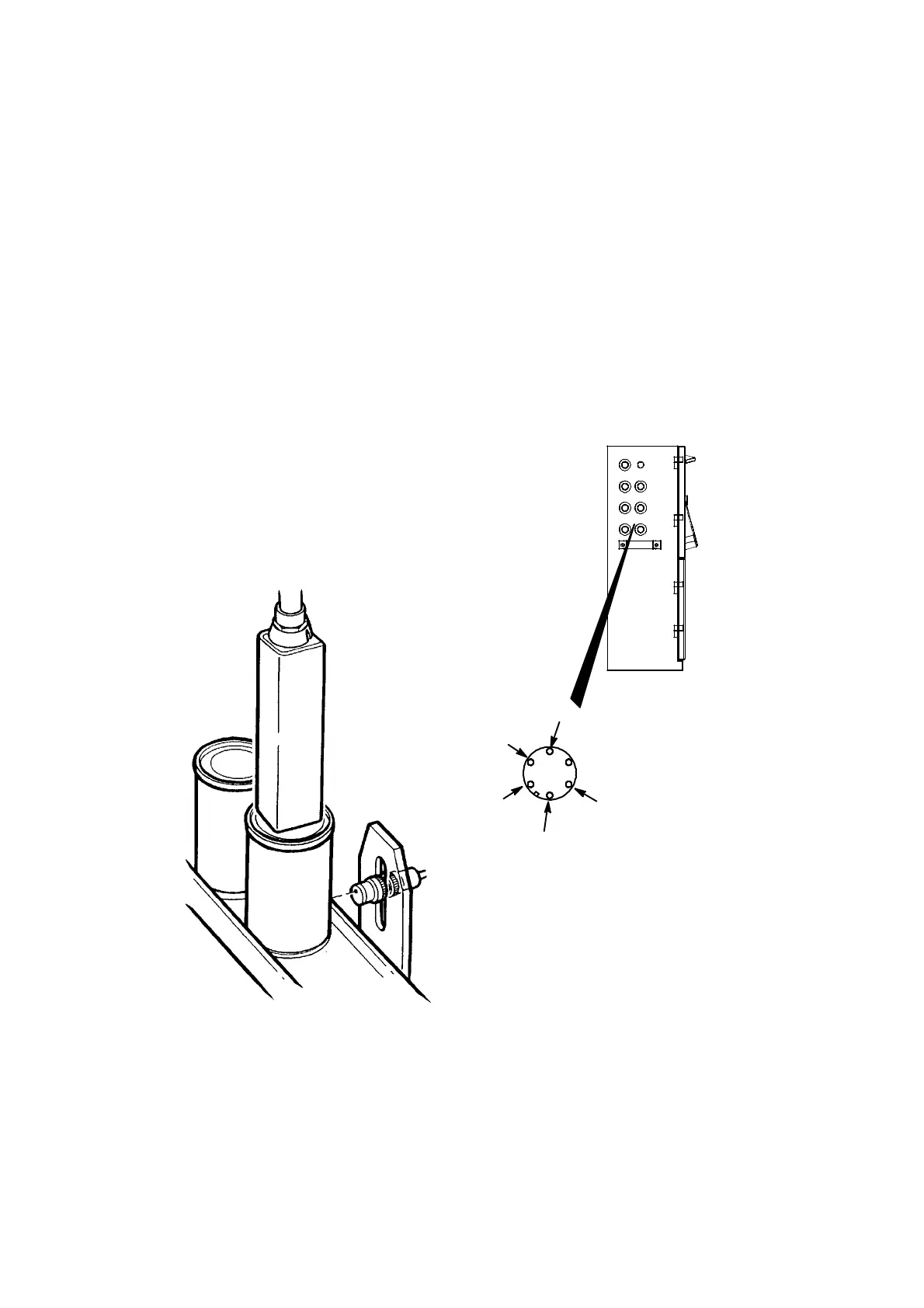

Connection details are given in the diagram.
Inductive Sensor
TP7130_1
Cabinet Connectors
(External View)
MG001--1
Pin 1 = 0V
Pin 3 =
Product
Detector
Pin 4 =
+12V
Pin 2 =
Encoder
Pin 5 =
Screen
MG164_1
Spares List --Inductive Sensor 18mm, Domino Part No. 37762.
Inductive Sensor 30mm, Domino Part No. 37763.
Five pin AXR to IP68 Plug Adaptor Cable (for use with
existing photocells/shaft encoders) -- 37771
