PHOTOCELL AND REFLECTOR ASSEMBLY
Thisdetectorconsistsofaphotocellandareflector,whichmustbefitted
on opposite sides of the product line. The reflector is adjusted so that
alightbeamfromthedetector,directedacrosstheline,isreflectedback
into a photocell in the detector. Products moving in between the
detector and reflector break the light beam and thisis used to start the
printing, either as the beam is broken or as it is restored. The basic
requirement is gaps between product items as they pass the detector.
Connection details are given in the diagram.

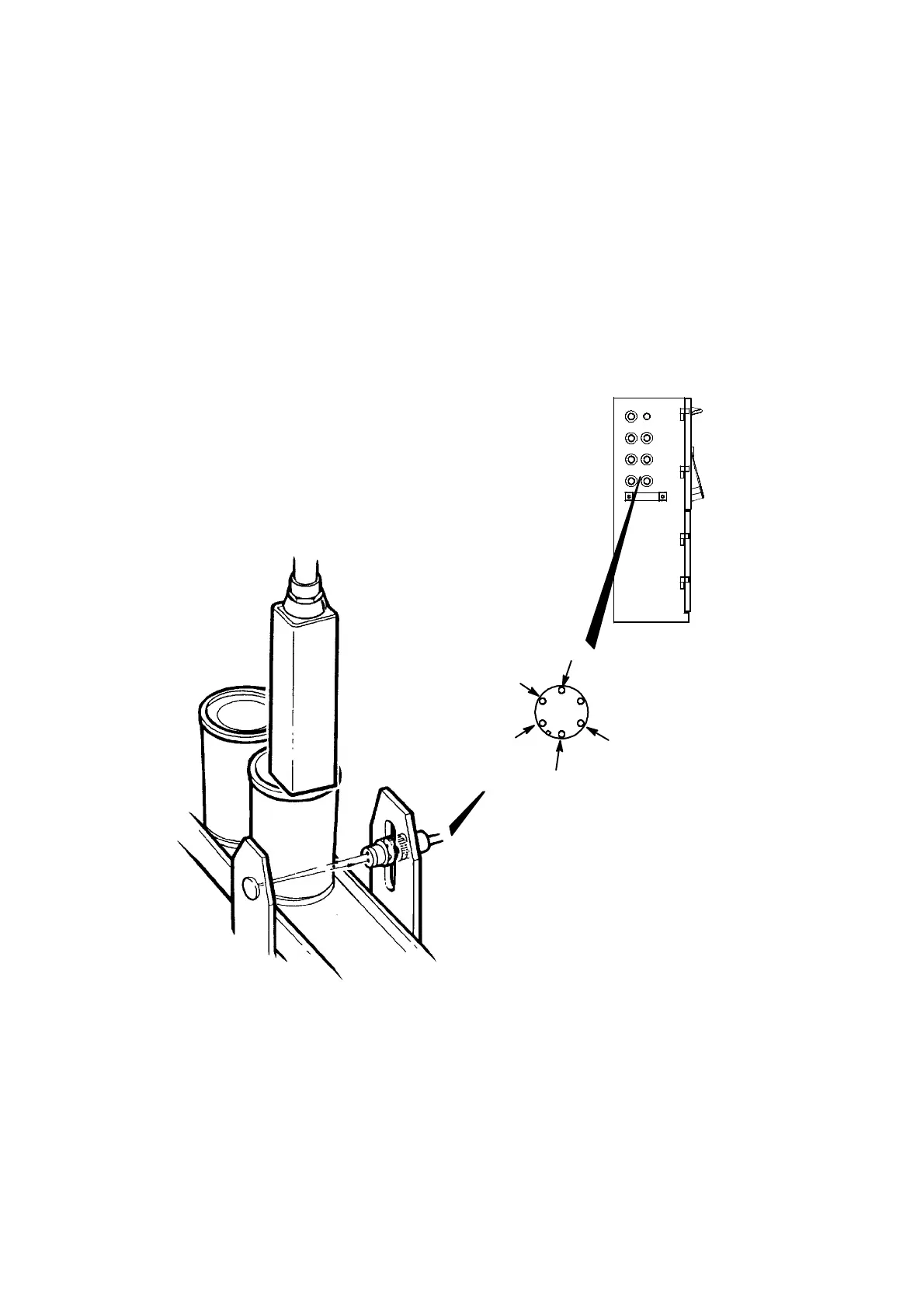

Photocell and Reflector Assembly
TP7120_1
Cabinet Connectors
(External View)
MG001--1
Pin 1 = 0V
Pin 3 =
Product
Detector
Pin 4 =
+12V
Pin 2 =
Encoder
Pin 5 =
Screen
MG164_1
Spares List -- Photocell and Reflector Assembly -- 37760
IP68 6Way Cable Mounting (external) -- 13503
Five pin AXR to IP68 Plug Adaptor Cable (for use with
existing photocells/shaft encoders) -- 37771
