Toolbar Another fast way to access EA screens is the tool bar (see Figure 6-4 on
page 6-12). Simply click on the icon to access the screen.
Setup Screens The setup screens are used to define a compensated flow solution, and
to create flow configuration files for sending to a transmitter. These
screens are only available when the EA is not connected to a transmitter.
• If the fluid is a gas, use the procedure starting below.
• If the fluid is steam, use the procedure starting on page 6-16.
• If the fluid is a liquid, use the procedure starting on page 6-20.
• If the fluid is natural gas, use the procedure starting on
page 6-23.
NOTE
If the Setup menu selections are grayed out, the EA is currently
connected with a Mass ProPlate transmitter. Select T
ransmitter,
Di
sconnect to disconnect the EA from a Mass ProPlate, which
will then enable the Setup menu selections.
S
etup Compensated Flow (Gas Configuration)
The Compensated Flow selection allows you to configure the Mass
ProPlate to measure flow of a particular fluid. The following screens
illustrate how to define a gas configuration.

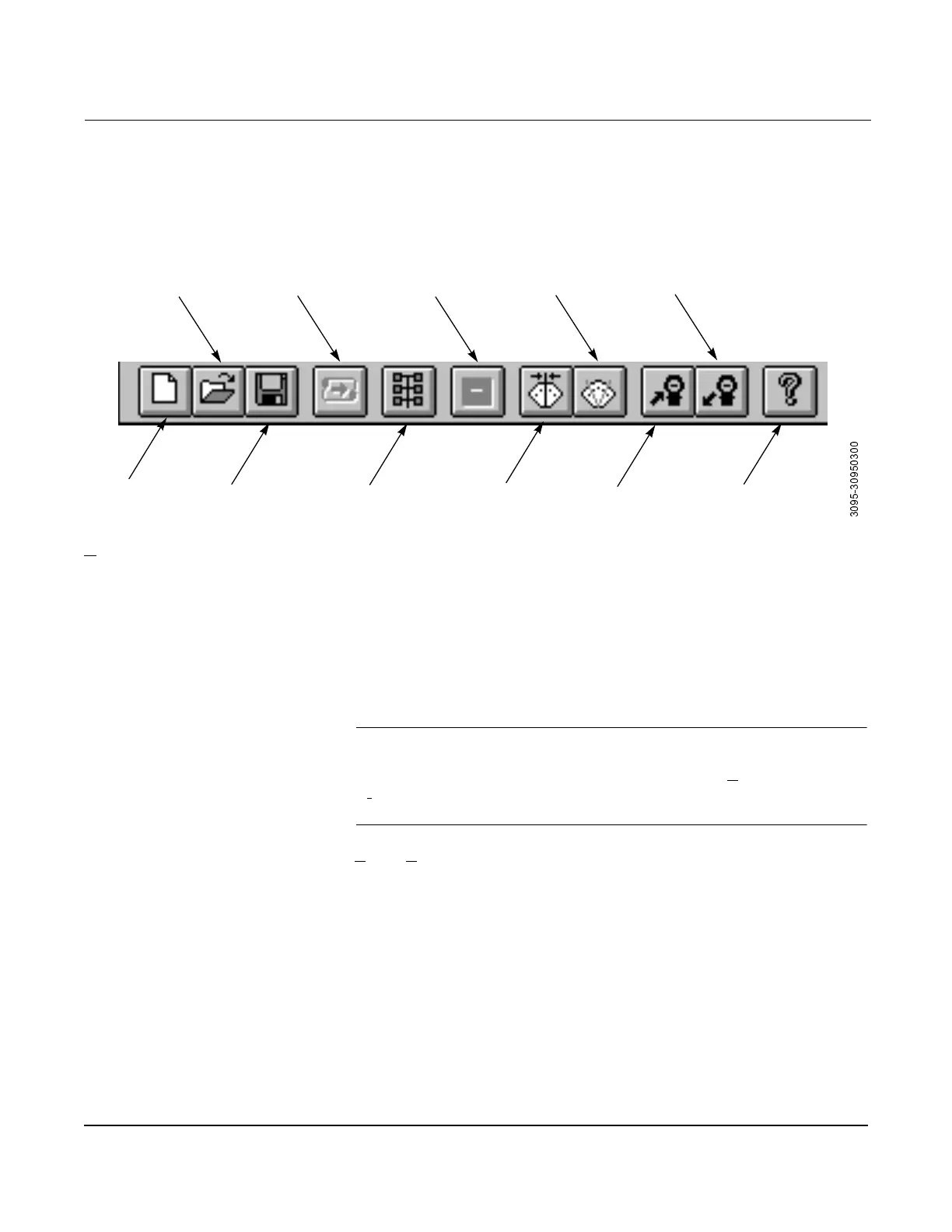

Figure 6-4.
Mass ProPlate Engineering Assistant Toolbar.
New
Config
Save
Config
Connect
Sensor
Trim
Send
Config
About
Open
Config
Compensated
Flow
Privileges
Set Range
Values
Receive
Config
To Next Page
