Rosemount Model 1195/ProPlate/Mass ProPlate
10-6
PROPLATE FLOWMETER
Ordering Information
Ordering information is available in the ProPlate, Mass ProPlate, and
Model 1195 Integral Orifice Product Data Sheet, publication number
00813-0100-4686.
Functional Specifications Service
(1)
Liquid, Gas or Steam service.
Pipe Sizes
(2)
½ in. (15 mm), 1 in. (25 mm), and 1½ in. (40 mm).
Output
4-20mADC, flow rate output. Digital HART protocol superimposed on
4-20mA signal, available to any host that conforms to the HART
protocol.
Power Supply
External power supply required. Standard transmitter (4–20 mA)
operates on 10.5-55VDC with no load.

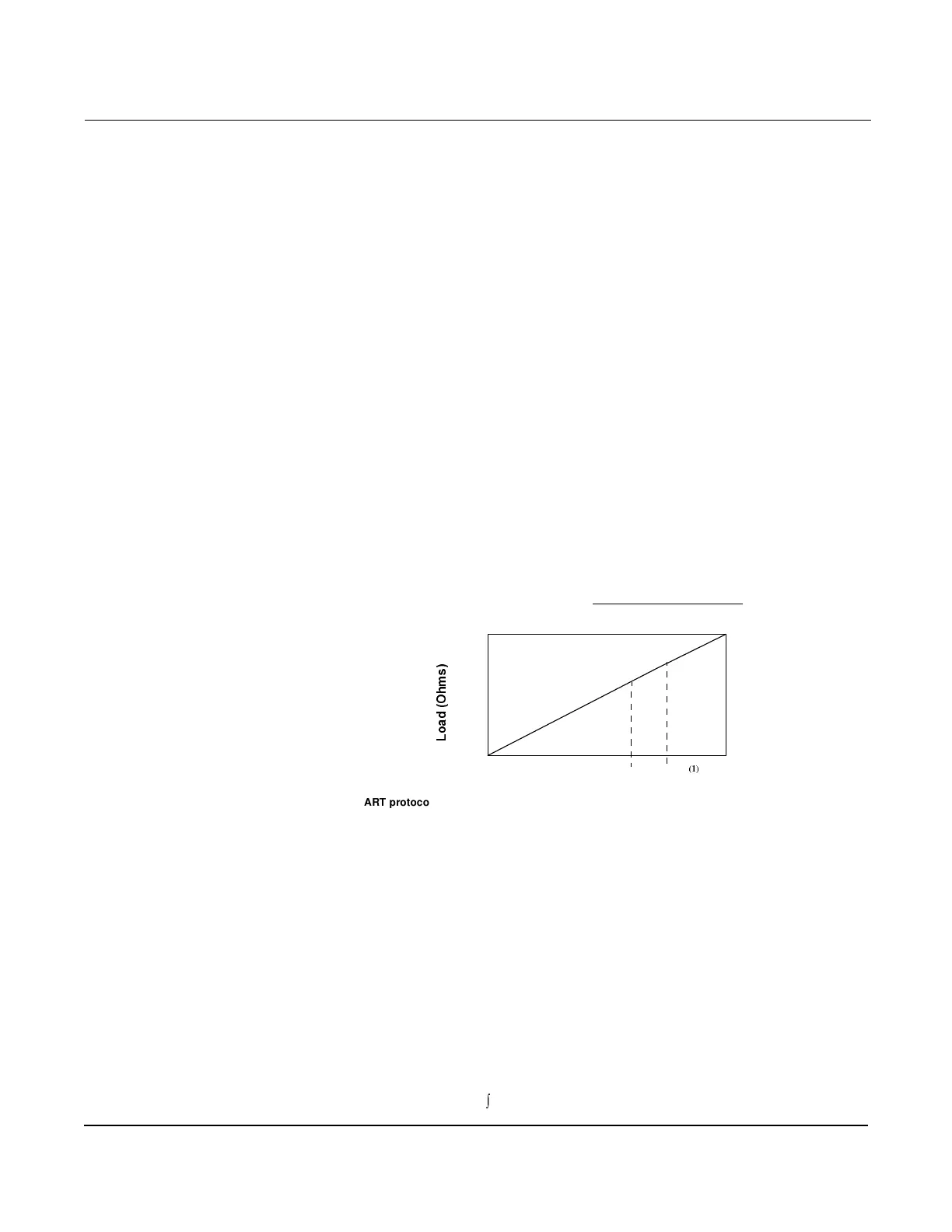

4–20mA Load Limitations
Maximum loop resistance is determined by the voltage level of the
external power supply, as described in the following flowmeter chart.
Temperature Limits
Storage:
–50 to 230°F (–46 to 110°C).
With Integral Meter:
–40 to 185°F (–40 to 85°C).
Process:
Integral Mount
–40 to 450°F (–40 to 232°C).
(1) Fluid density and Reynolds number corrections should be compensated per DSI
Annubar Handbook Equation #2.1–2.5.
(2) Consult the factory for line sizes greater than 72 in. Multipoint calibration is available for
line sizes between
×
to 36 in. Consult the factory for calibration ranges in larger line sizes.
1935
0
10.5
4–20 mA dc
55
/
R
D
G
2
K
P
V
HART protocol communication requires a loop resistance value between 250–1100 ohms, inclusive
Max. Loop Resistance = Power Supply Voltage–11.0
0.022
Power Supply Voltage V dc
35
(1) For CSA approval, power supply must not exceed 42.4 V dc.
Operating Region
42.4 V
(1)
