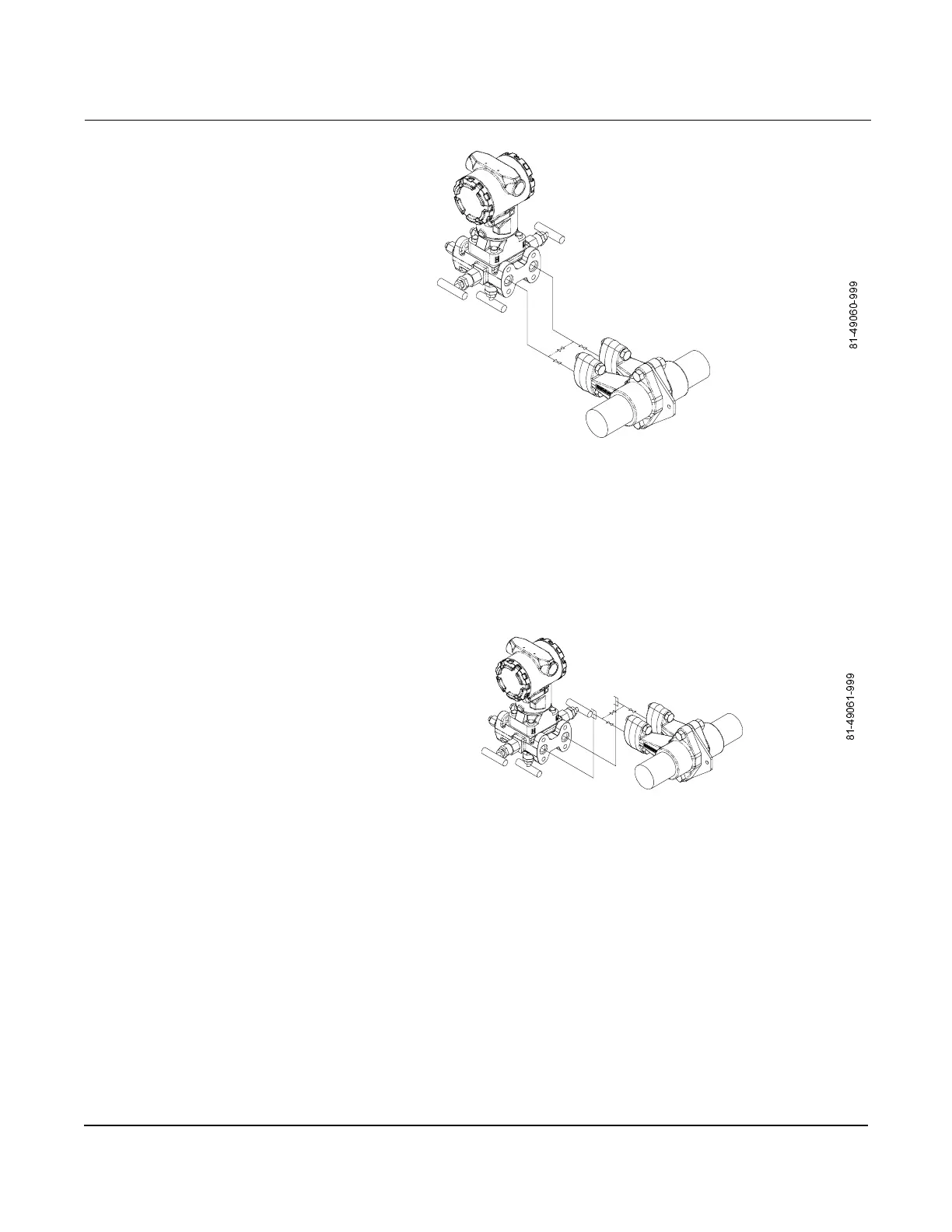

Figure 2-6.
Gas Service in a Horizontal Pipe.
Steam Service in a Horizontal Pipe
Install the Model 1195 with the transmitter below to prevent air from
becoming entrapped within the meter section. Figure 2-7 illustrates the
recommended location for the Model 1195 when used with steam
service.
Figure 2-7.
Steam Service in a Horizontal Pipe.
Liquid Service in a Vertical Pipe
The Model 1195 can be installed anywhere around the circumference of
the pipe, as shown in Figure 2-8. The transmitter should always be
remote mounted below the meter assembly.
