6-9

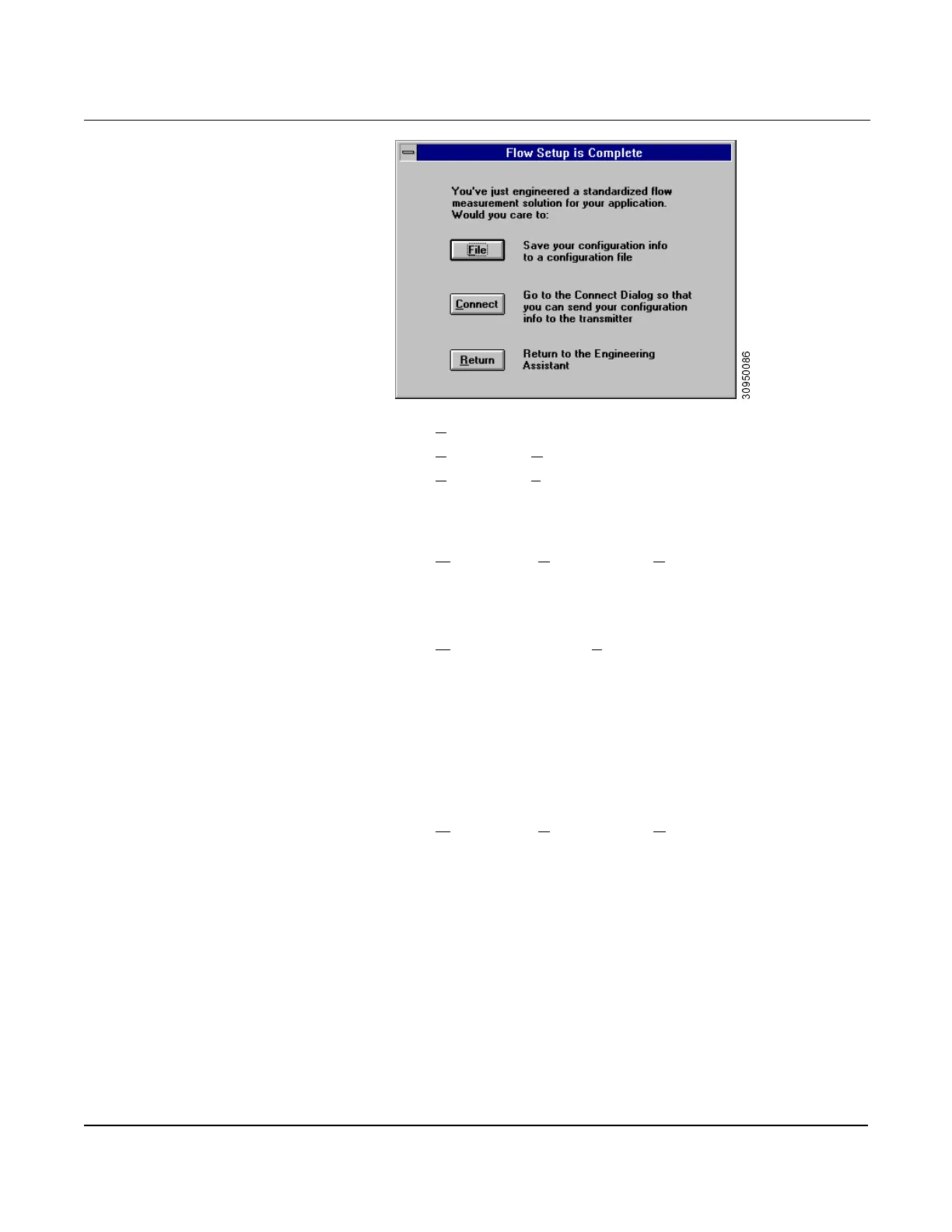

7. Select File to save your configuration to disk.
8. Select T
ransmitter, Connect to connect to a transmitter.
9. Select T
ransmitter, Send Config to sent the configuration.
Bench Calibration
Procedure
After a transmitter is bench configured, the transmitter can be
bench calibrated.
1. Select M
aintenance, Analog Output, Range Values...
a. Select Assign Variables, then verify the process
variable output order.
b. Set the range values and units.
2. Select M
aintenance, Sensor Trim..., then perform sensor
trim procedures:
a. Trim SP Offset (zero).
b. Trim SP Slope (span).
c. Trim DP Offset (zero).
d. Trim DP Slope (span).
e. Trim PT Offset (zero).
f. Trim PT Slope (span).
3. Select M
aintenance, Analog Output, Output Trim..., then perform
the output trim procedures.
Field Calibration Procedure To correct for mounting position effects, field calibrate the Mass
ProPlate after installation:
1. Establish communications (see page 6-5).
2. Perform a Trim DP Offset (zero).
3. (Optional) If a barometer that is three times as accurate as the
Mass ProPlate AP sensor is available, perform an SP Offset (zero).
