Rosemount Model 1195/ProPlate/Mass ProPlate
2-18

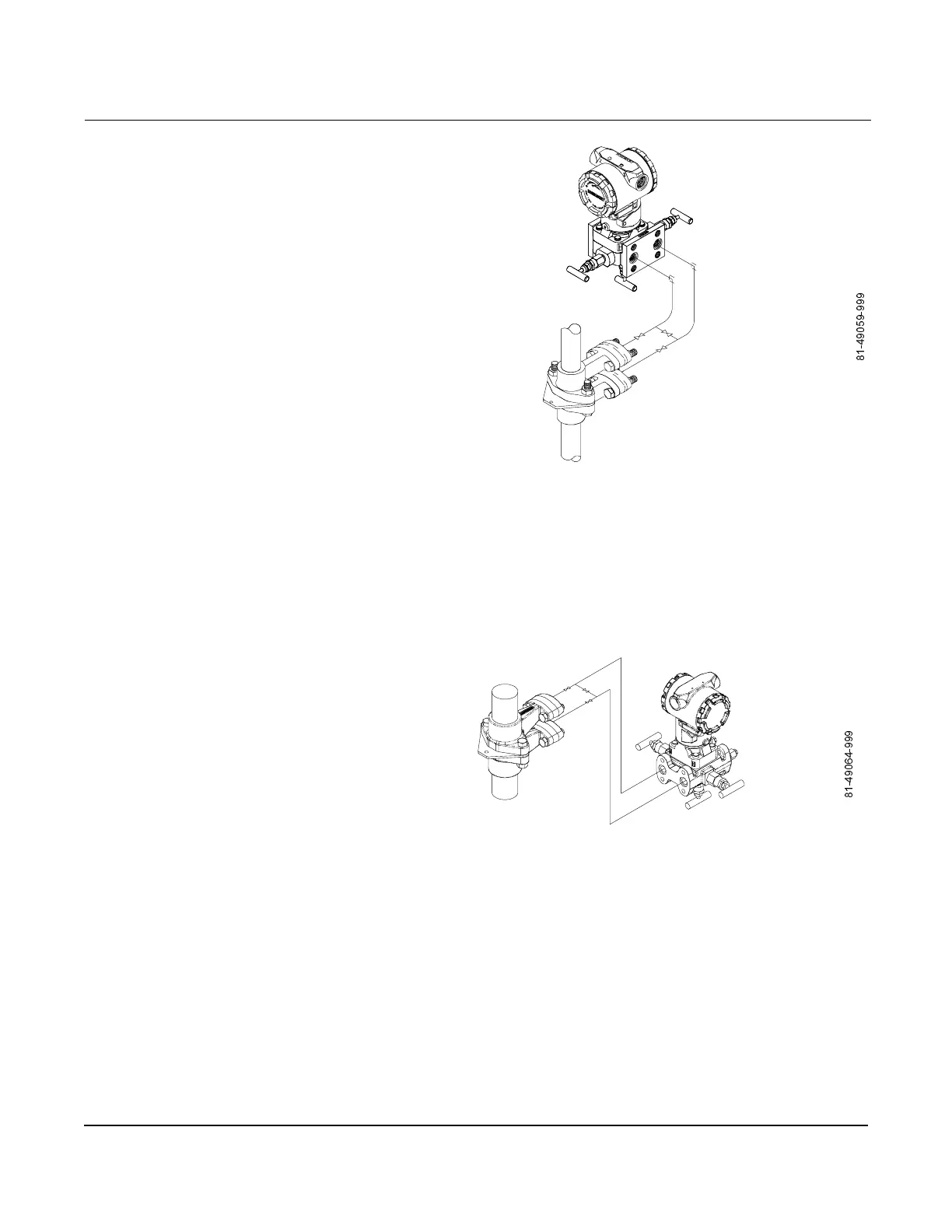

Figure 2-21.
Gas Service in a Vertical Pipe.
Steam Service in a Vertical Pipe
The Mass ProPlate can be installed anywhere around the
circumference of the pipe, as shown in Figure 2-22.
• Mass ProPlate electronics must be remote mounted when used
with steam service in a vertical pipe. See Section 5: Electronics
Functions for instructions.
Figure 2-22.
Steam Service in a Vertical Pipe.
REMOTE MOUNTING
CONNECTIONS ONLY
This section provides remote mounting installation instructions for the
ProPlate electronics for liquid, gas or steam service in either horizontal
or vertical pipes.
Figures 2-23 through 2-25 illustrate how the ProPlate sensor should be
aligned for a specific service and pipe orientation prior to remote
mounting.
