2-11

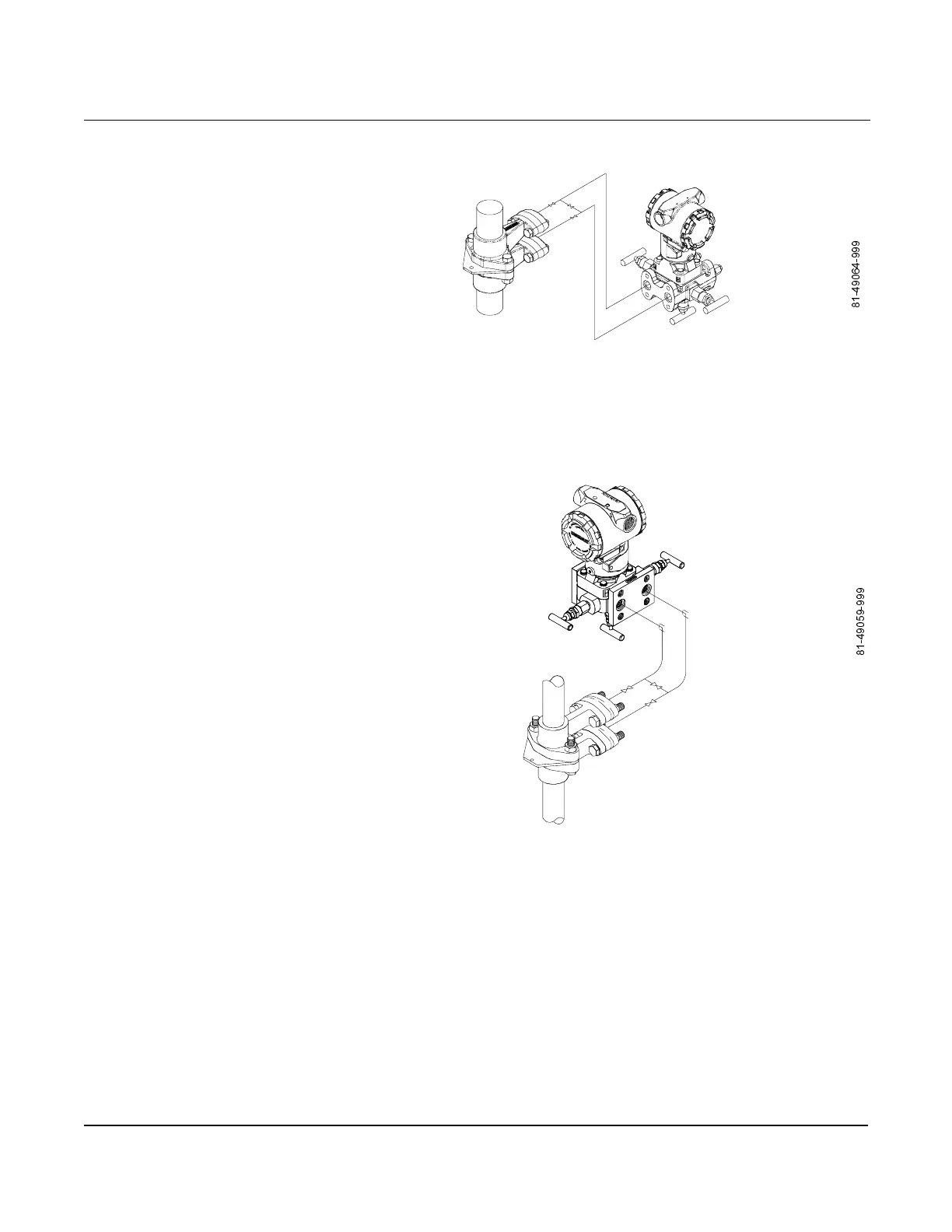

Figure 2-8.
Liquid Service in a Vertical Pipe.
Gas Service in a Vertical Pipe
The Model 1195 can be installed anywhere around the circumference of
the pipe, as shown in Figure 2-9. The transmitter should always be
remote mounted above the meter assembly.
Figure 2-9.
Gas Service in a Vertical Pipe.
Steam Service in a Vertical Pipe
The Model 1195 can be installed anywhere around the circumference of
the pipe, as shown in Figure 2-10. The transmitter should always be
remote mounted below the meter assembly.
