Rosemount Model 1195/ProPlate/Mass ProPlate
6-52
Diagnostics Test Calculation...
The test calculations screen provides a method to view the Mass
ProPlate mass flow calculations for the current process variables.
Optionally, the system administrator can enter process variable values,
and then view the calculation results.
NOTE
Since the test calculation procedure actually changes flow and output
values during the test, the control loops should be put into manual
mode for the duration of the test.
NOTE
The test calculation results displayed by this screen are calculated in
the attached transmitter, not the EA.
In addition, the calculation update time for this screen is not indicative
of the actual transmitter update rate. (The Mass ProPlate sensor
update rate is nine times per second.)

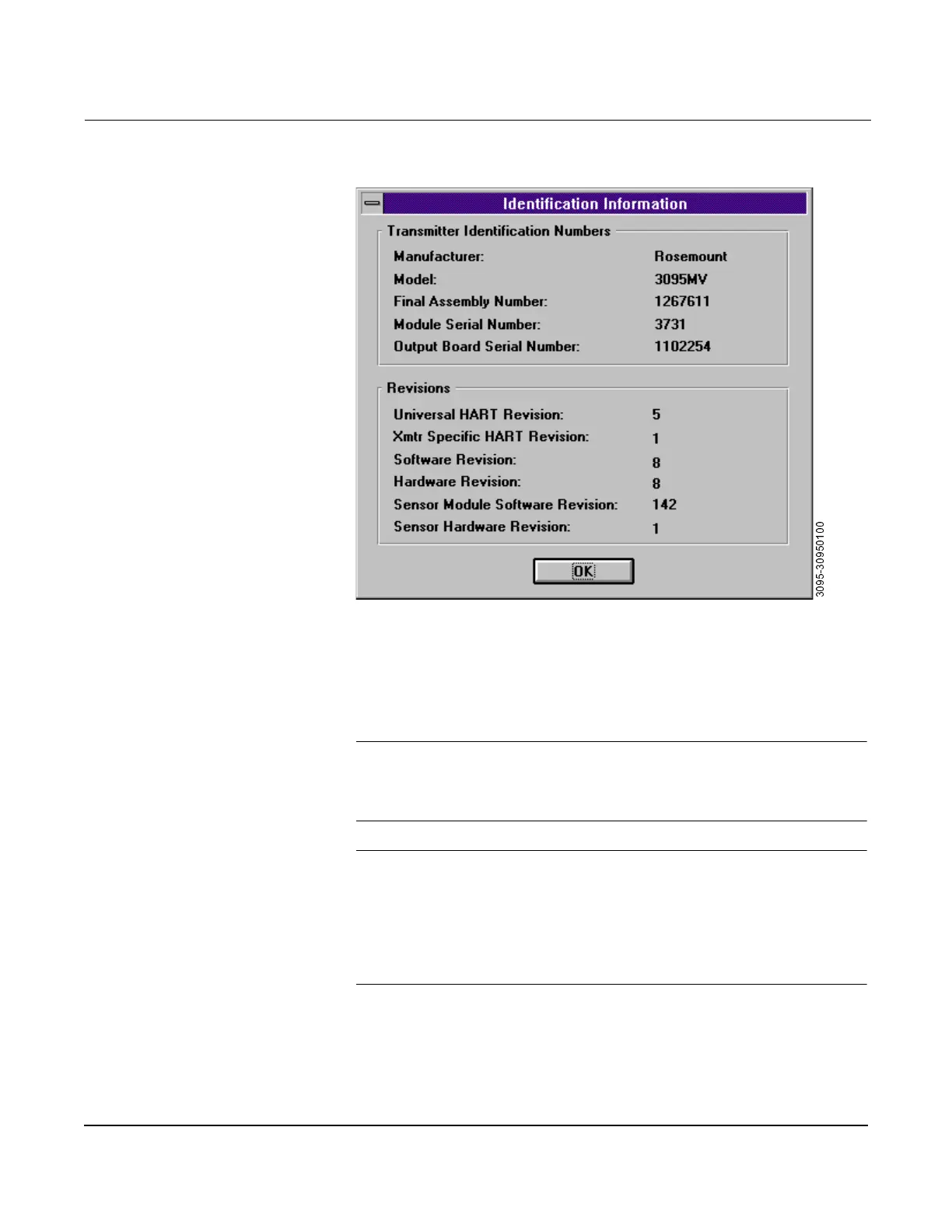

Figure 6-51.
Identification Info Screen.
