2-13

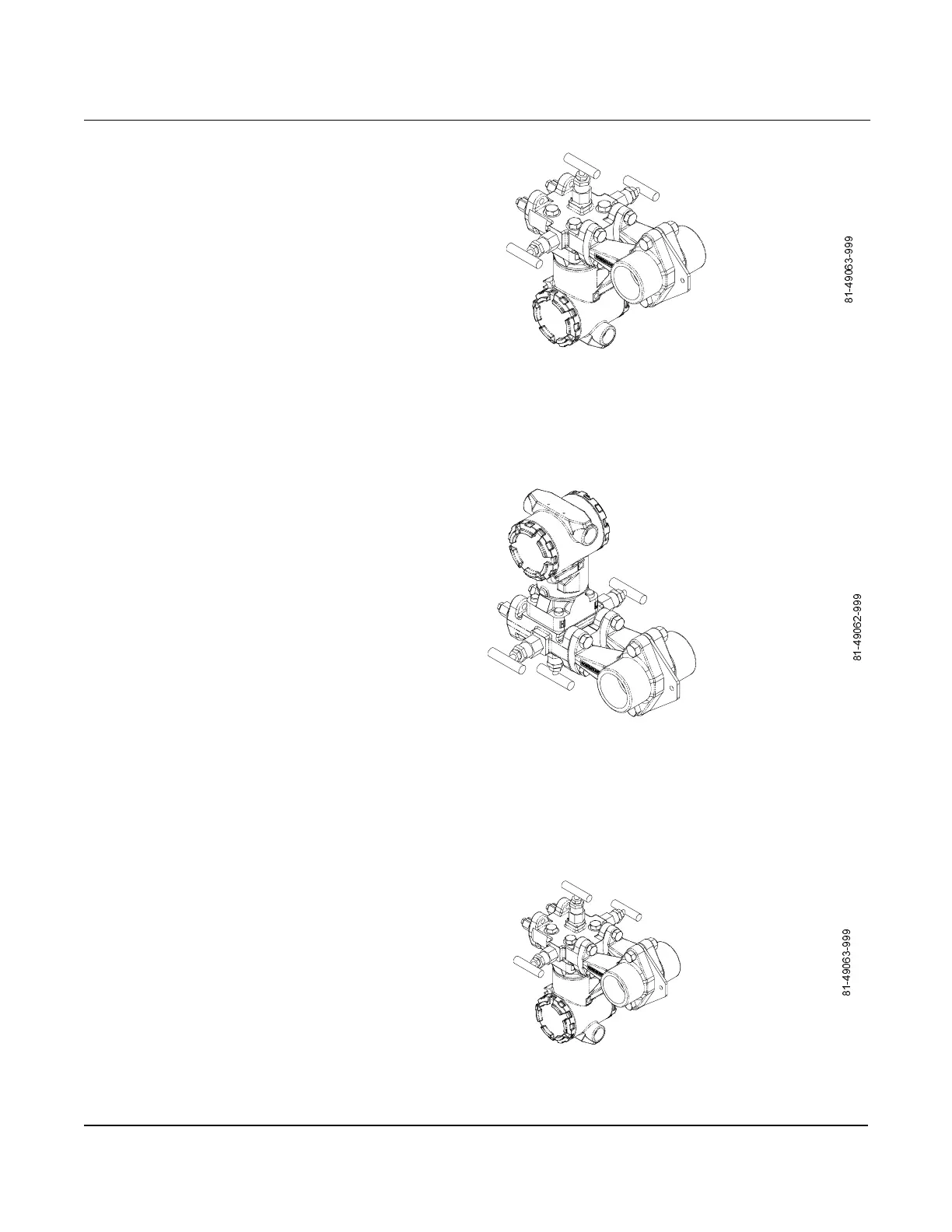

Figure 2-11.
Liquid Service in a Horizontal Pipe.
Gas Service in a Horizontal Pipe
Install the ProPlate with the transmitter facing up as shown in Figure
2-12. This orientation will prevent condensate from becoming
entrapped in the meter assembly.
Figure 2-12.
Gas Service in a Horizontal Pipe.
Steam Service in a Horizontal Pipe
Install the ProPlate with the transmitter facing down to prevent air
from becoming entrapped within the meter section. Figure 2-13
illustrates the recommended location for the ProPlate when used with
steam service.
Figure 2-13.
Steam Service in a Horizontal Pipe.
