Rosemount Model 1195/ProPlate/Mass ProPlate
2-14

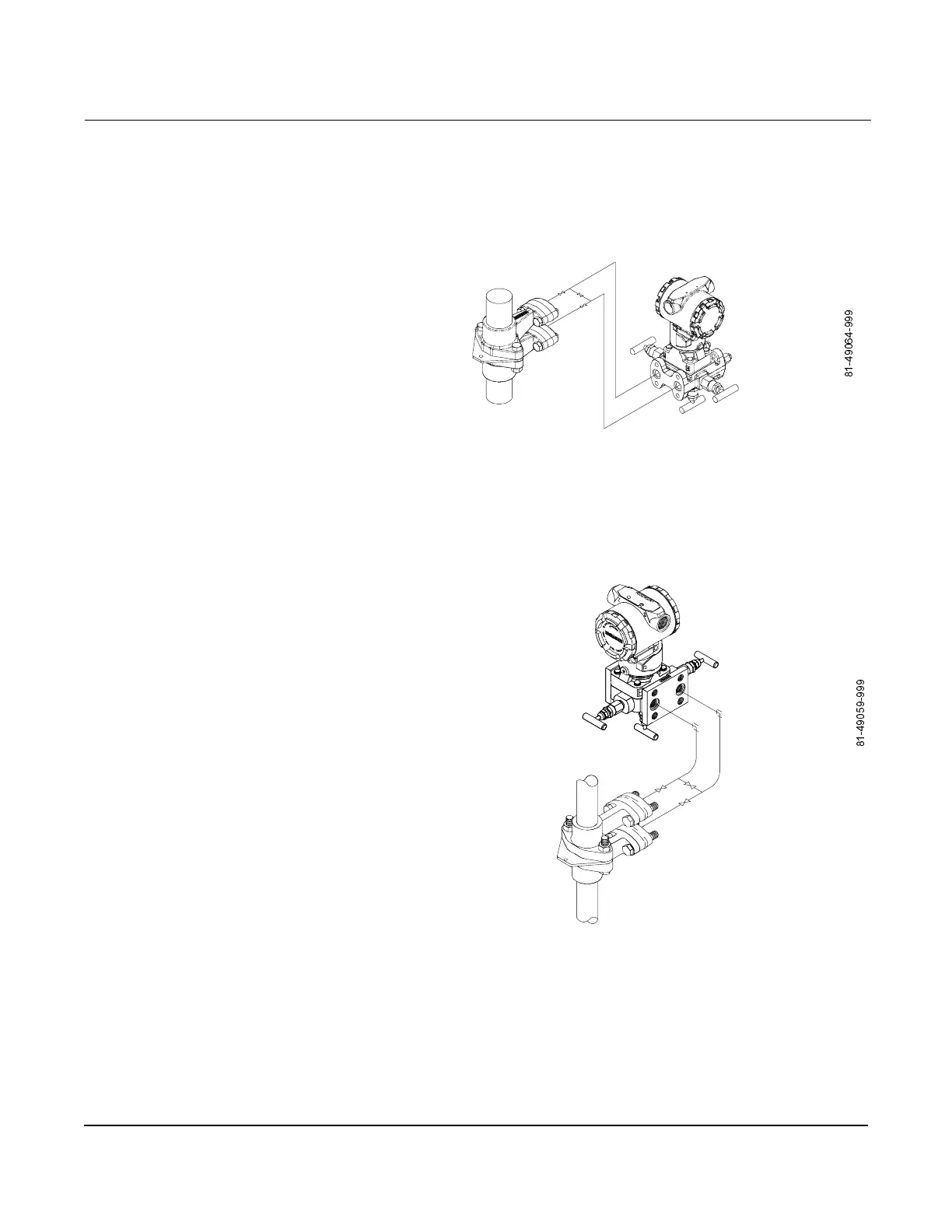

Liquid Service in a Vertical Pipe
The ProPlate can be installed anywhere around the circumference of
the pipe, as shown in Figure 2-14. The transmitter should always be
remote mounted below the meter assembly.
Figure 2-14.
Liquid Service in a Vertical Pipe.
Gas Service in a Vertical Pipe
The ProPlate can be installed anywhere around the circumference of
the pipe, as shown in Figure 2-15. The transmitter should always be
remote mounted above the meter assembly.
Figure 2-15.
Gas Service in a Vertical Pipe.
Steam Service in a Vertical Pipe
The ProPlate can be installed anywhere around the circumference of
the pipe, as shown in Figure 2-16. The transmitter should always be
remote mounted below the meter assembly.
