Rosemount Model 1195/ProPlate/Mass ProPlate

6-50

Diagnostics Screens Diagnostics Read Outputs...

This selection displays the current process variable values as

illustrated in Figure 6-49. This screen continuously updates with

current data. To exit this screen, select Ok.

Figure 6-48.

Process Temperature (PT)

Mode Screen.

























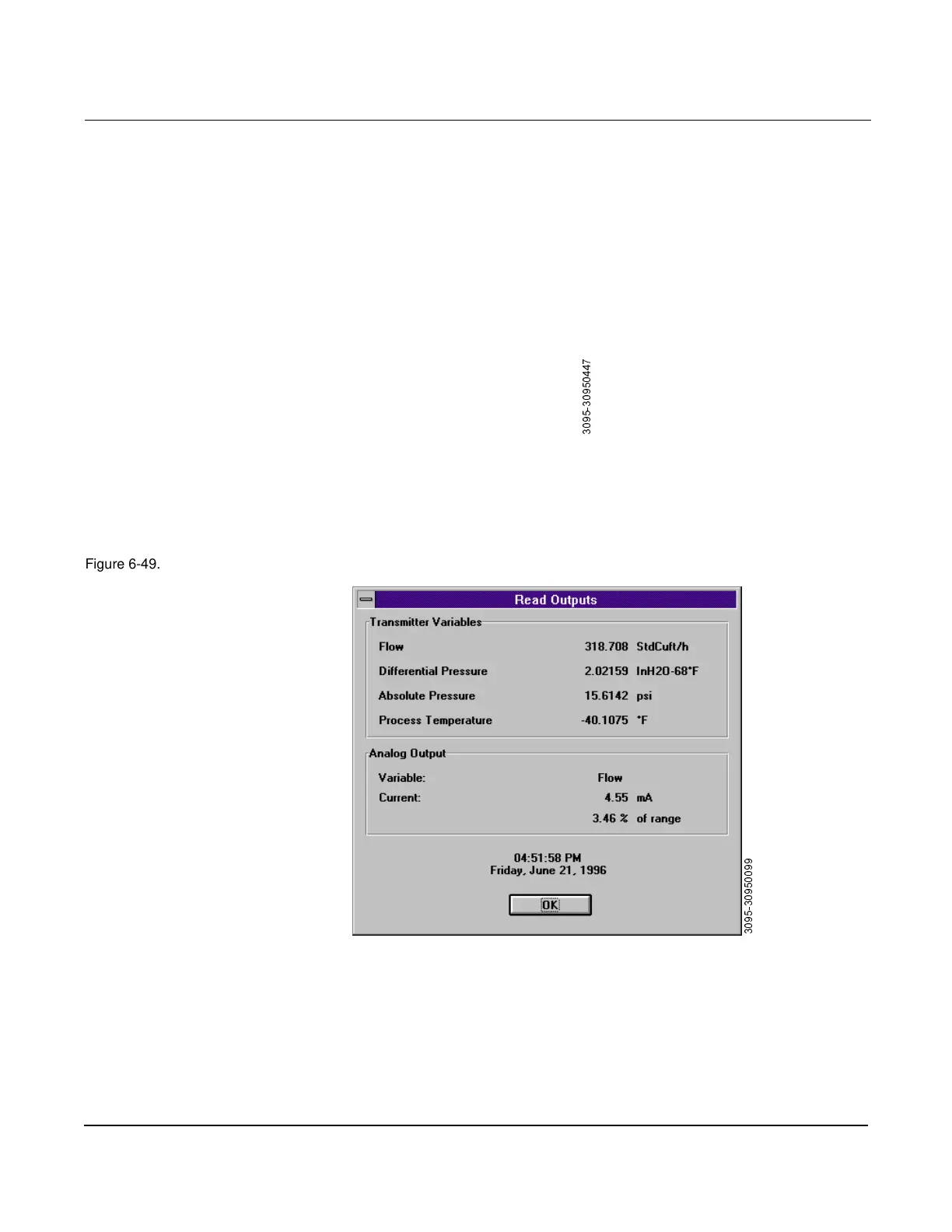

Figure 6-49.

Read Outputs Screen.
























