Rosemount Model 1195/ProPlate/Mass ProPlate
2-12

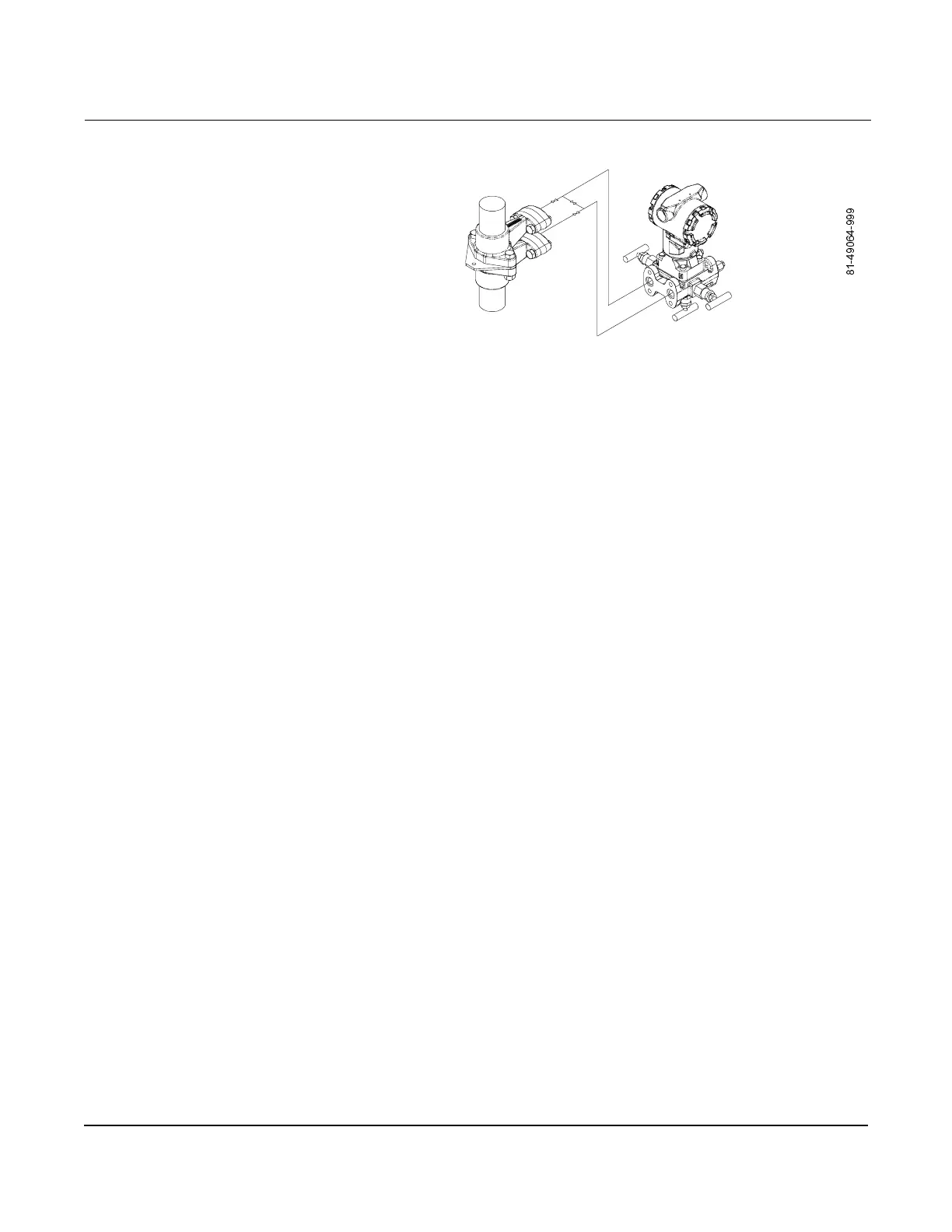

Figure 2-10.
Steam Service in a Vertical Pipe.
PROPLATE FLOWMETER This section provides hardware installation instructions for the
Threaded, Welded, and Flanged ProPlate models used in either a
horizontal or vertical pipe.
If remote mounting of the electronics is required, use this section for
hardware installation. Then, see Section 5: Electronics Functions for
electronics installation.
• The direct mount maximum service temperature is 450°F
(232°C).
• The electronics must be remote mounted when service
temperatures exceed 450°F (232°C).
ProPlate Configurations The ProPlate flowmeter series comes pre-assembled and requires only
installation into a service pipe. General installation instructions
are as follows.
1. Remove appropriate length of process pipe for meter section.
2. Insure process connections match the meter section to be installed.
3. Connect the meter assembly to the process connection and orient
the transmitter as shown in the installation diagram.
4. Tighten the process connections.
Liquid Service in a Horizontal Pipe
Install the ProPlate with the transmitter facing down to prevent air
from becoming entrapped within the meter assembly. Figure 2-11
illustrates the recommended location for the ProPlate when used with
liquid service.
