Rosemount Model 1195/ProPlate/Mass ProPlate
2-26
Horizontal Pipes
For horizontal steam process piping, the electronics are mounted below,
as shown in Figure 2-31. Route impulse piping down to the ProPlate
electronics. Fill the system with cool water.

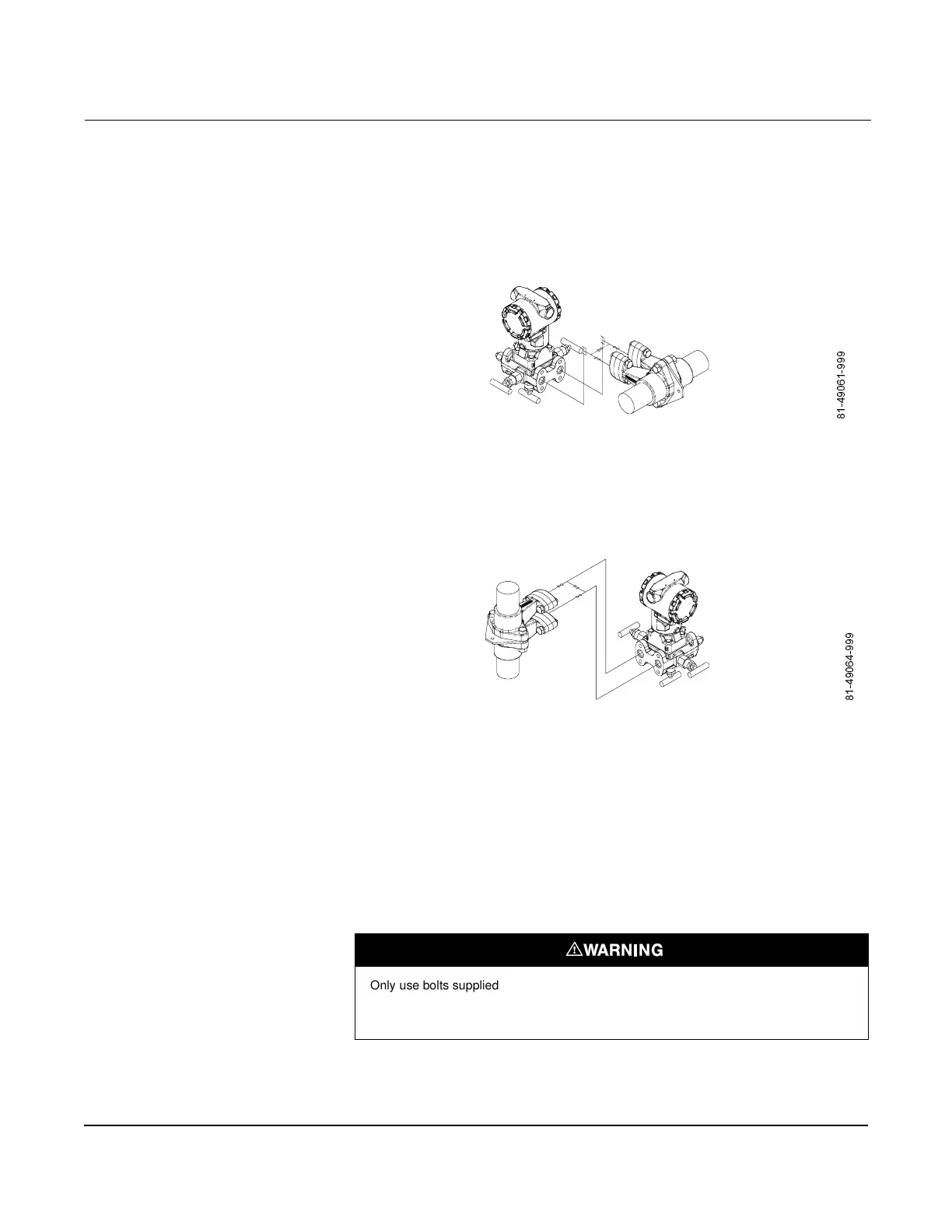

Figure 2-31. Electronics Installation for
Steam or Liquid Service above 450°F
(232°C) in a Horizontal Pipe.
Vertical Pipes
For steam service in a vertical pipe, mount the electronics below the
proplate
Figure 2-32. Electronics Installation for
Steam or Liquid Service above 450°F
(232°C) in a Vertical Pipe.
Mounting Brackets Optional mounting brackets available with the Mass ProPlate facilitate
mounting to a panel, wall, or 2-inch pipe. The bracket option for use
with the Coplanar flange is 316 SST with 316 SST bolts. Figure 2-33
shows bracket dimensions and mounting configurations for this option.
When installing the transmitter to one of the mounting brackets,
torque the bolts to 125 in-lb (169 n-m).
MOUNTING BOLTS The following guidelines have been established to ensure a tight flange,
adapter, or manifold seal.
Bolt Installation
Only use bolts supplied with the ProPlate/Mass ProPlate or sold by Rosemount
Inc. as spare parts for the ProPlate/Mass ProPlate. Use the following bolt
installation procedure:
