Receiving and Inspection ProPlate/Mass ProPlate flowmeters are available in different models
and with different options, so it is important to inspect and know which
model you have before beginning installation.
Upon receipt of the shipment, check the packing list against the
material received and the purchase order. All items are tagged with a
model number, serial number, and customer tag number. Report any
damage to the carrier.
ProPlate/ Mass ProPlate
Configurations
The ProPlate/Mass ProPlate is available in a variety of mounting
configurations and has two methods of electronic mounting: integral
mount (or, direct mount) and remote mount. An integrally-mounted
ProPlate/Mass ProPlate may be shipped with the electronics already
bolted directly to the sensor.

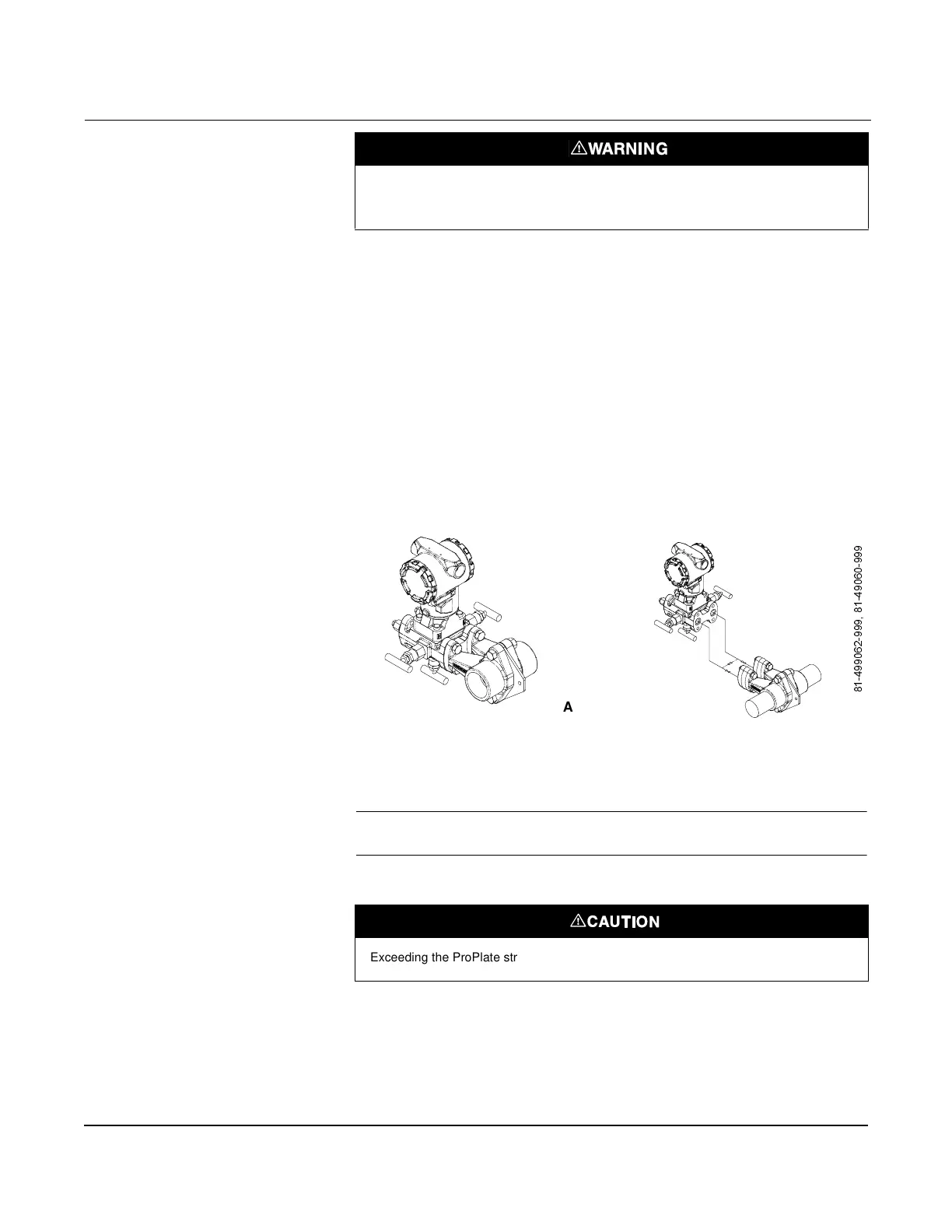

Figure 2-4.
ProPlate Mounting Configuration
Examples: A (Integral Mount)
and B (Remote Mount).
The ProPlate/Mass ProPlate may be purchased as a flow calibrated unit
for enhanced accuracy and turndown, or as a non-flow calibrated unit.
The flow calibrated units are identified by the model callout.
NOTE
Replacing the electronics may affect performance.
Structural Limitations
Structural limitations can be found in Table 10-1 on page 10-2.
Failure to follow these installation guidelines could result in death or serious injury:
• Make sure only qualified personnel perform the installation.
B
A
Exceeding the ProPlate structural limitations may cause the sensor to fail.
