Rosemount Model 1195/ProPlate/Mass ProPlate
2-16

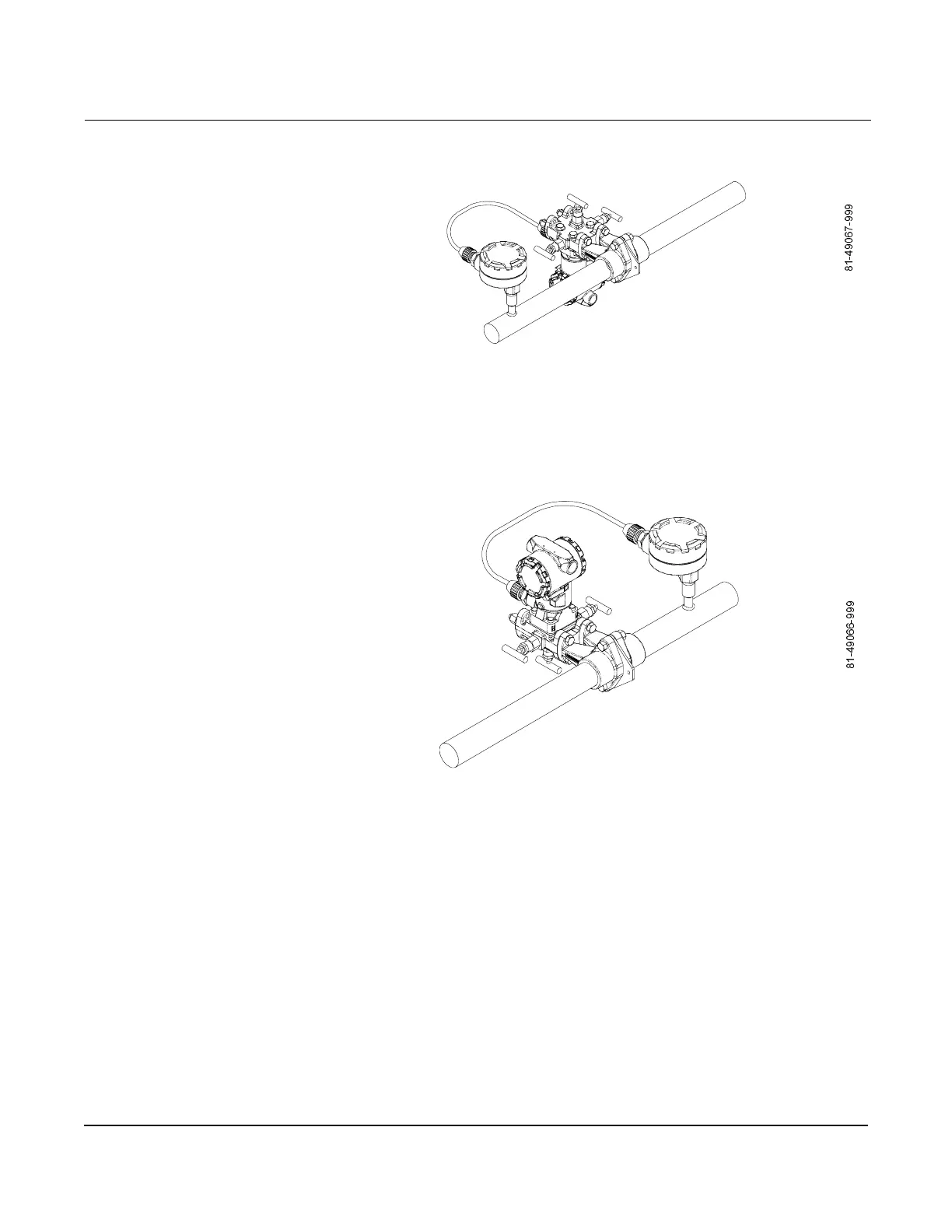

Figure 2-17.
Liquid Service in a Horizontal Pipe.
Gas Service in a Horizontal Pipe
Install the Mass ProPlate with the transmitter facing up as shown in
Figure 2-18. This orientation will prevent condensate from becoming
entrapped in the meter assembly.
Figure 2-18.
Gas Service in a Horizontal Pipe.
Steam Service in a Horizontal Pipe
Install the Mass ProPlate with the transmitter facing down to prevent
air from becoming entrapped within the meter section. Figure 2-19
illustrates the recommended location for the Mass ProPlate when used
with steam service.
